Throttle Opener Operating Speed
- Connect tachometer to engine and warm engine to normal operating temperature. Set engine idle speed to specifications. Turn air conditioner and accessories off. On front-wheel drive models, disconnect engine cooling fan.

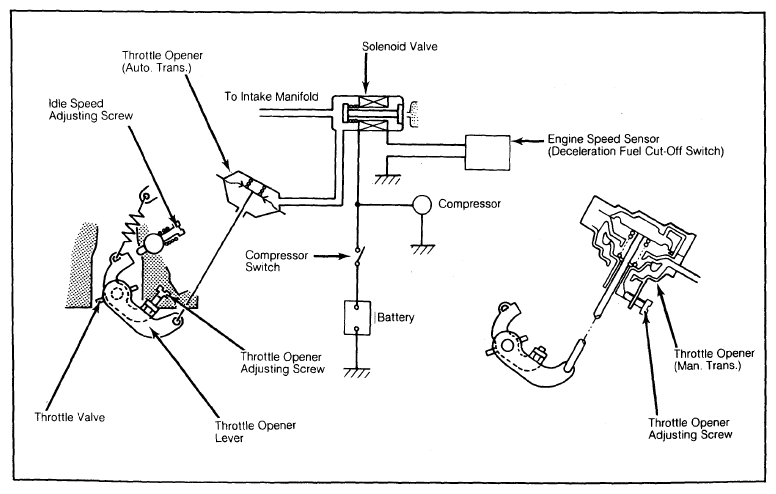

- Activate throttle opener (air conditioning "ON") and adjust throttle opener speed to operating speed RPM by turning throttle opener adjusting screw. See Fig. 1.
- With throttle opener speed set to specification, turn air conditioner "OFF" and recheck idle speed. Normal engine idle speed should not be affected when throttle opener is not activated.THROTTLE OPENER SPECIFICATIONS
Application Operating Speed (RPM) 1.4L & 1.6L Engines Man. Trans. 800-900 Auto. Trans. 850-950 2.0L & 2.6L Engines 850-950
