When engine speed sensor detects 1500-2500 RPM, it deactivates coasting air valve by opening solenoid valve. This maintains smooth vehicle operation during engine mode transient stage and prevents engine stalling.

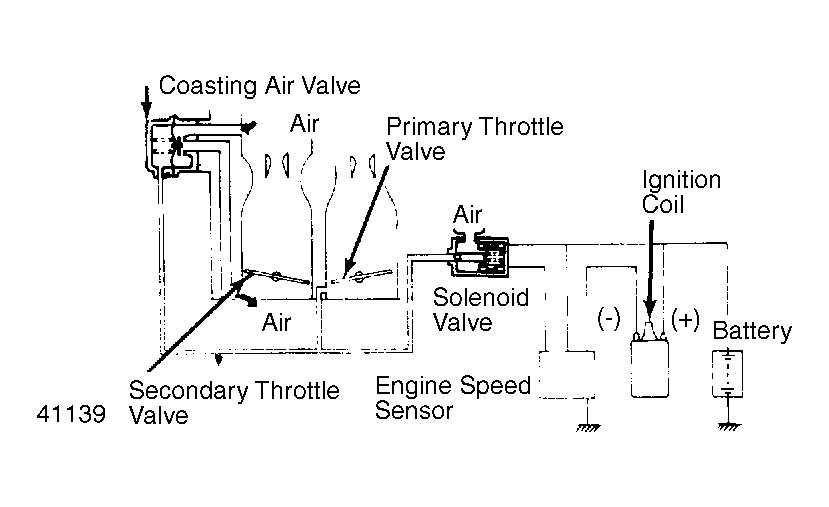

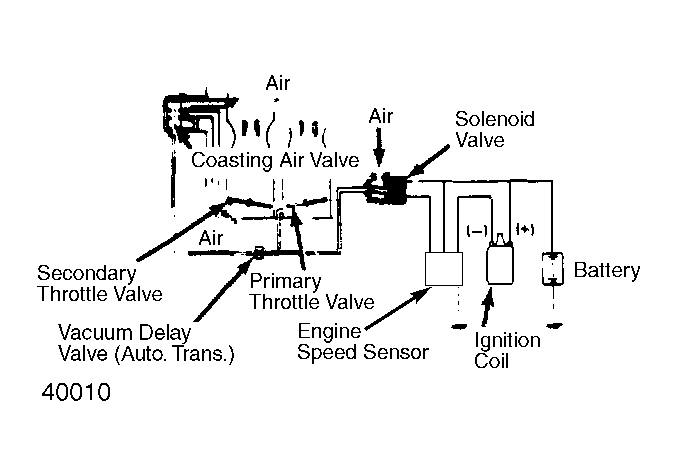

Fig 1: Coasting Air Valve Note flow direction and connections.
