Control Units

CONTROL UNITS LOCATION

Component Location

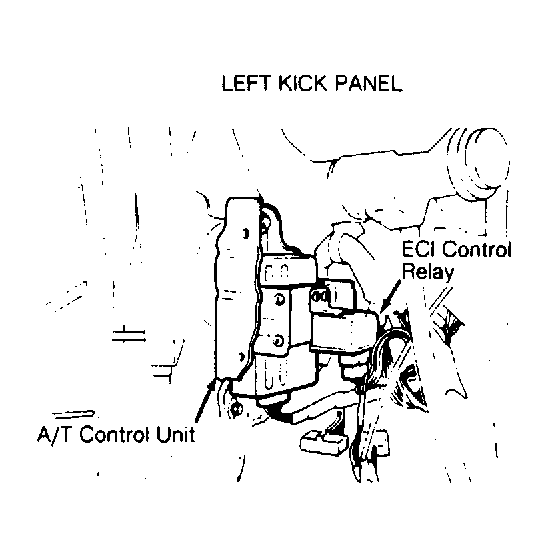

A/T Control Unit On left kick panel. See Figure .

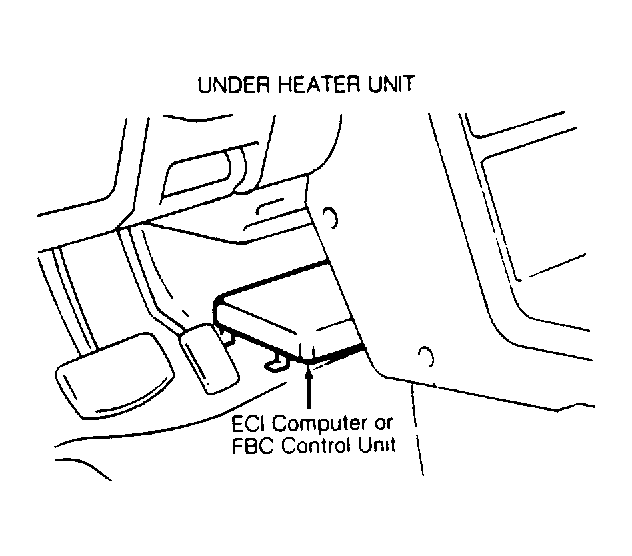

Electronic Controlled Injection (ECI) Computer Under heater unit. See Figure .
Feedback Carburetor Control (FBC) Unit Under heater unit. See Figure .
