Fuel Injected

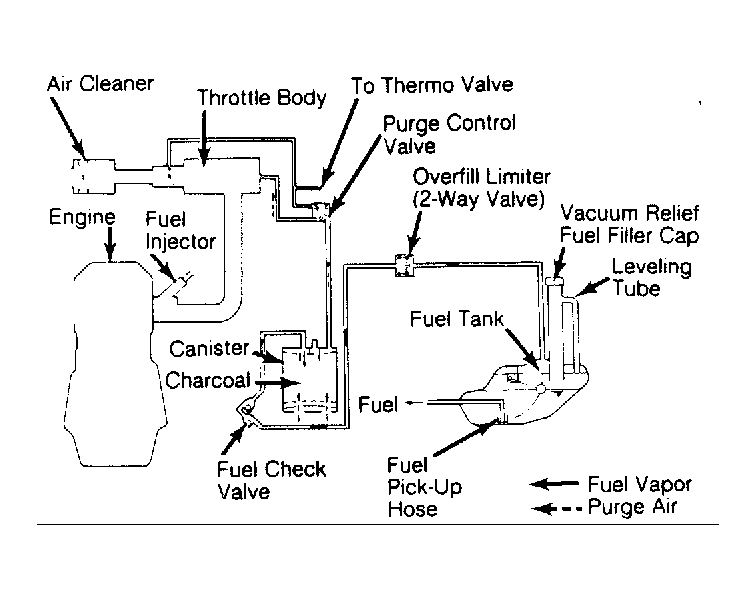

- Disconnect hoses from purge control valve and remove valve. On all except Colt Vista, Van and Wagon models, apply 7.8 in. Hg to top vertical nipple of purge control valve. On Colt Vista, Van and Wagon models, apply 7.8 in. Hg to bottom nipple of purge control valve. See Figure
. Blow into purge control valve's port to canister and check that air flows through valve. Replace valve if it does not operate as outlined.
- With vacuum applied, disconnect electrical connector and apply battery voltage to solenoid connectors. Vacuum should leak off when voltage is applied. Using an ohmmeter, check resistance across solenoid terminals. Reading should be 36-44 ohms at 68°F (20°C).
Courtesy of CHRYSLER MOTORS.
