Ch-3, Checking For Fault Code 46

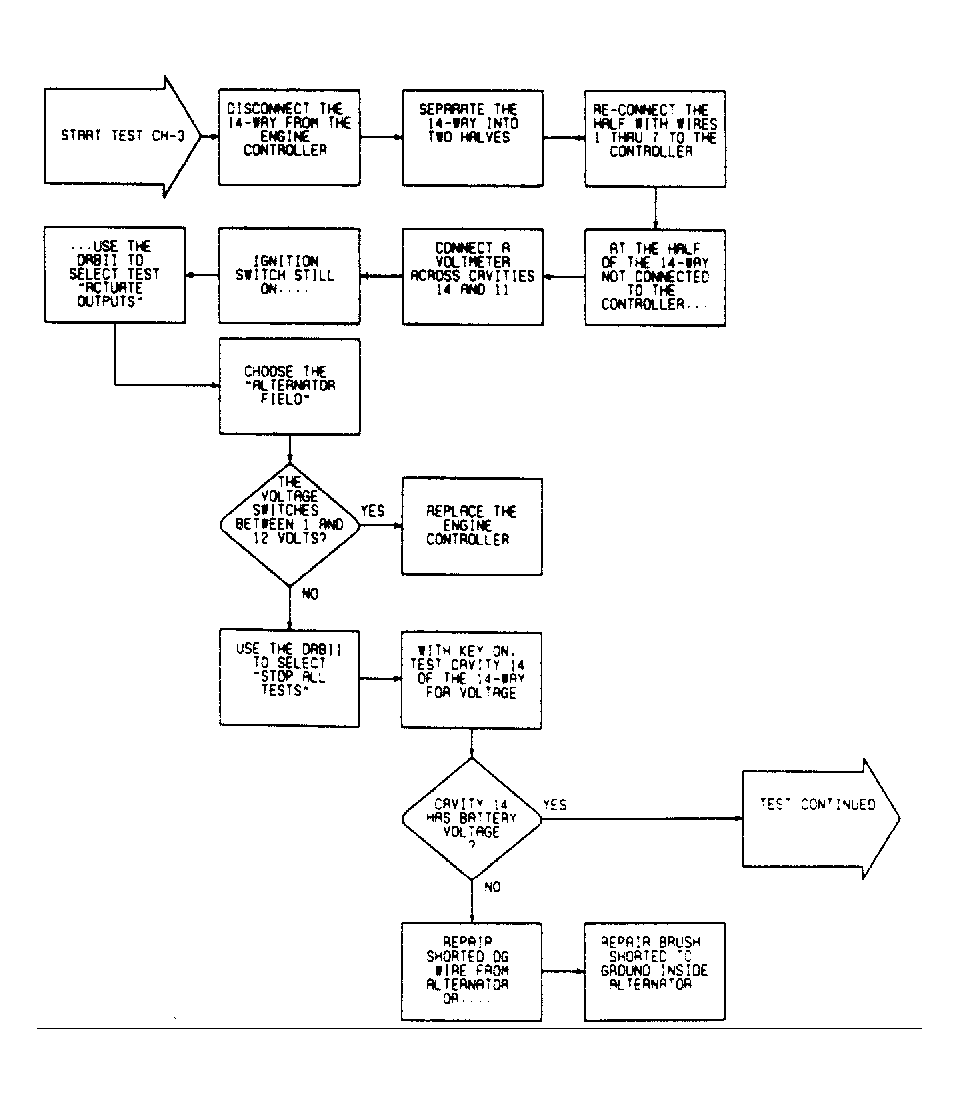

Fig 1: CH-3, Checking For Fault Code 46 (1 of 2)

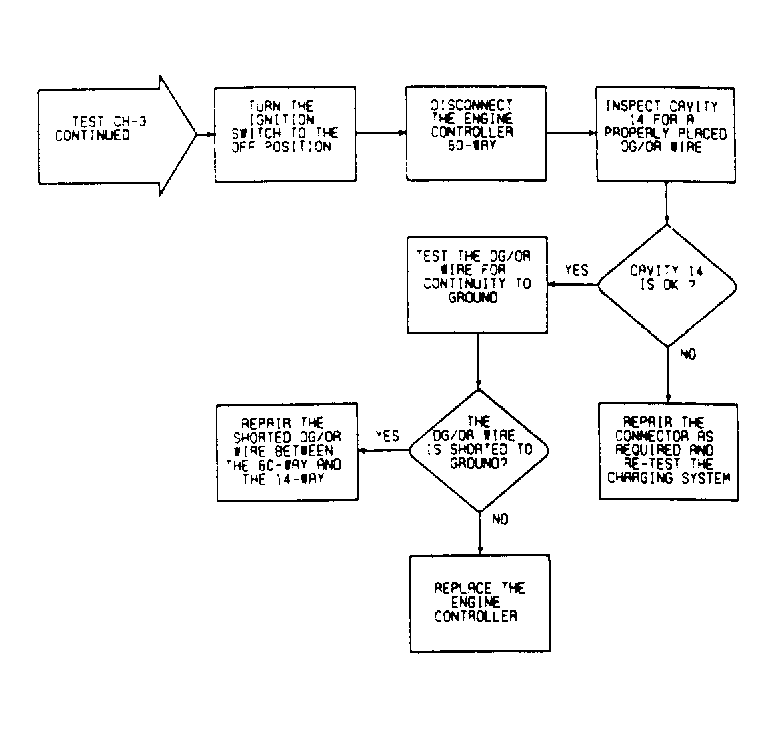

Fig 2: CH-3, Checking For Fault Code 46 (2 of 2)
