Dr-29, Checking Sensor Calibrations With Engine Cold

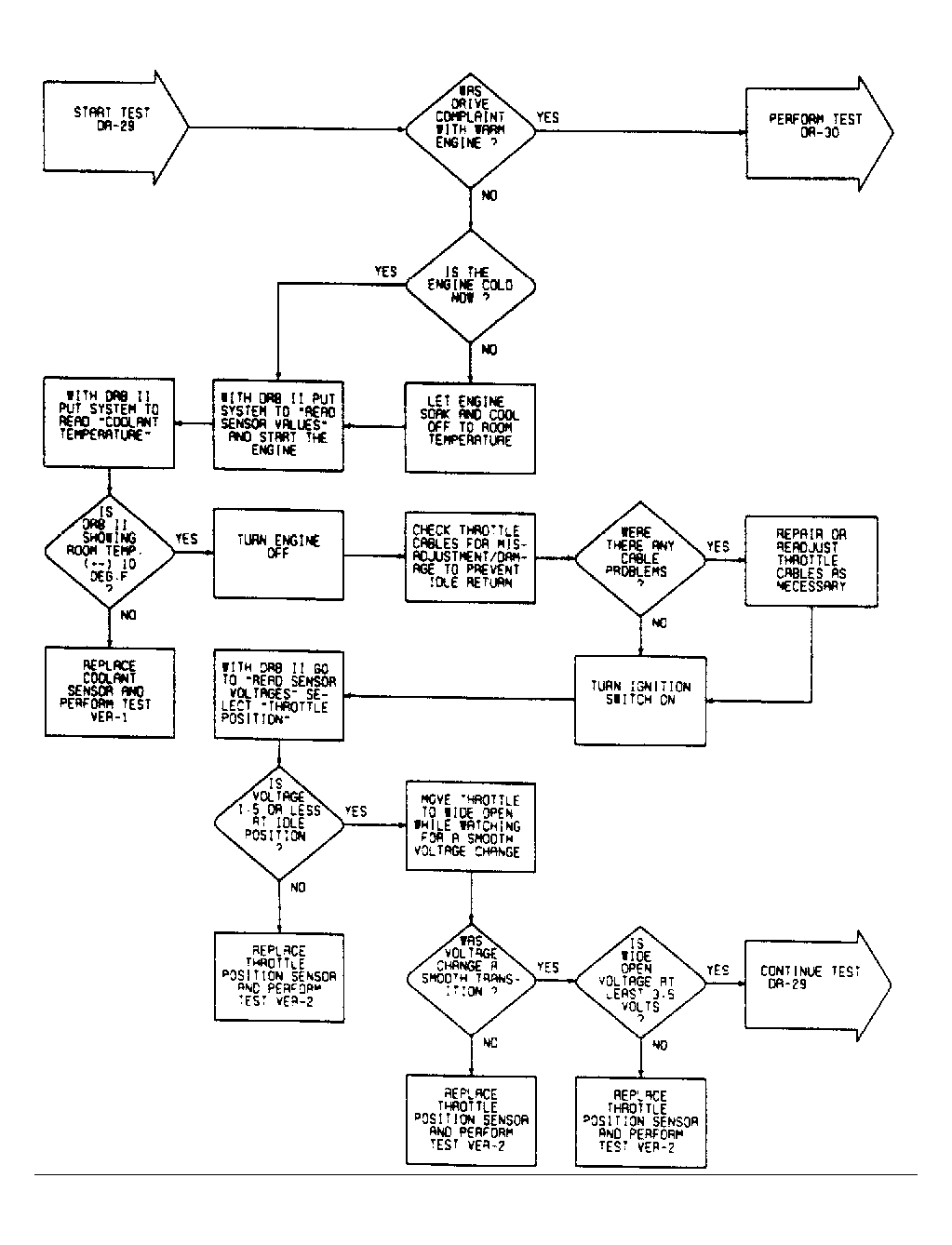

Fig 1: DR-29, Sensor Calibrations With Engine Cold (1 of 6) Check

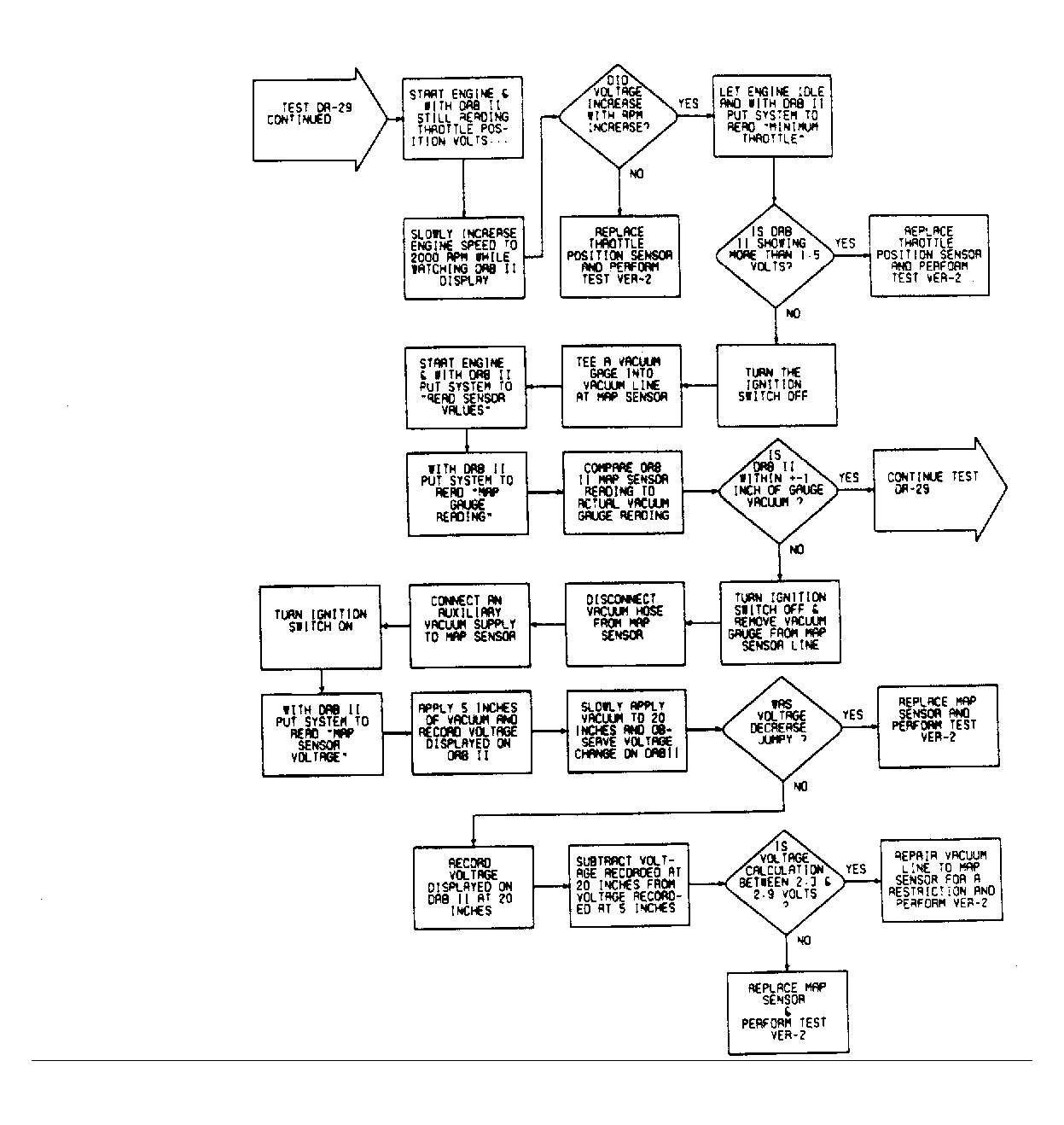

Fig 2: DR-29, Sensor Calibrations With Engine Cold (2 of 6) Check

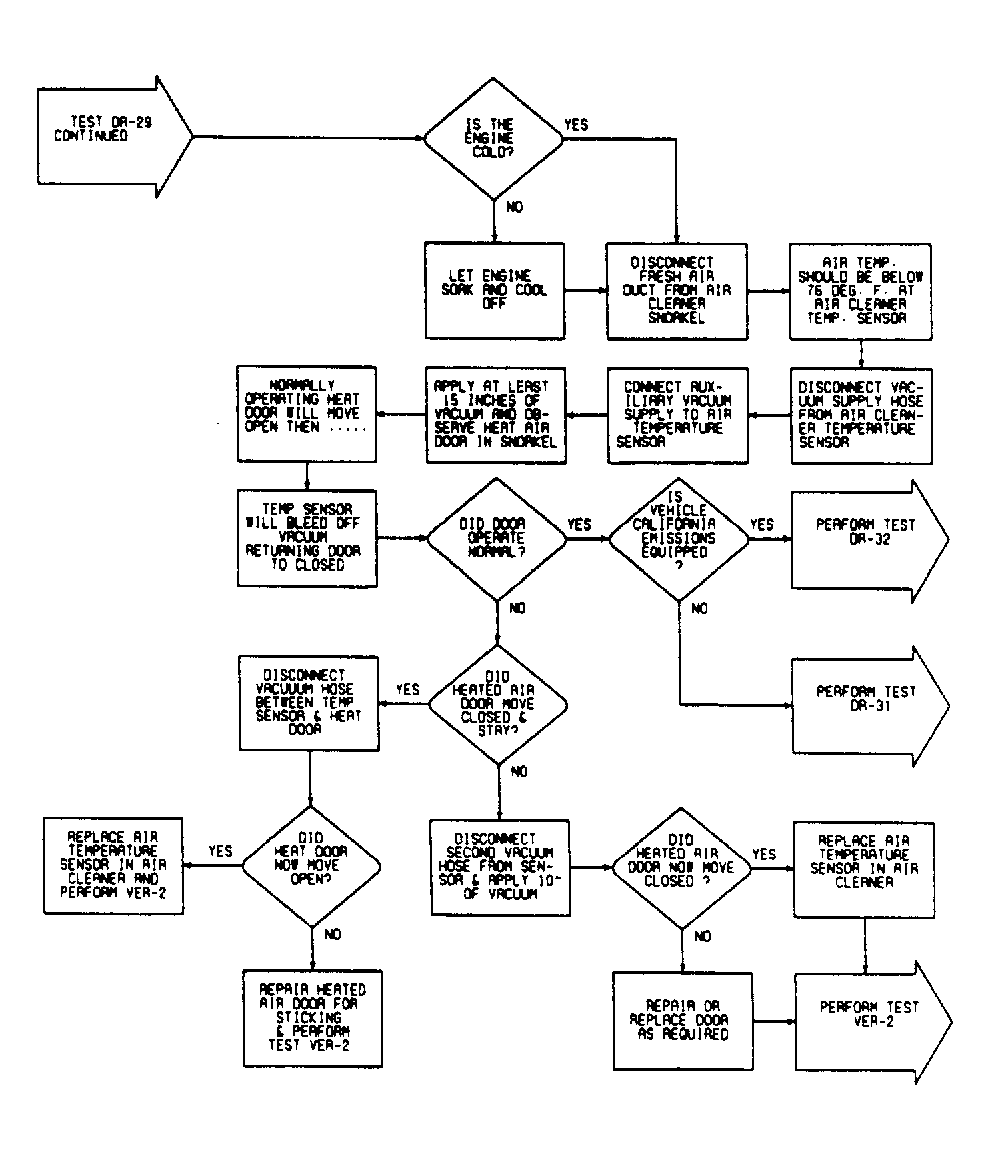

Fig 3: DR-29, Sensor Calibrations With Engine Cold (3 of 6) Check

Fig 4: DR-29, Sensor Calibrations With Engine Cold (4 of 6) Check

Fig 5: DR-29, Sensor Calibrations With Engine Cold (5 of 6) Check

Fig 6: DR-29, Sensor Calibrations With Engine Cold (6 of 6) Check
