SP-2, Checking For Fault Code 34

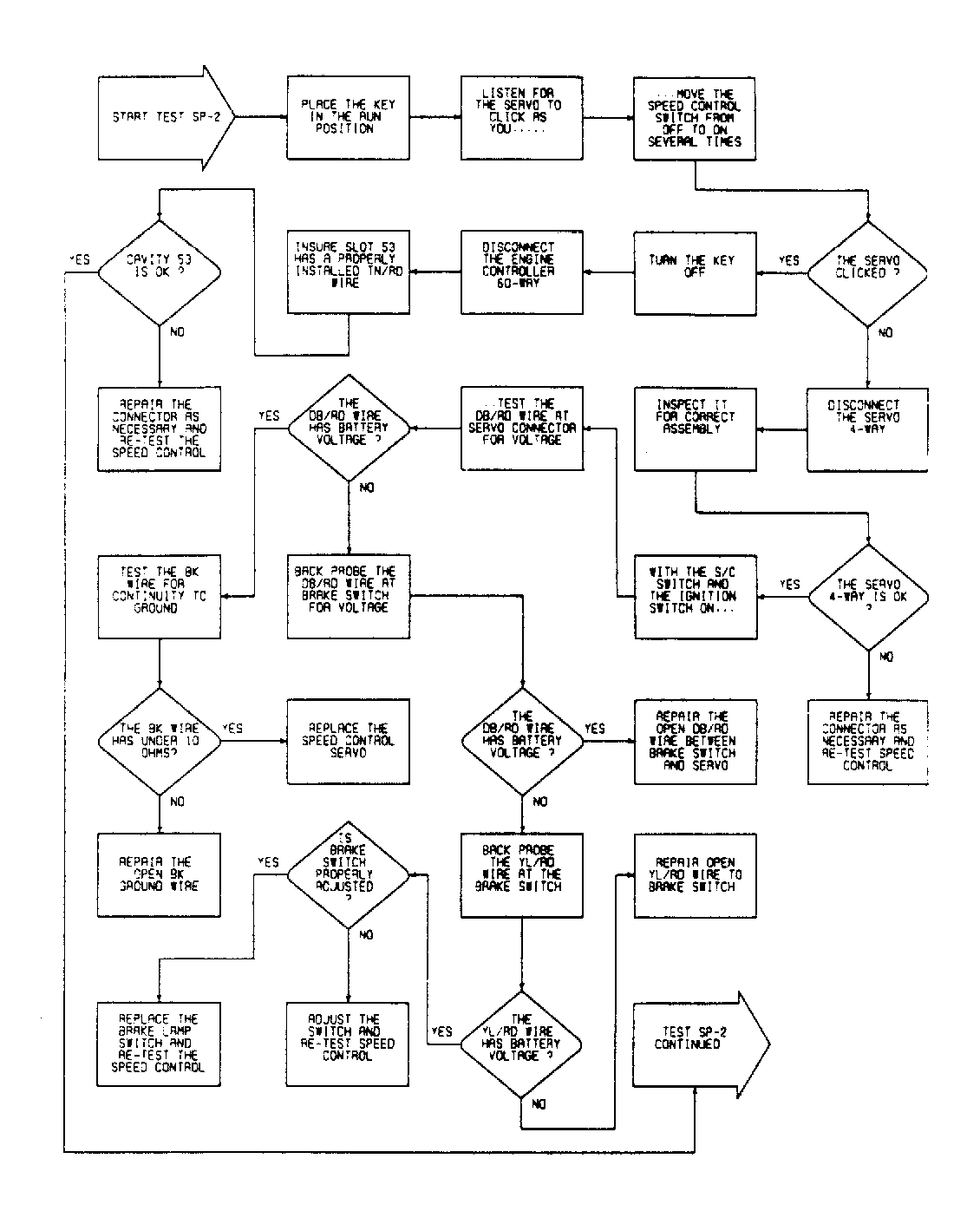

Fig 1: SP-2, Checking For Fault Code 34 (1 of 3)
G107295

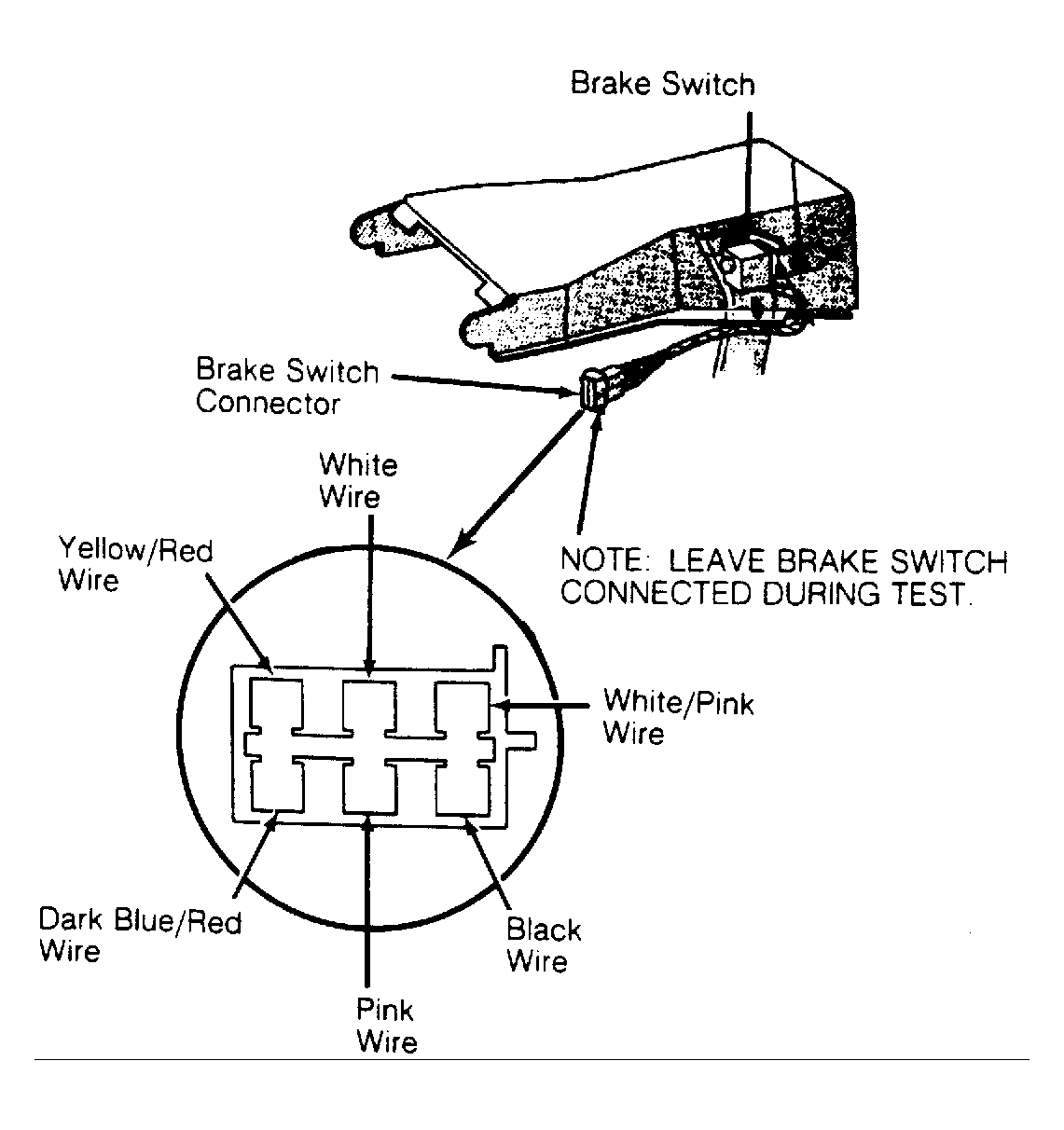

Fig 2: SP-2, Checking For Fault Code 34 (2 of 3)
G107296

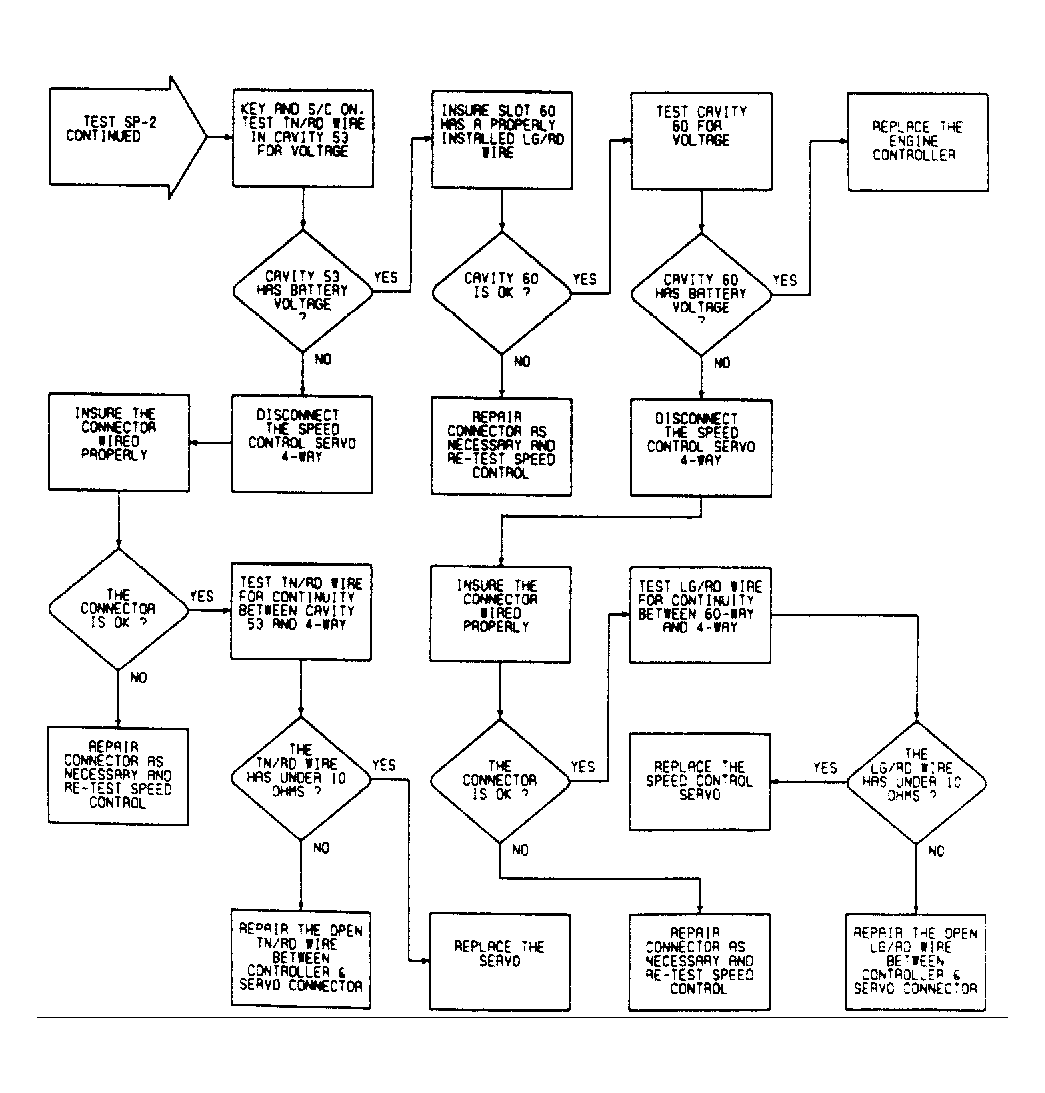

Fig 3: SP-2, Checking For Fault Code 34 (3 of 3)
G107297
