SP-4, Testing Brake Switch Circuit

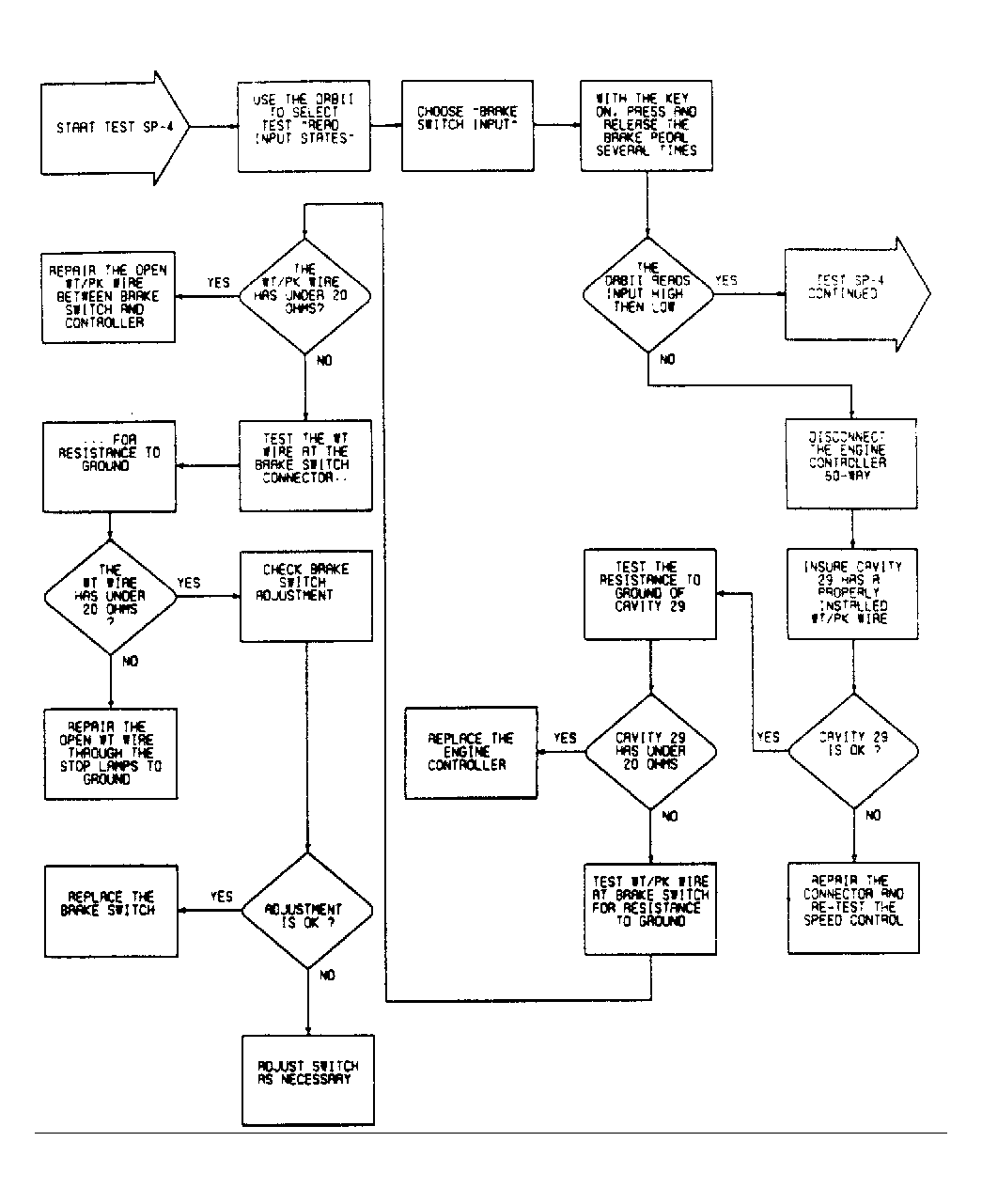

Fig 1: SP-4, Testing Brake Switch Circuit (1 of 4)

G107299

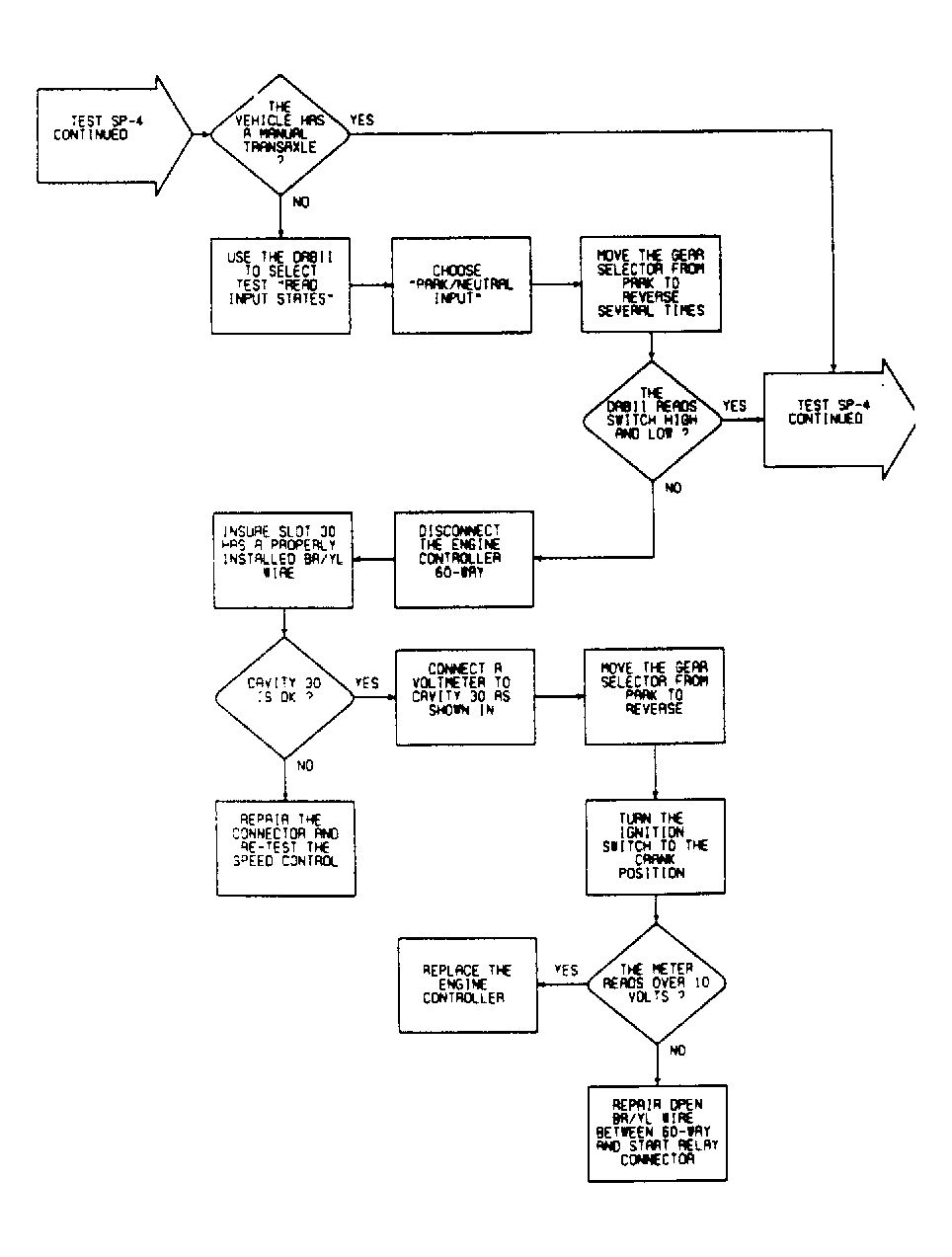

Fig 2: SP-4, Testing Brake Switch Circuit (2 of 4)

G107300

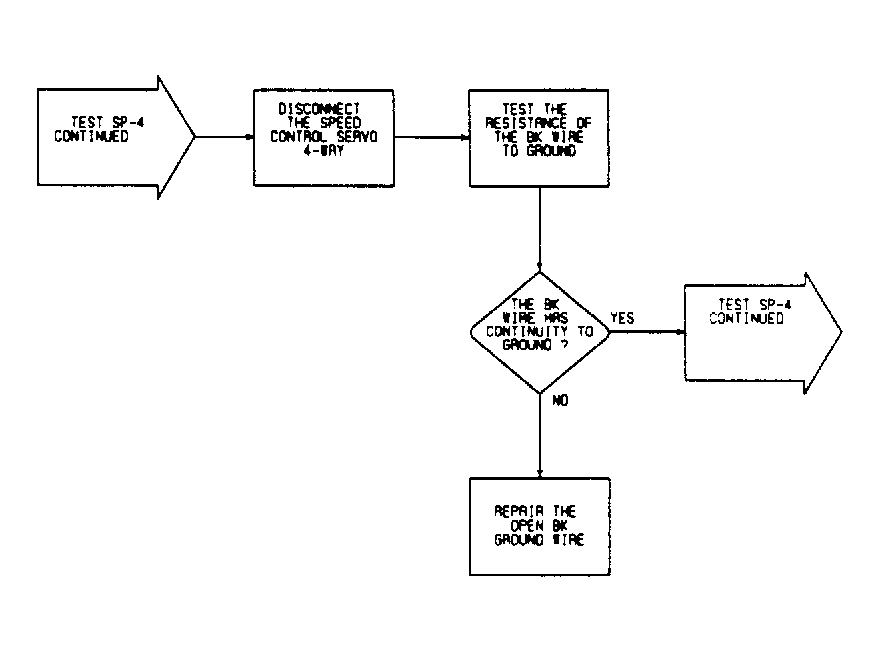

Fig 3: SP-4, Testing Brake Switch Circuit (3 of 4)

G107301

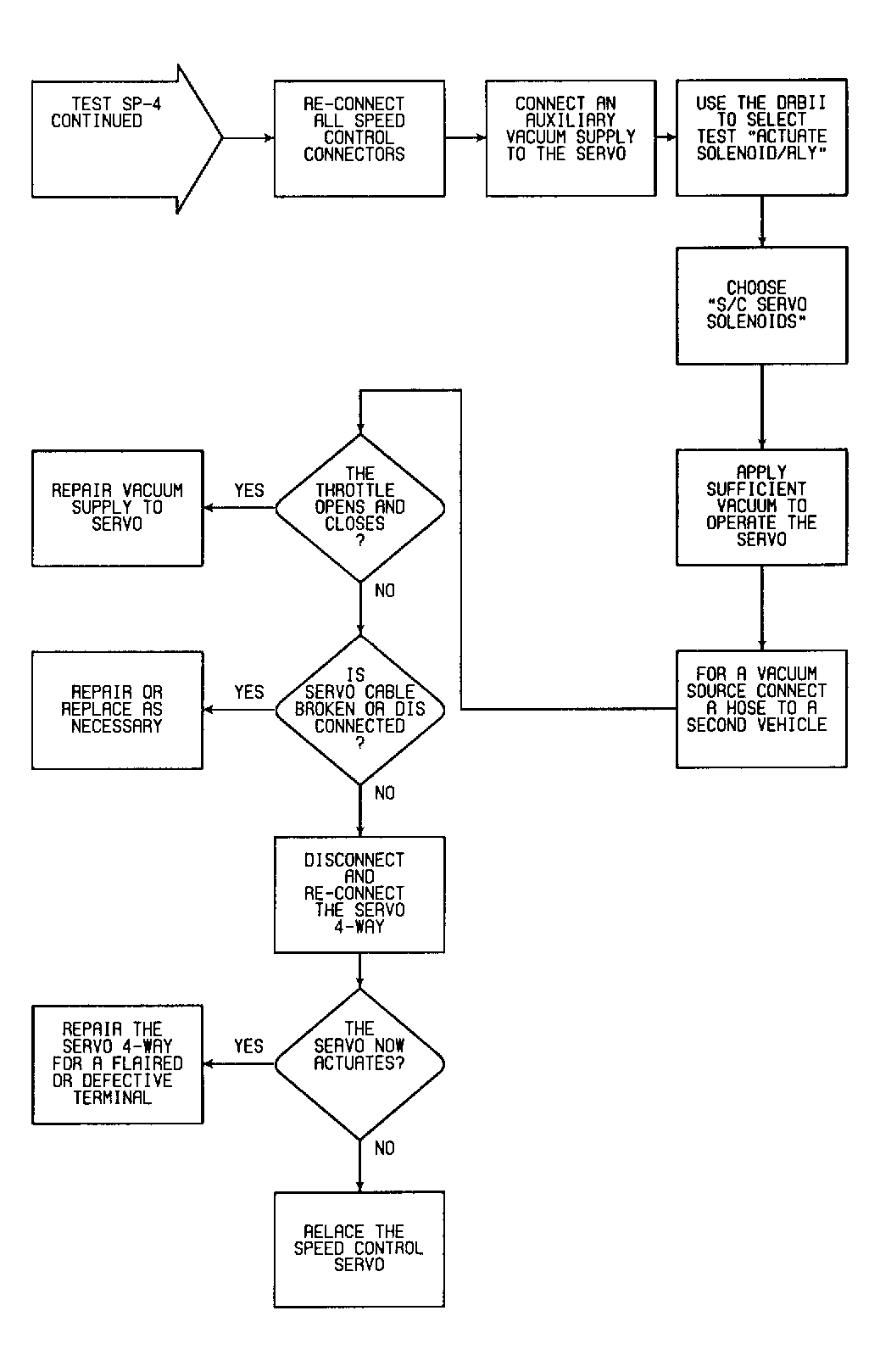

Fig 4: SP-4, Testing Brake Switch Circuit (4 of 4)

G107302
