NS-1: Ignition Check Flow Charts

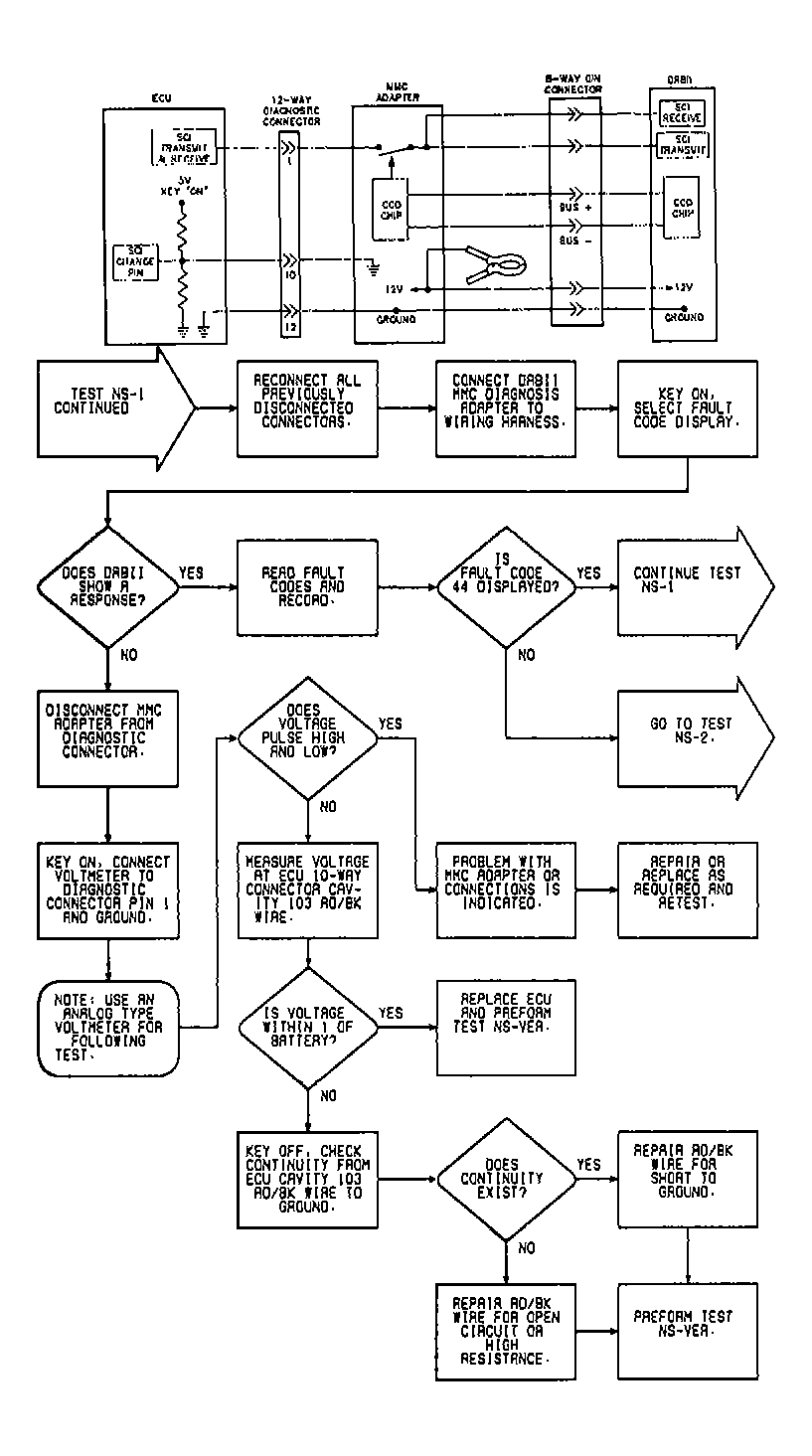

Fig 1: NS-1 Flow Chart & Circuit Diagram (2.0L) (1 of 5)

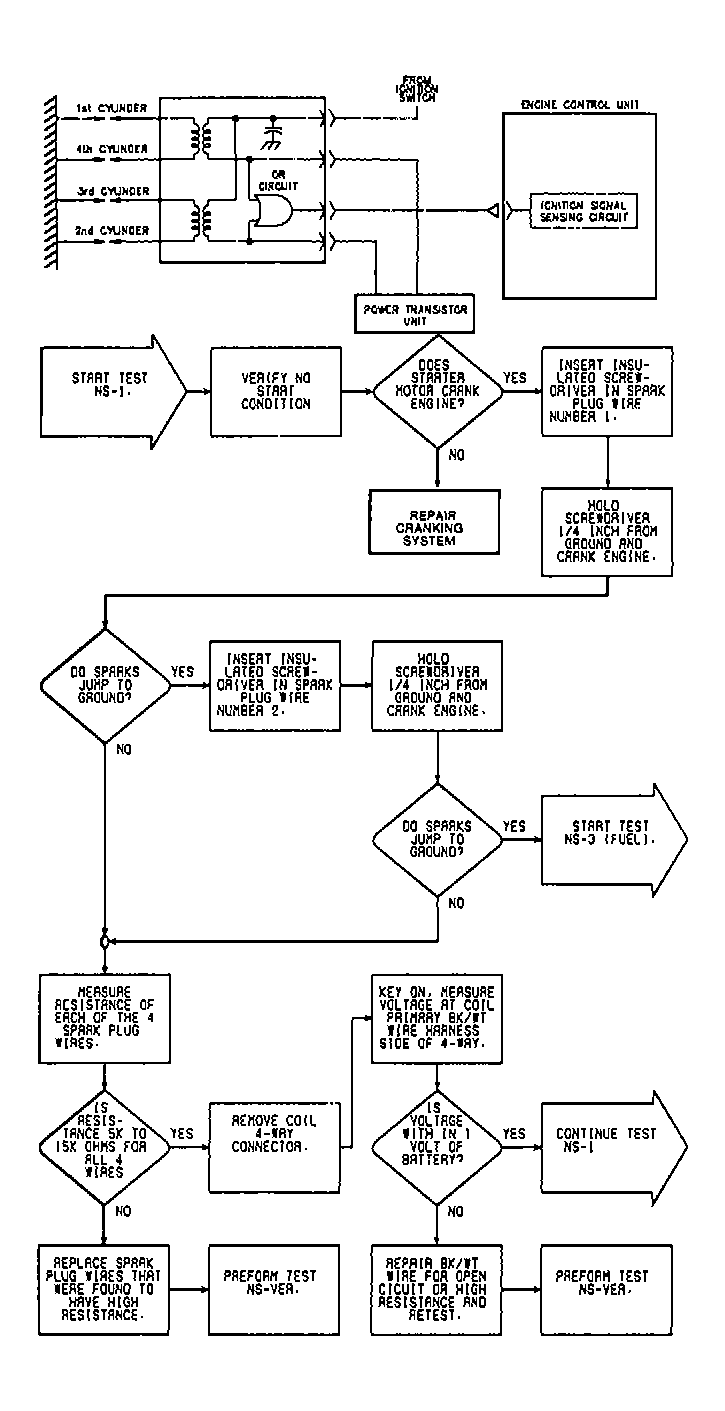

Fig 2: NS-1 Flow Chart & Circuit Diagram (2.0L) (2 of 5)

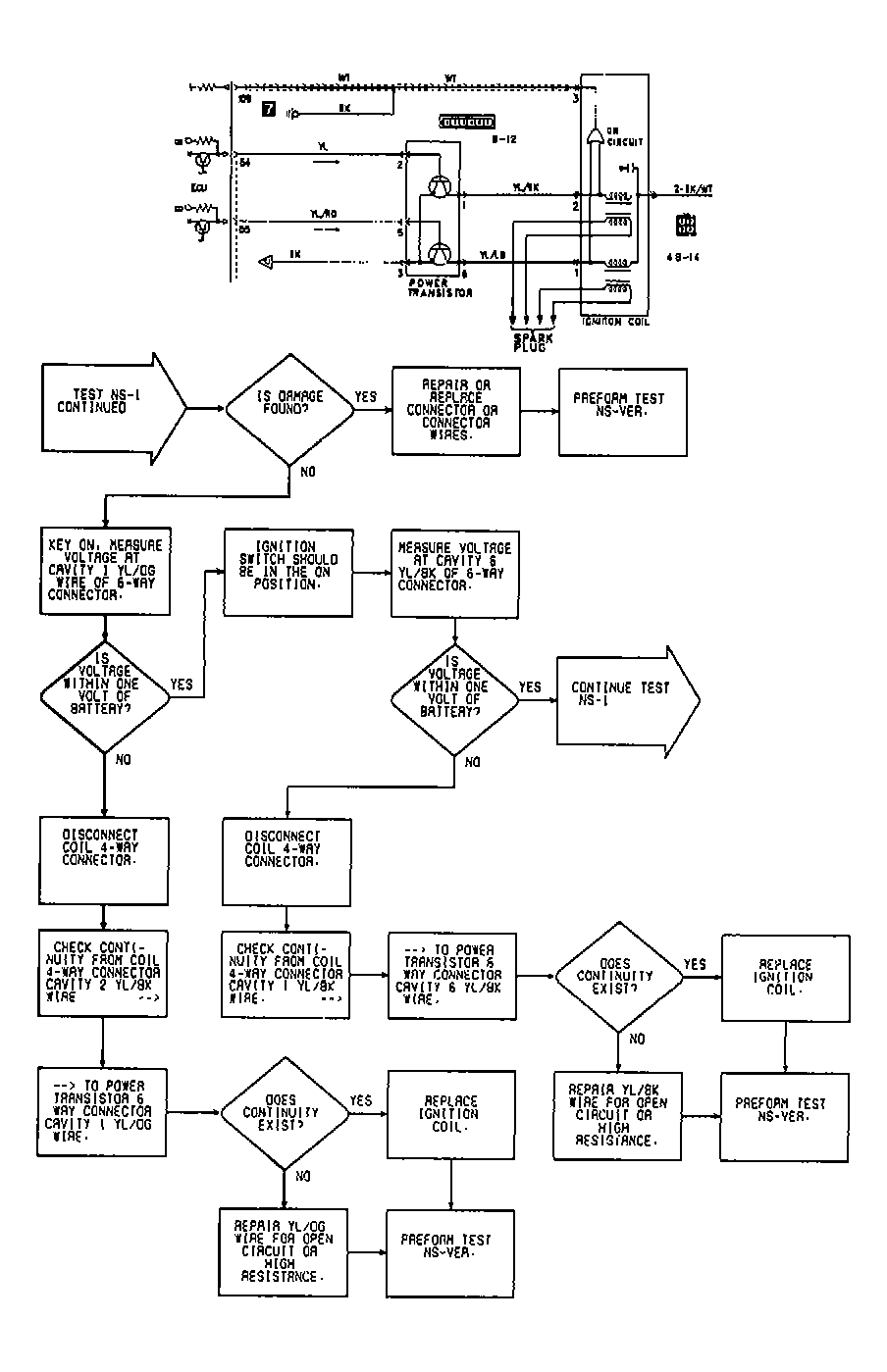

Fig 3: NS-1 Flow Chart & Circuit Diagram (2.0L) (3 of 5)

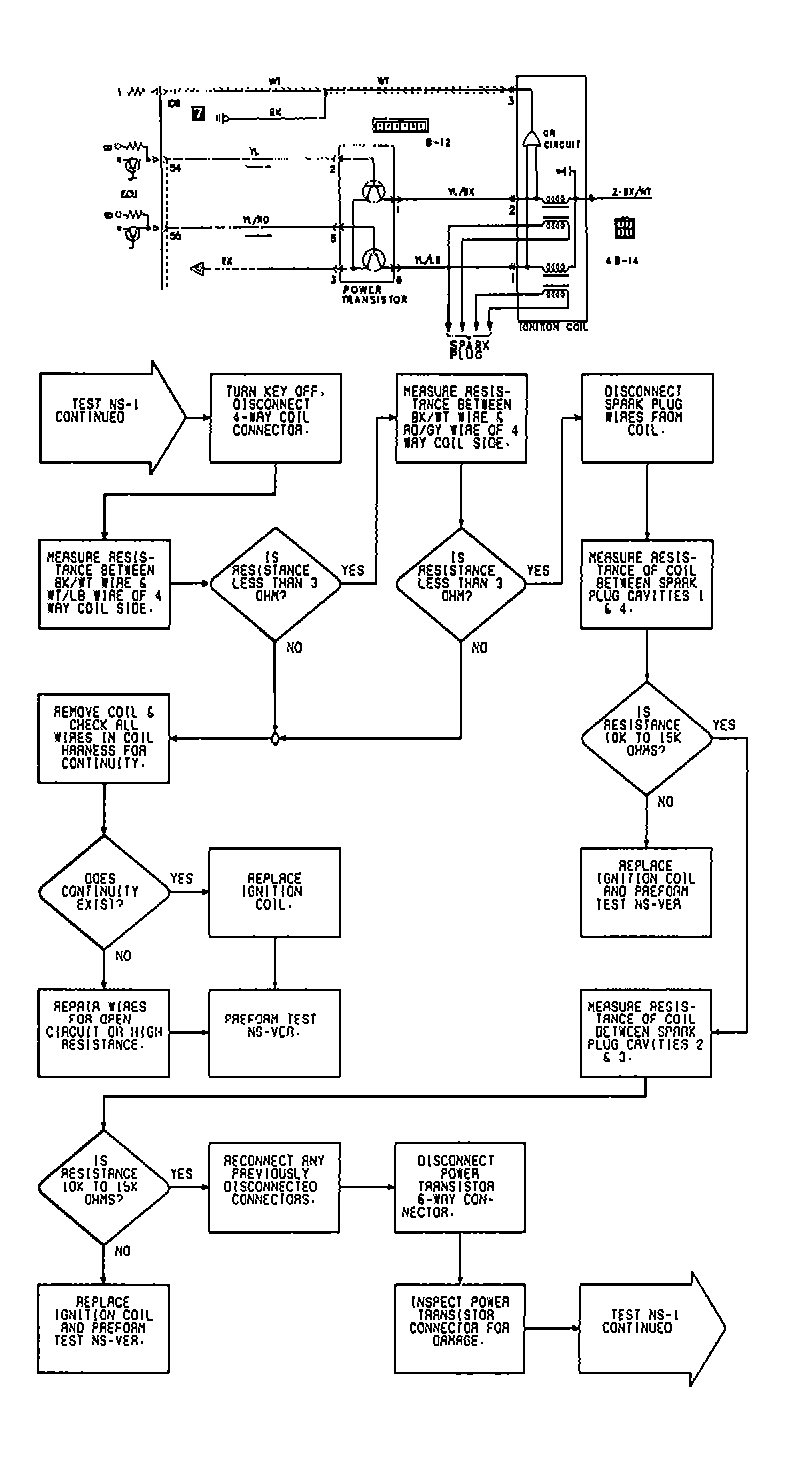

Fig 4: NS-1 Flow Chart & Circuit Diagram (2.0L) (4 of 5)

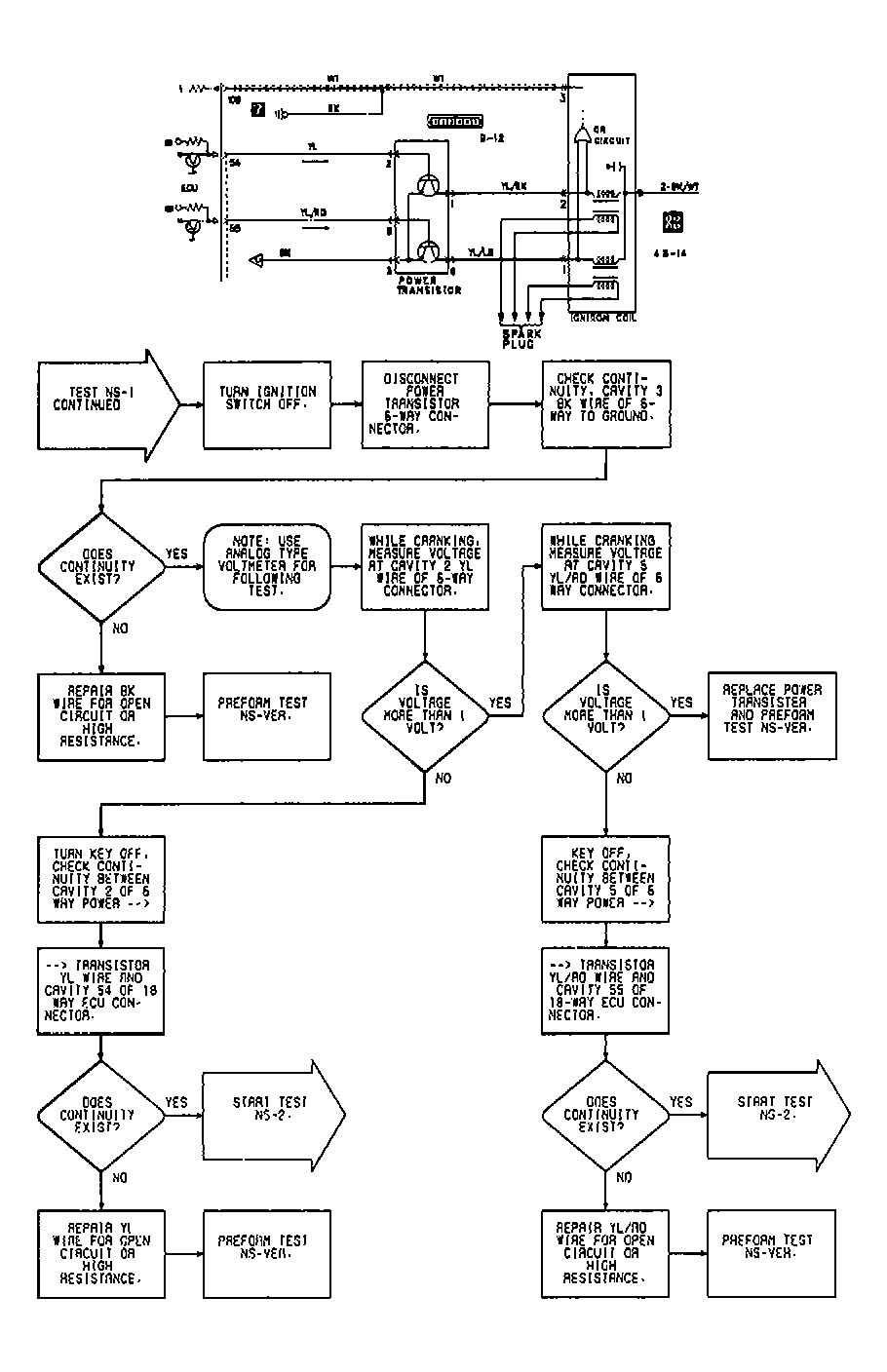

Fig 5: NS-1 Flow Chart & Circuit Diagram (2.0L) (5 of 5)
