Wiring Diagrams

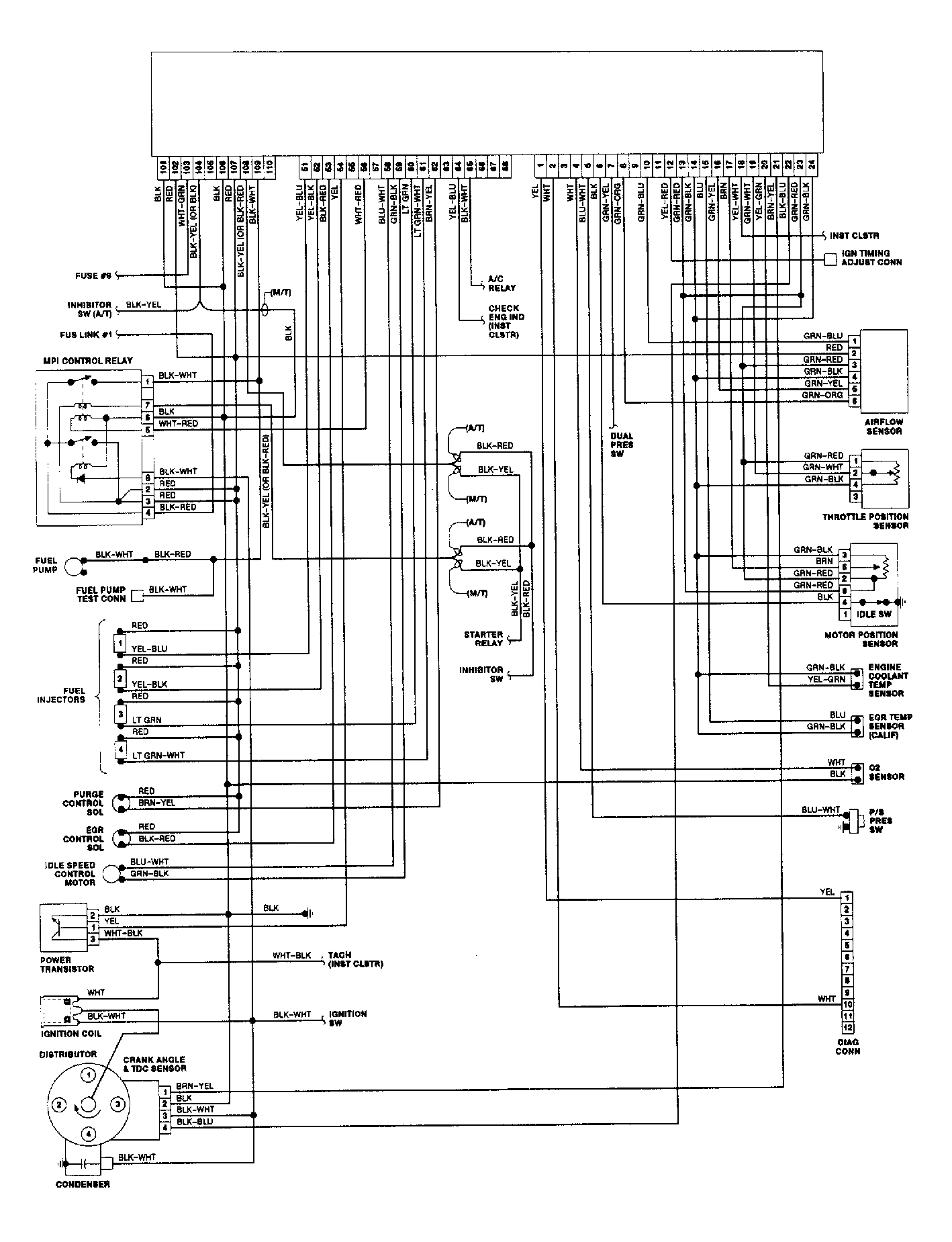

Fig 1: Colt & Summit 1.5L Wiring Diagram

G90I21665

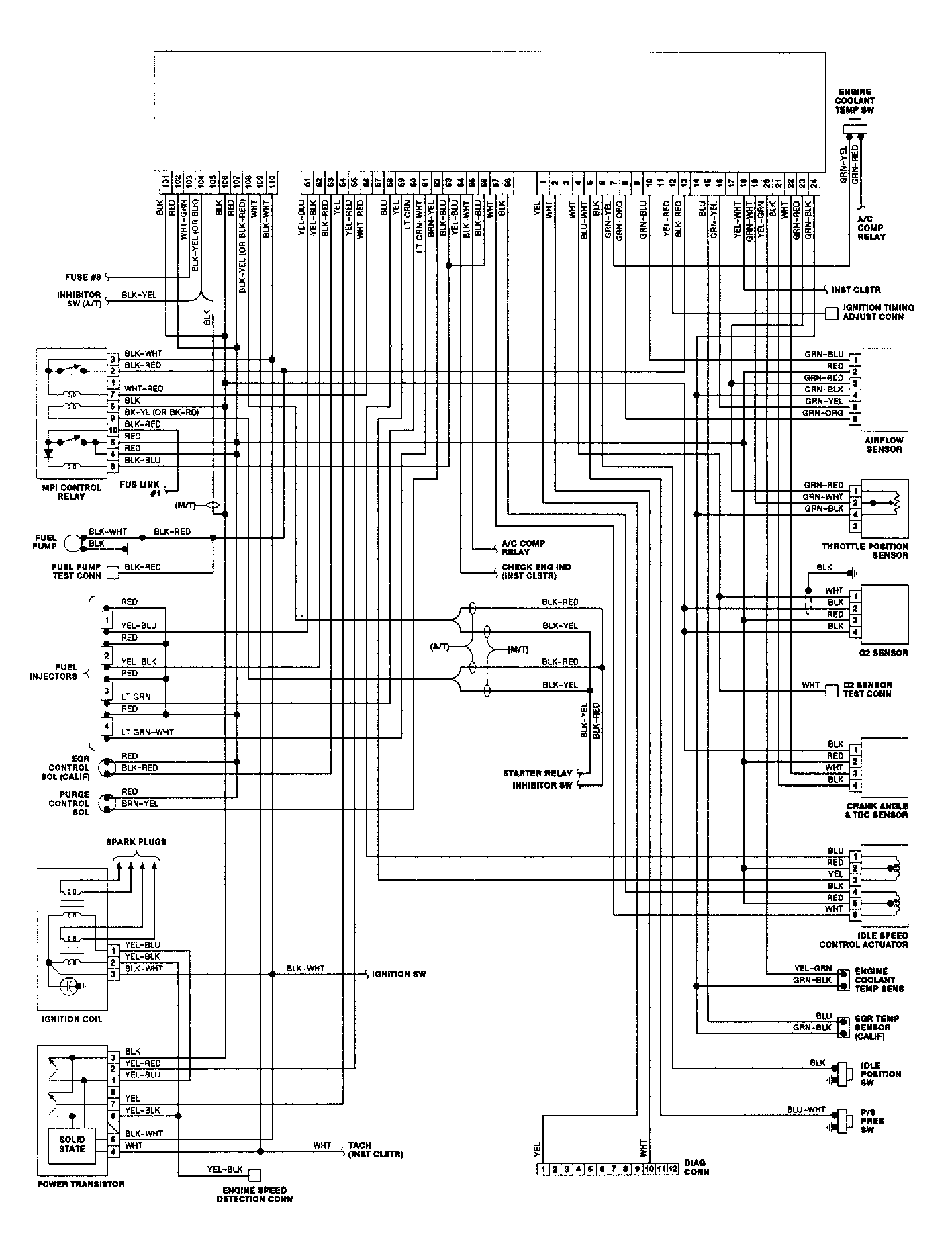

Fig 2: Colt & Summit 1.6L Wiring Diagram

G90J21666

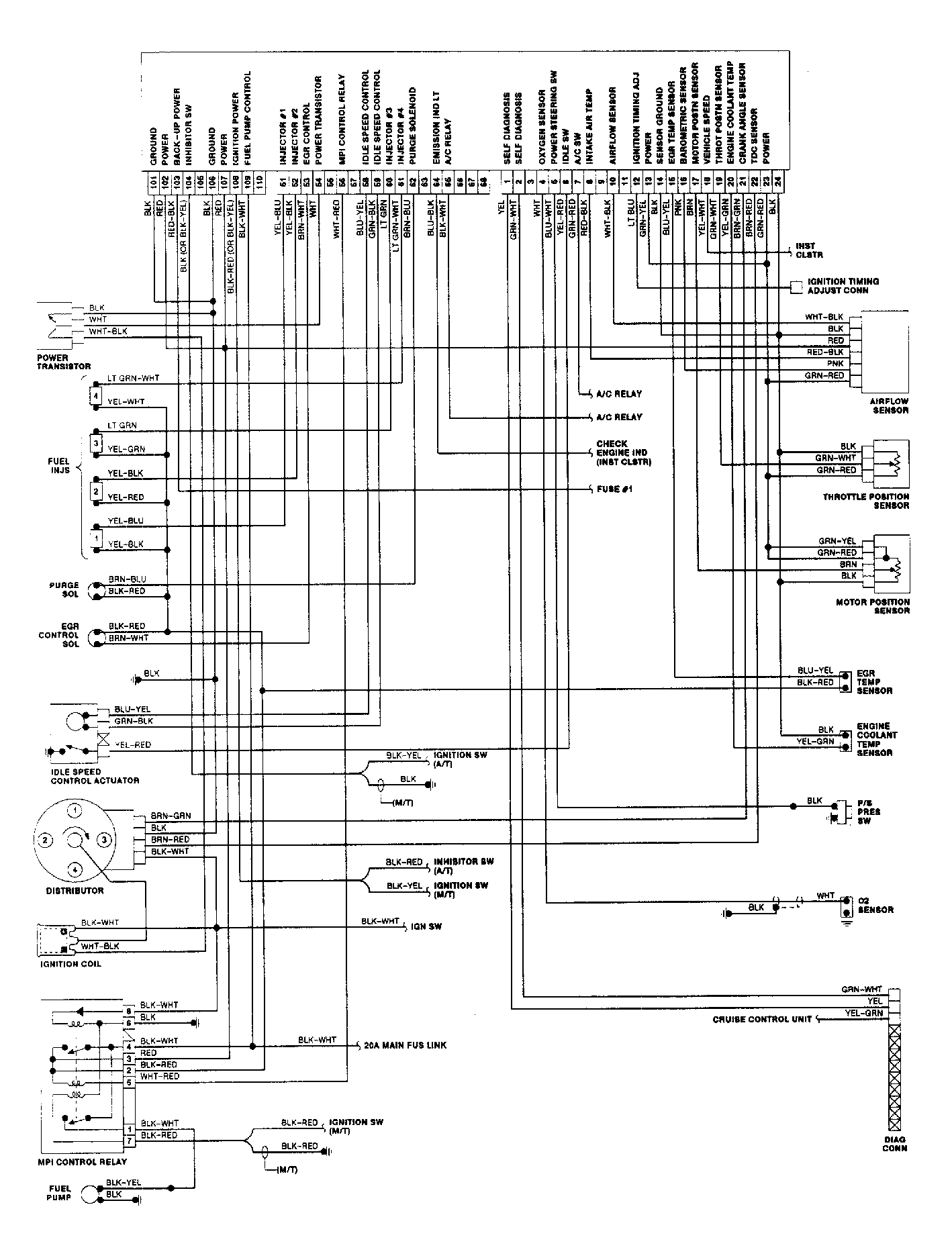

Fig 3: Colt Vista 2.0L Wiring Diagram

G90A21667

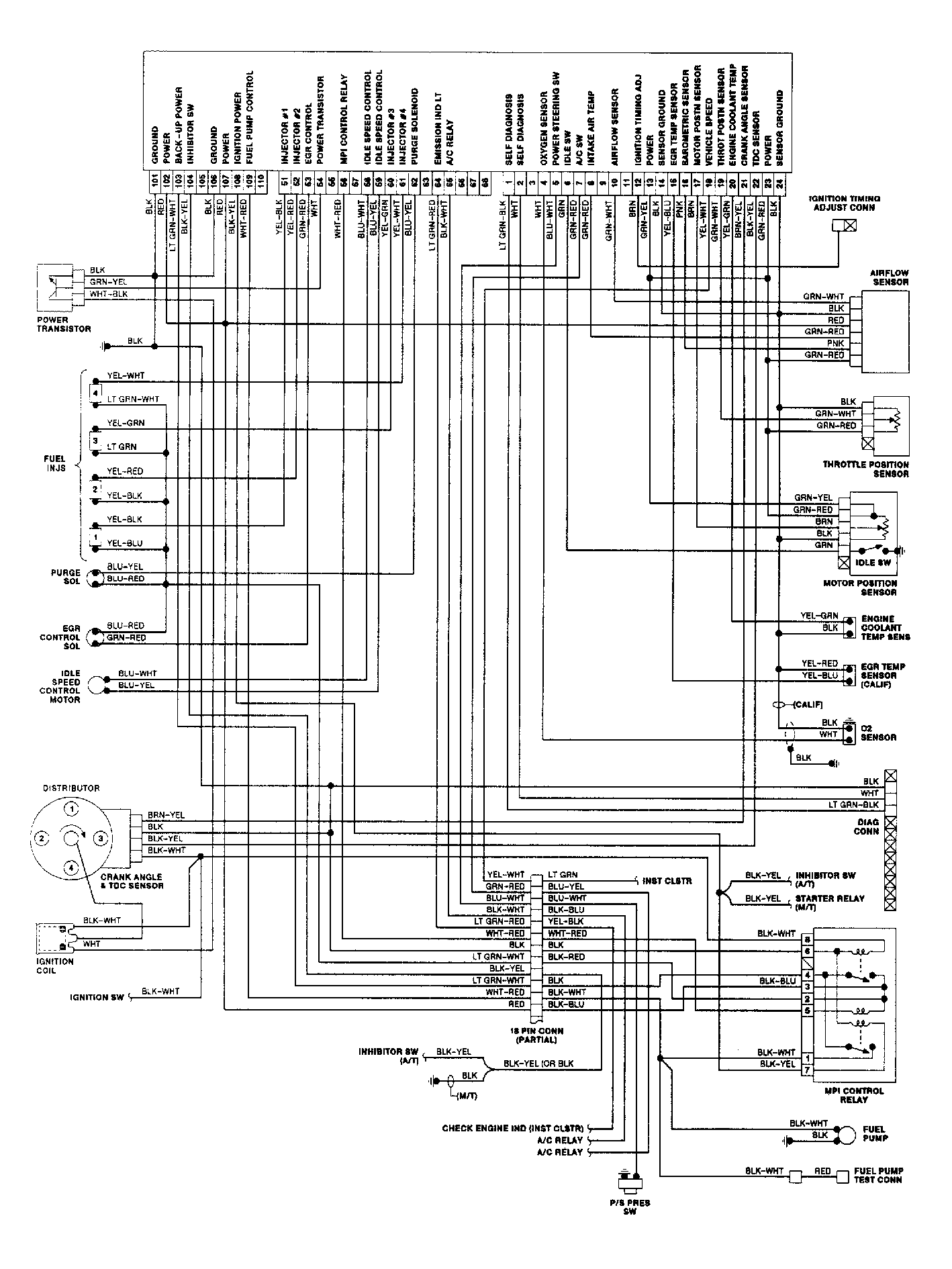

Fig 4: Colt Wagon 1.5L & 1.8L Wiring Diagram

G90B21668

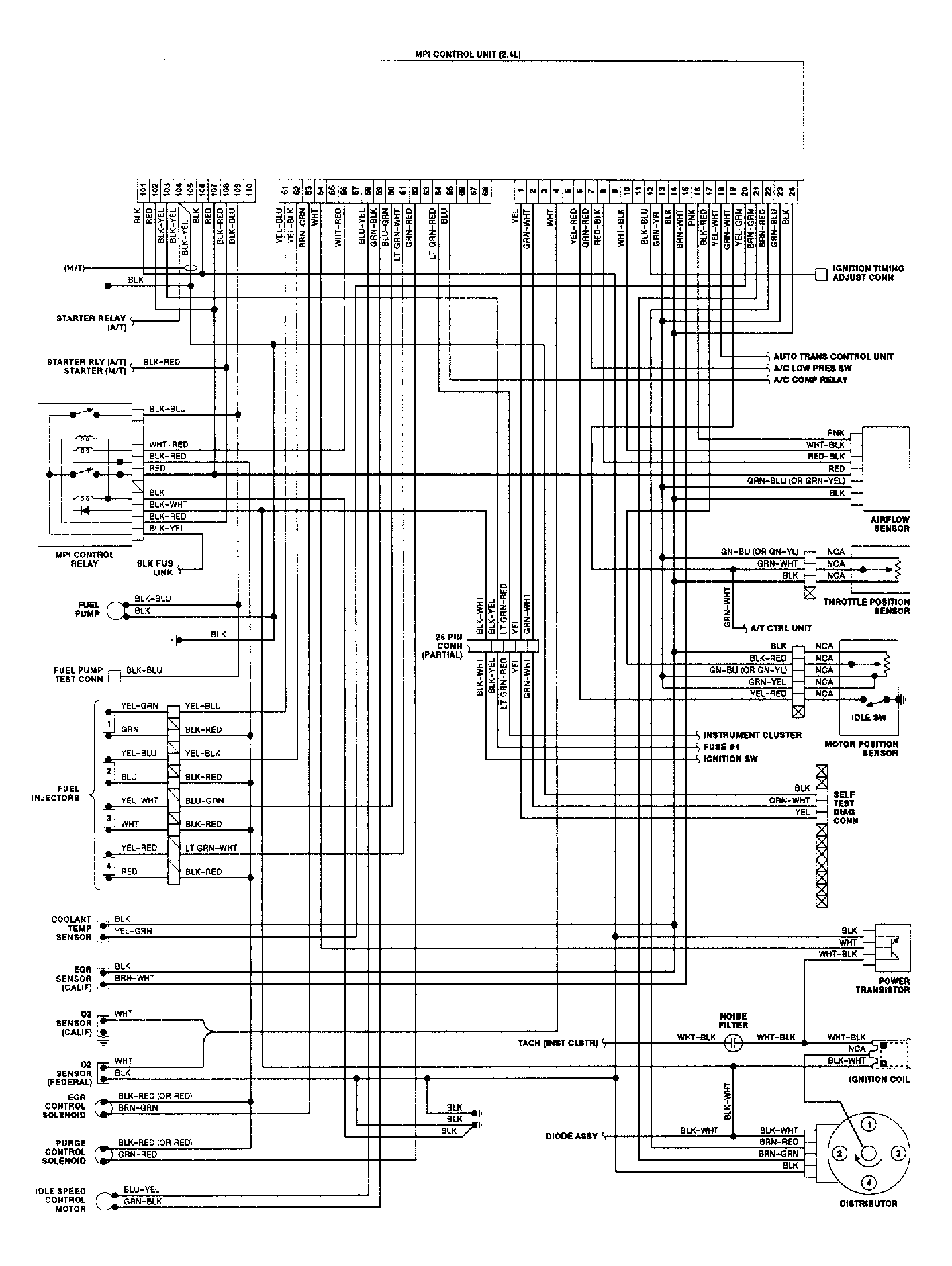

Fig 5: Ram-50 2.4L Wiring Diagram

G90B21676

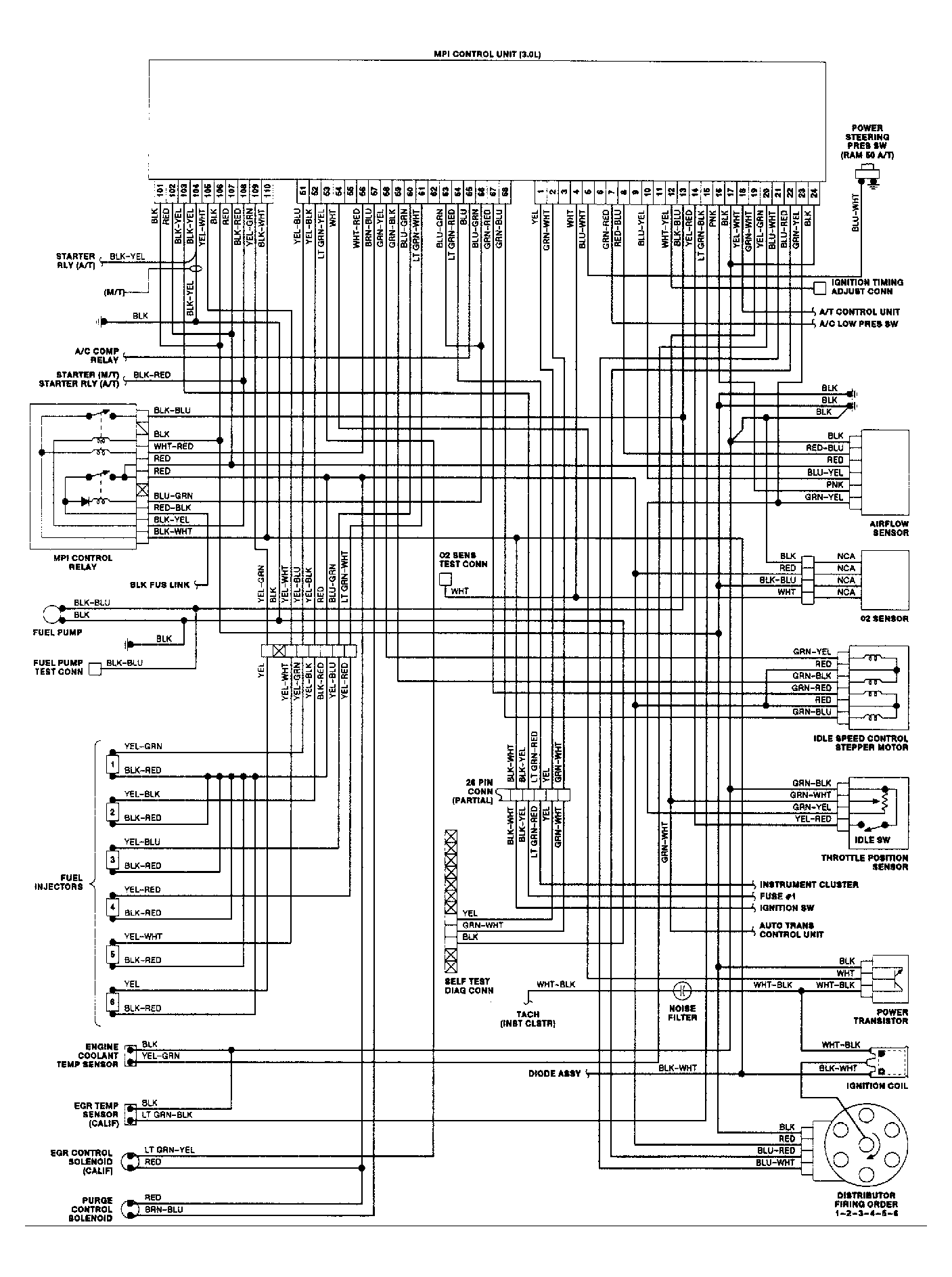

Fig 6: Ram-50 3.0L Wiring Diagram

G90C21677
