Dr-1: Fault Code Check

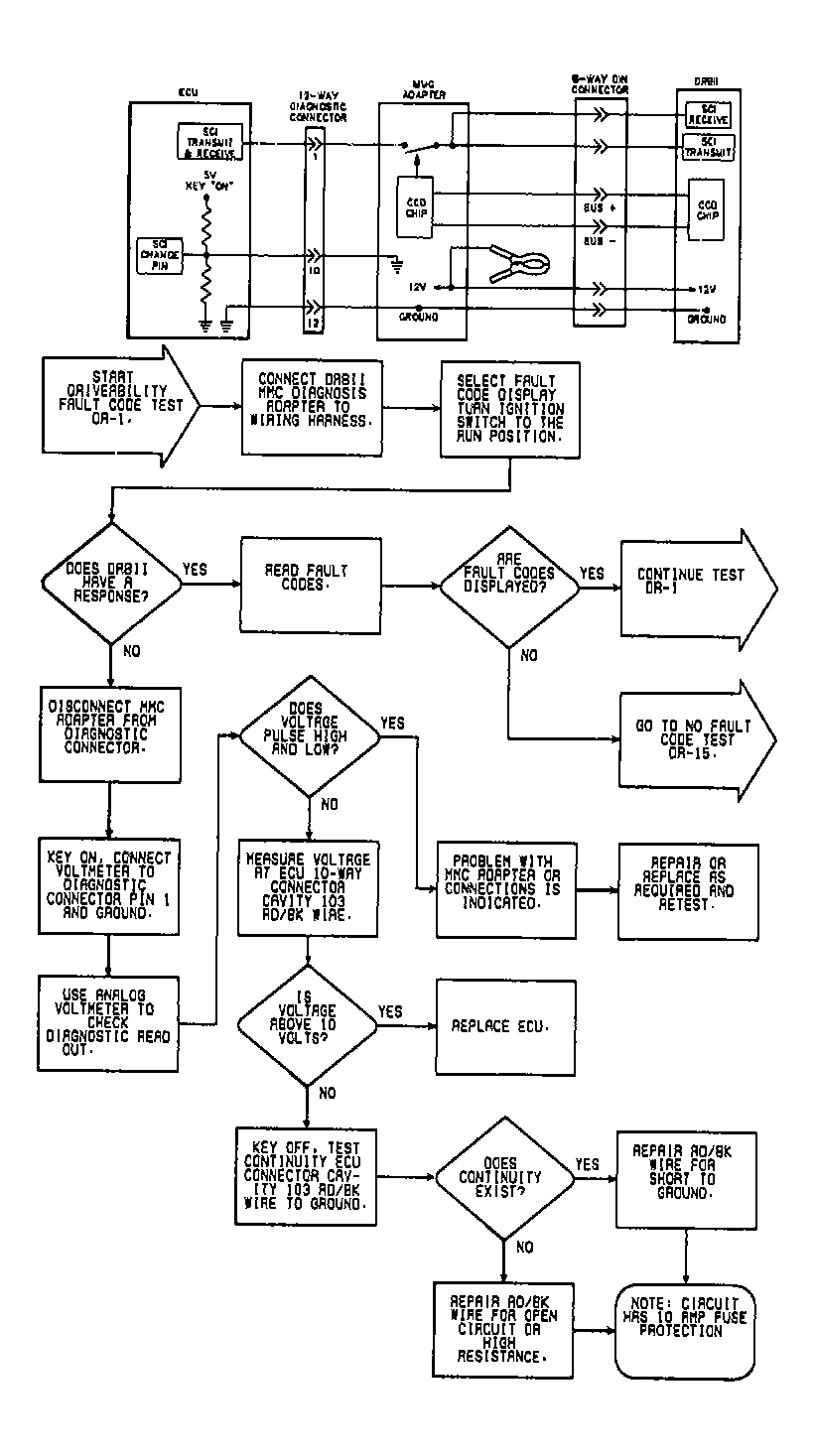

Fig 1: DR-1 Flow Chart & Circuit Diagram (1 of3)
G90D11513

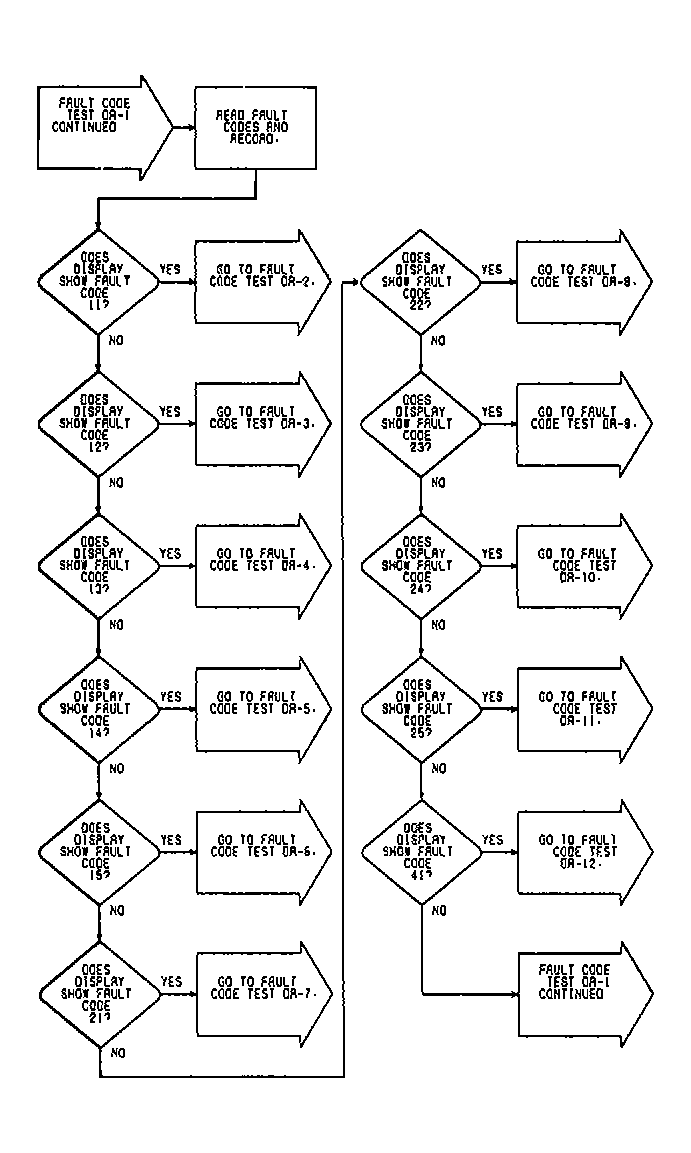

Fig 2: DR-1 Flow Chart & Circuit Diagram (2 of3)
G90E11514

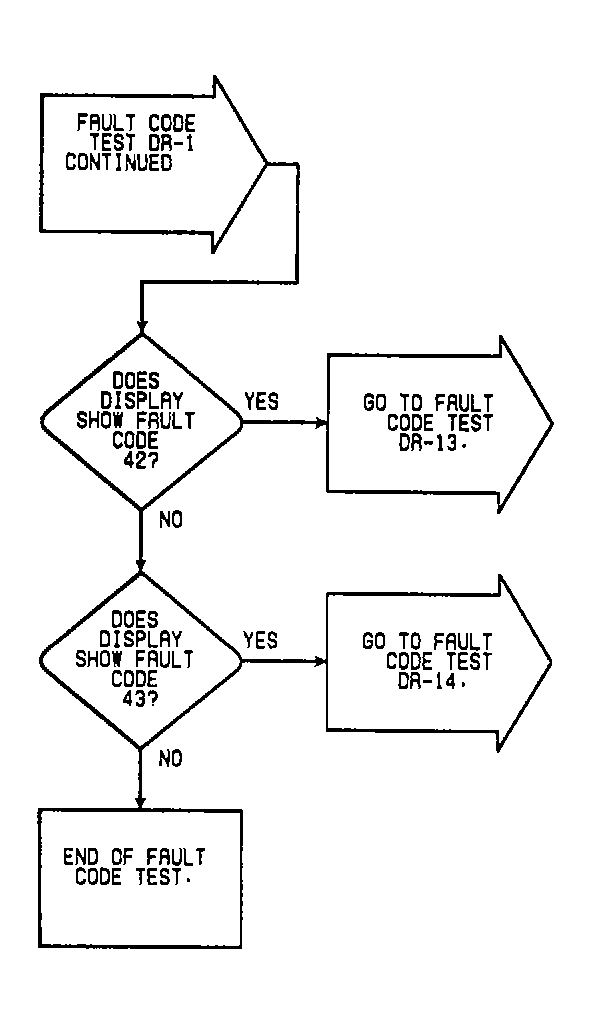

Fig 3: DR-1 Flow Chart & Circuit Diagram (3 of 3)
G90F11515
