Dr-3: Checking Airflow Sensor

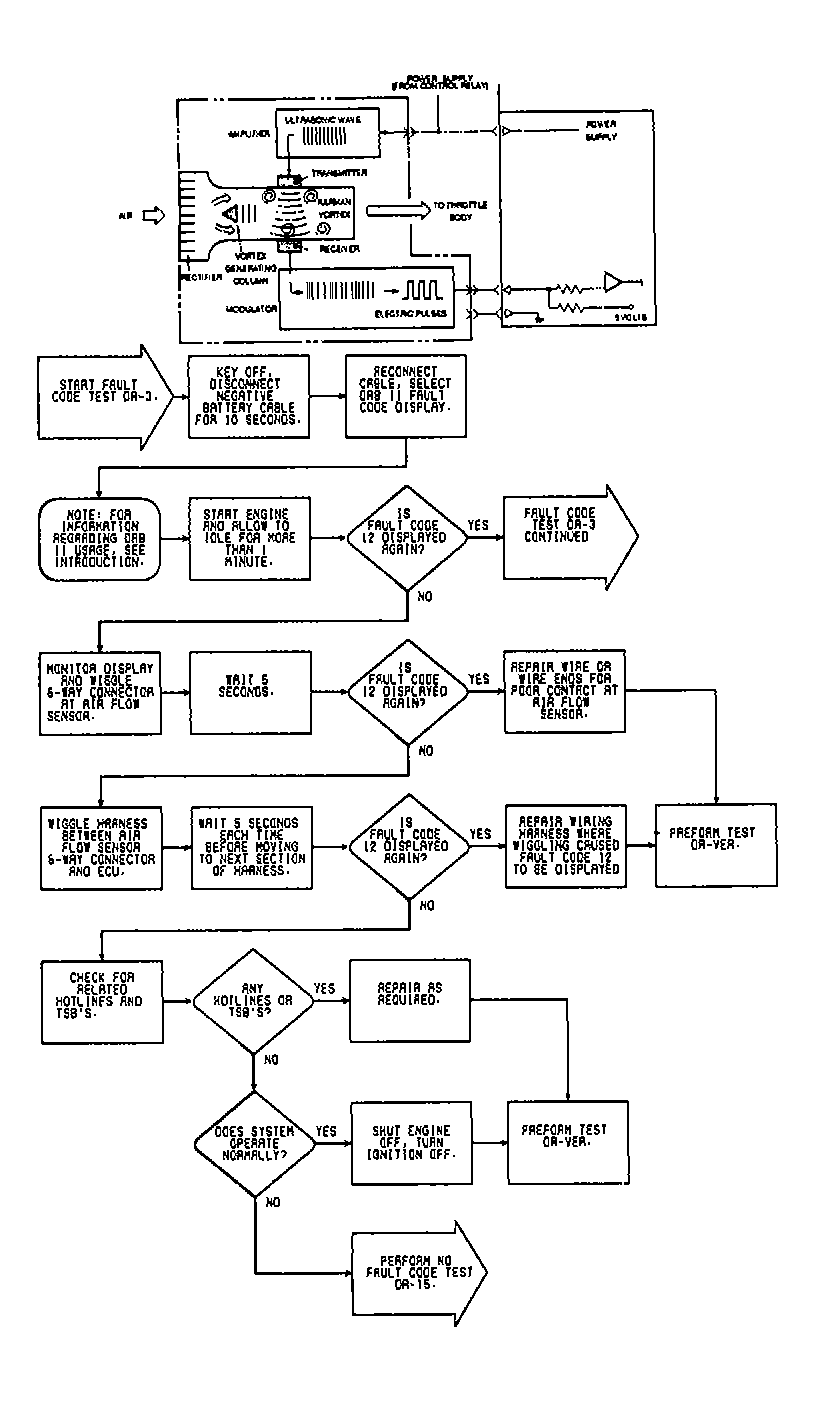

Fig 1: DR-3 Flow Chart & Circuit Diagram (1of 2)

G90D12610

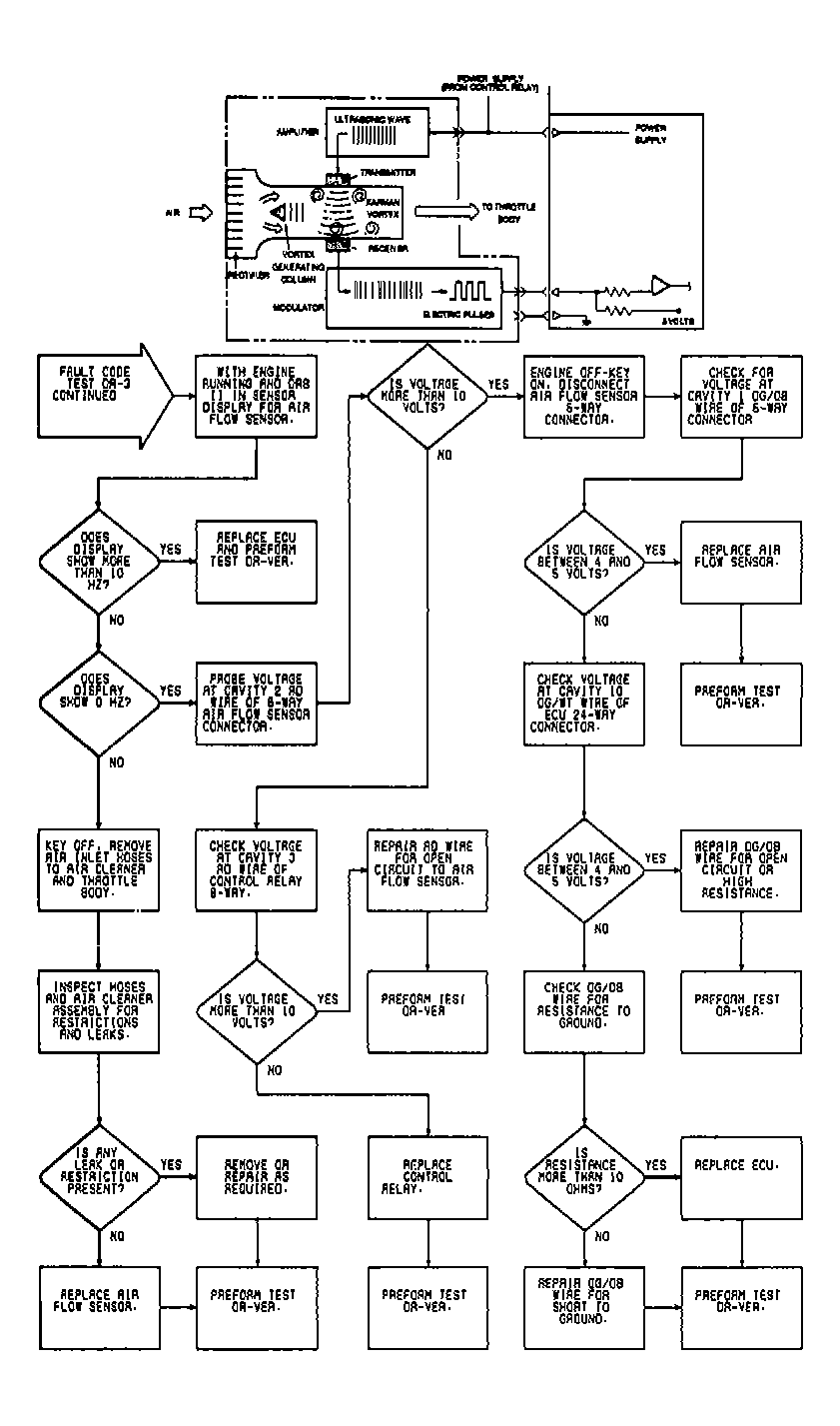

Fig 2: DR-3 Flow Chart & Circuit Diagram (2 of 2)

G90E12611
