Power Window Motor

  1. Remove the power window motor and regulator. See FRONT DOOR GLASS & REGULATOR  under REMOVAL & INSTALLATION.
  2. Connect the motor terminals directly to the battery and check that the motor operates smoothly. See Fig 1 .
  3. Reverse the polarity and check that the motor operates smoothly in the reverse direction. If not, replace motor.

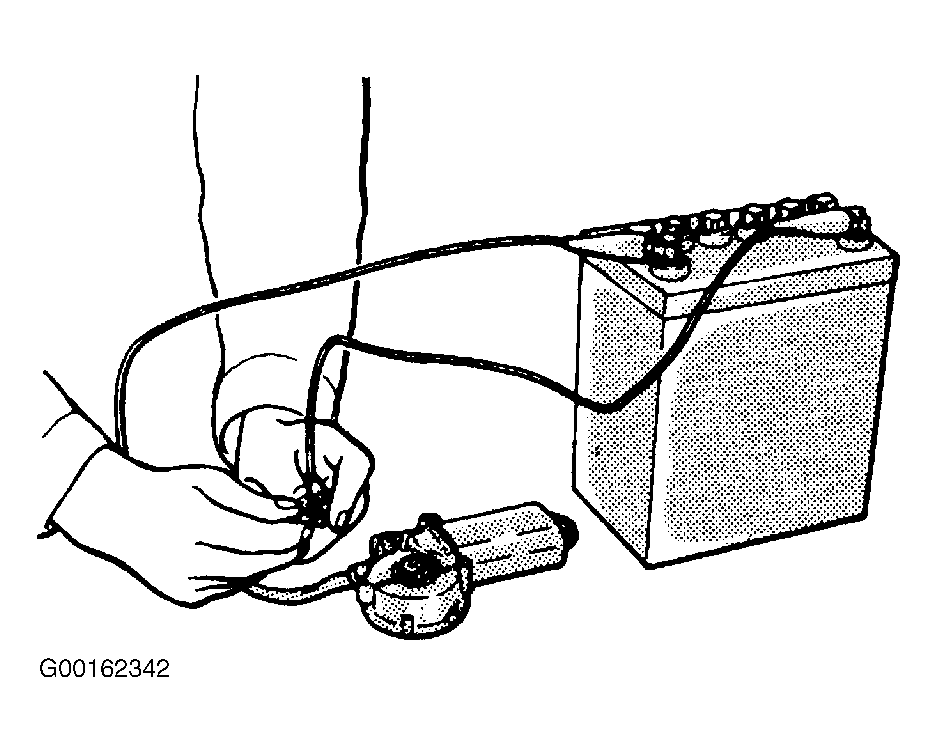

Fig 1: Testing Power Window Motor
G00162342Courtesy of CHRYSLER CORP.
