Power Window Relay

NOTE: Apply battery voltage to terminal No. 2, and check for continuity when terminal No. 4 is grounded. See Fig 1 .

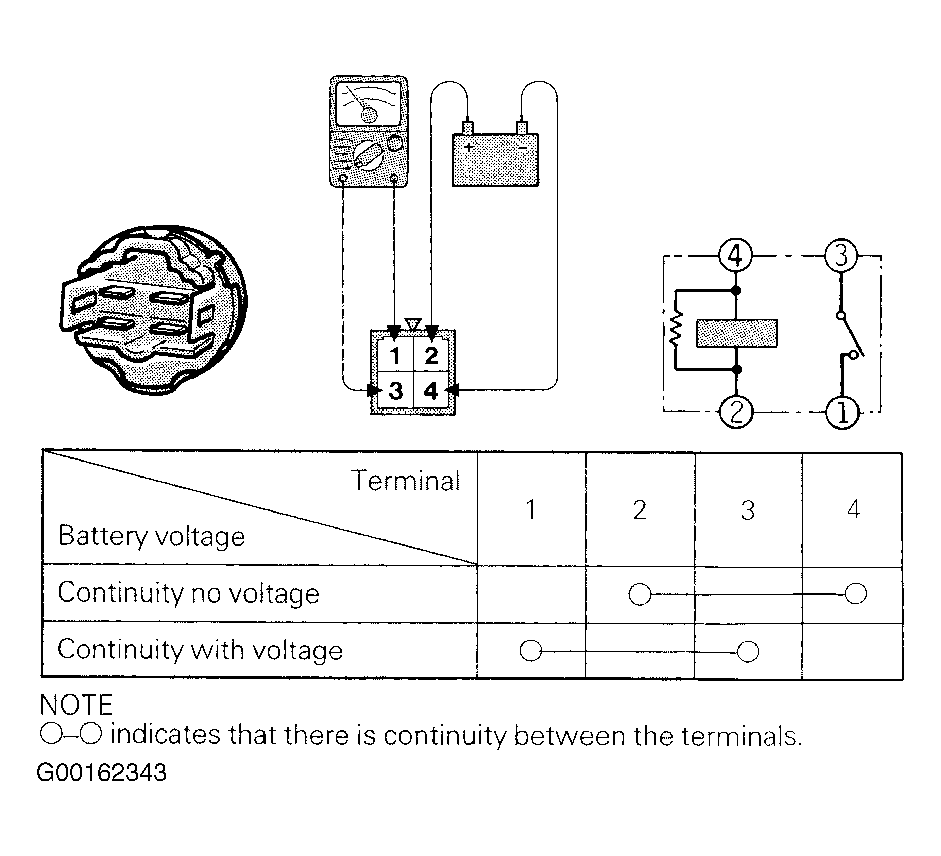

Fig 1: Checking Power Window Relay Continuity

Courtesy of CHRYSLER CORP.
