Dr-1: Testing For MPI System Fault Codes

Fig 1: DR-1 Test Schematic MPI System Fault Codes
G90G15368

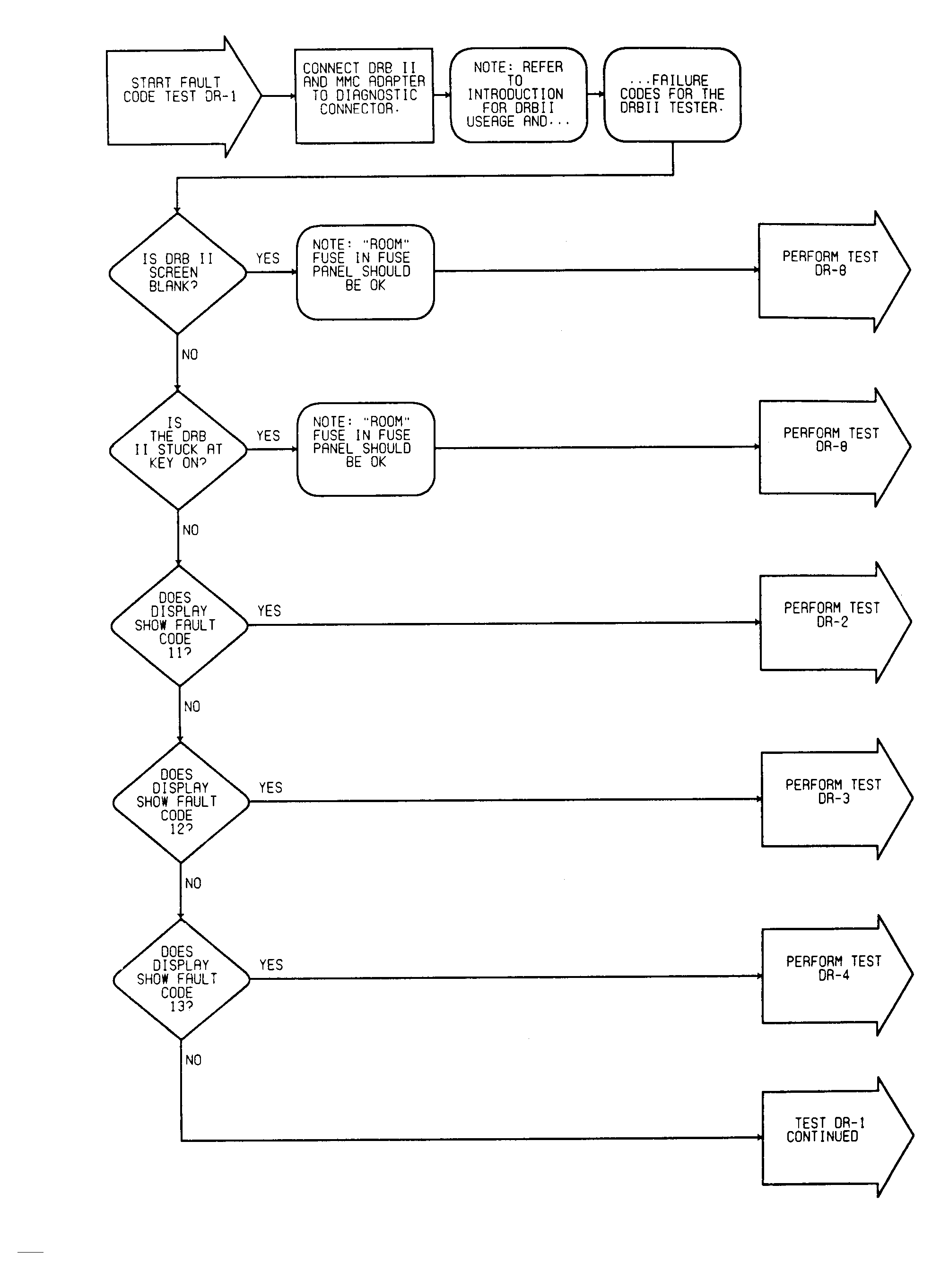

Fig 2: DR-1 Test Flow Chart (1 Of 2) MPI System Fault Codes
G91G16713

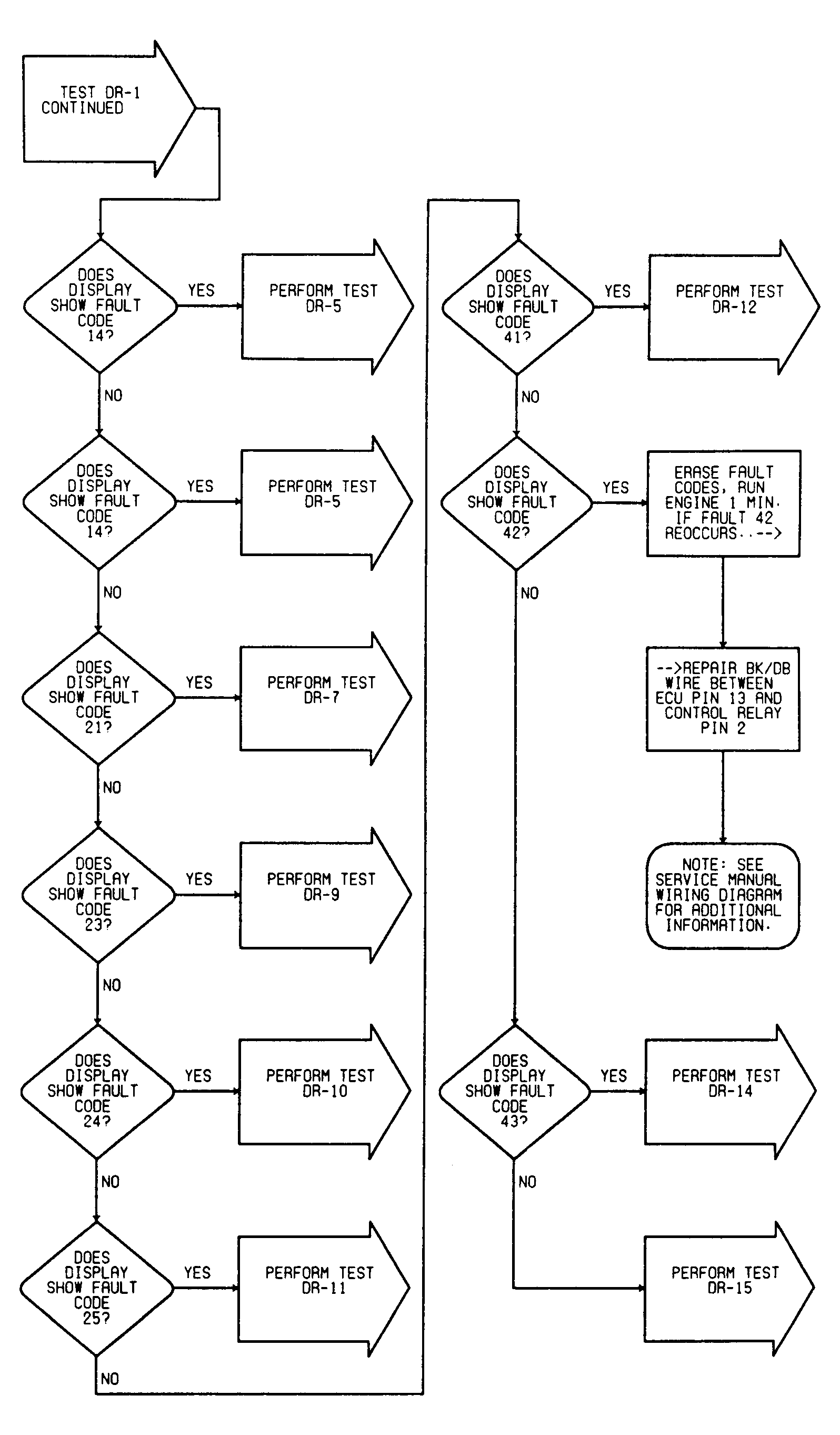

Fig 3: DR-1 Test Flow Chart (2 Of 2) MPI System Fault Codes
G91H16714
