Plymouth
>>
1992
>>
Colt Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Code Charts
>>
Dr-12: Testing Injector Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dr-12: Testing Injector Circuit

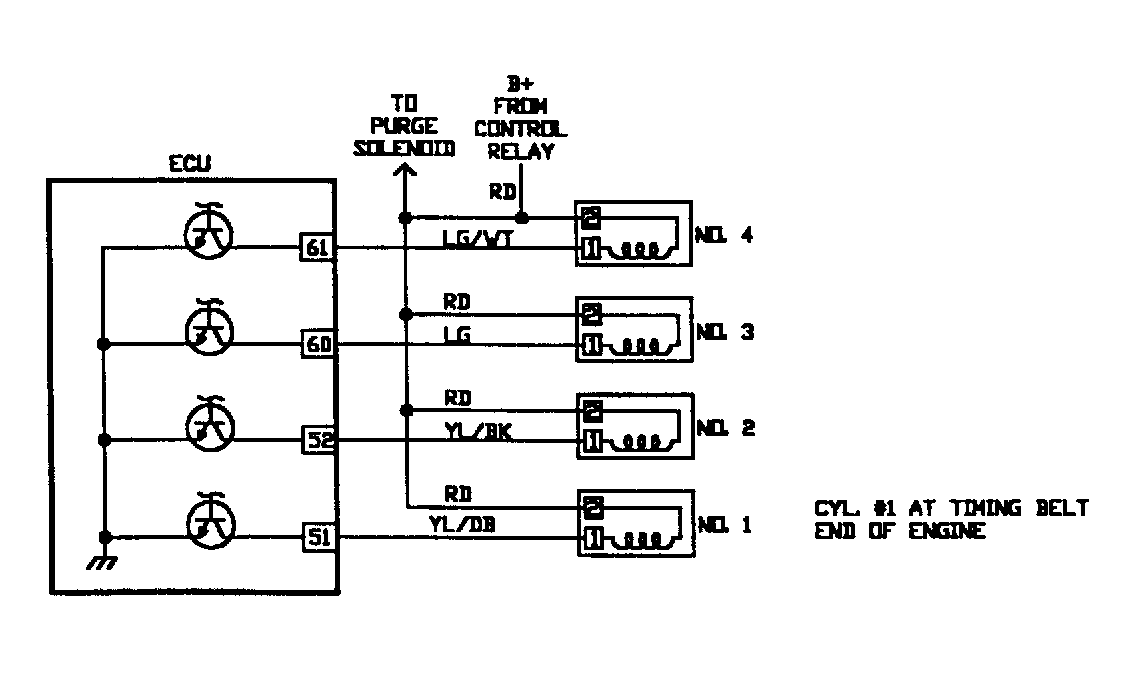

Fig 1: DR-12 Test Schematic Testing Injector Circuit

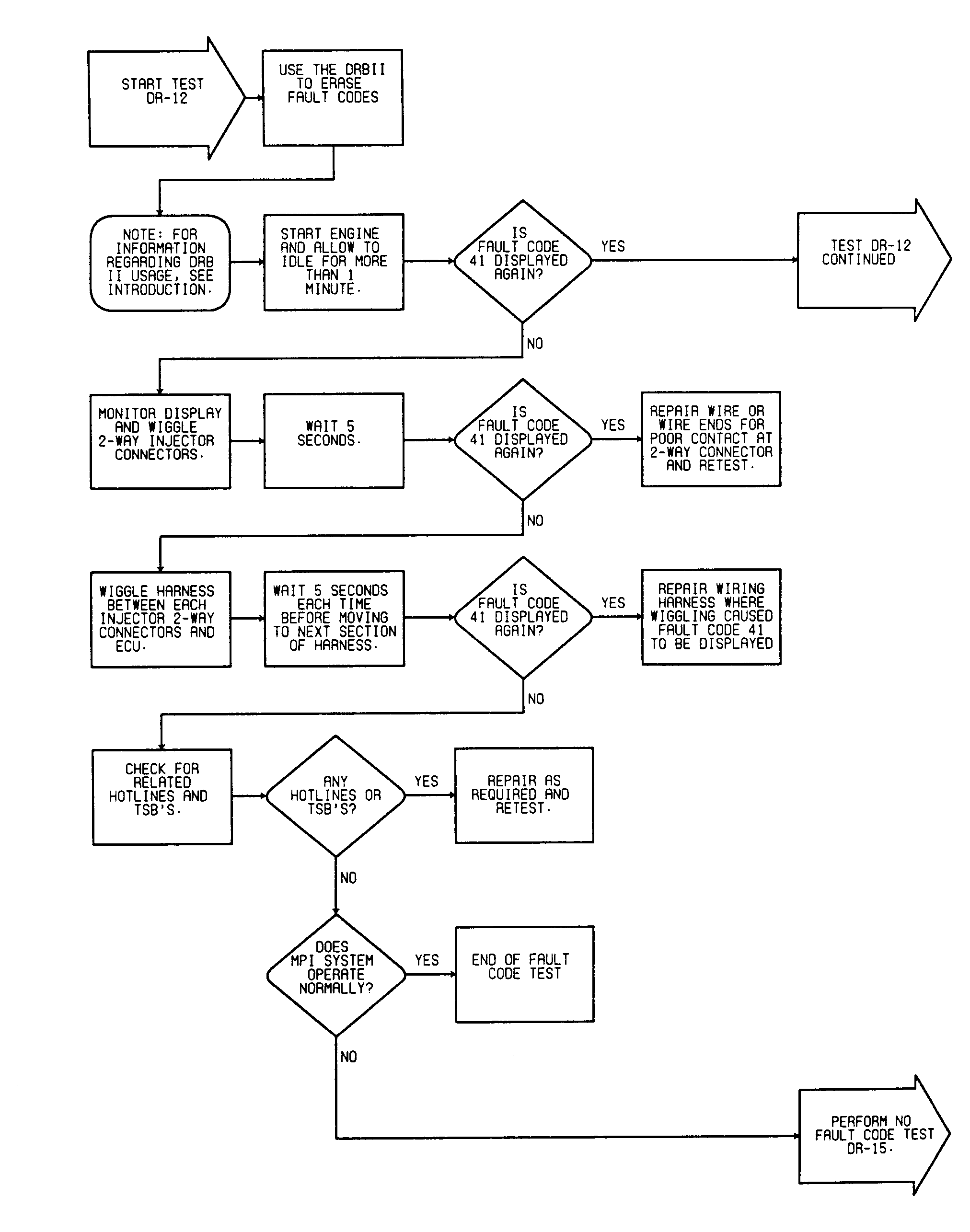

Fig 2: DR-12 Test Flow Chart (1 Of 2) Testing Injector Circuit

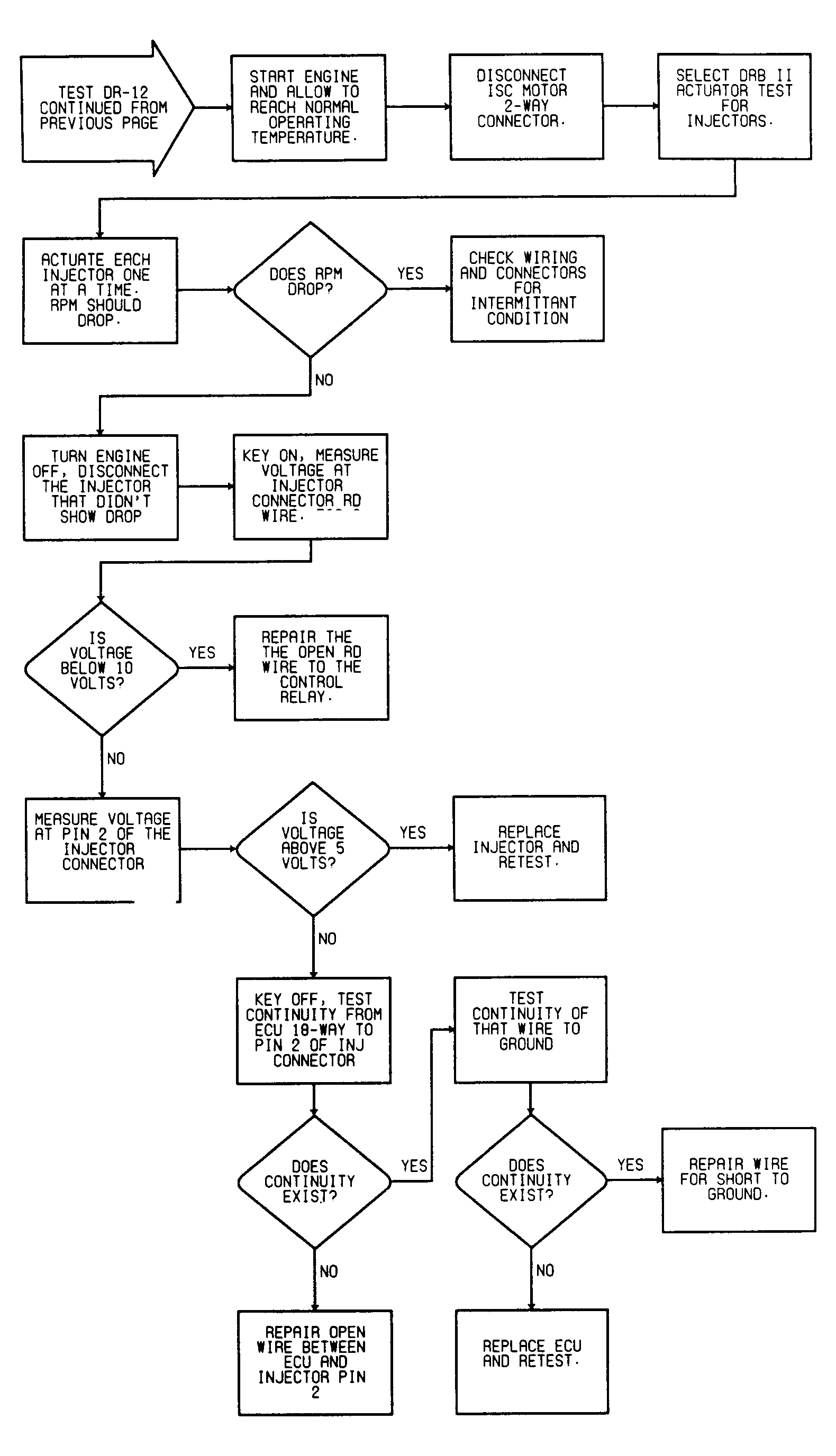

Fig 3: DR-12 Test Flow Chart (2 Of 2) Testing Injector Circuit
