Dr-16: No Fault Code Sensor Test

DR-16 EGR TEMP SENSOR TEST

DRB-II EGR Temp. Display Engine Condition
160°F Hot Idle (198°F Coolant)
350°F 25 MPH at 3500 RPM
311°F 55 MPH at 3500 RPM

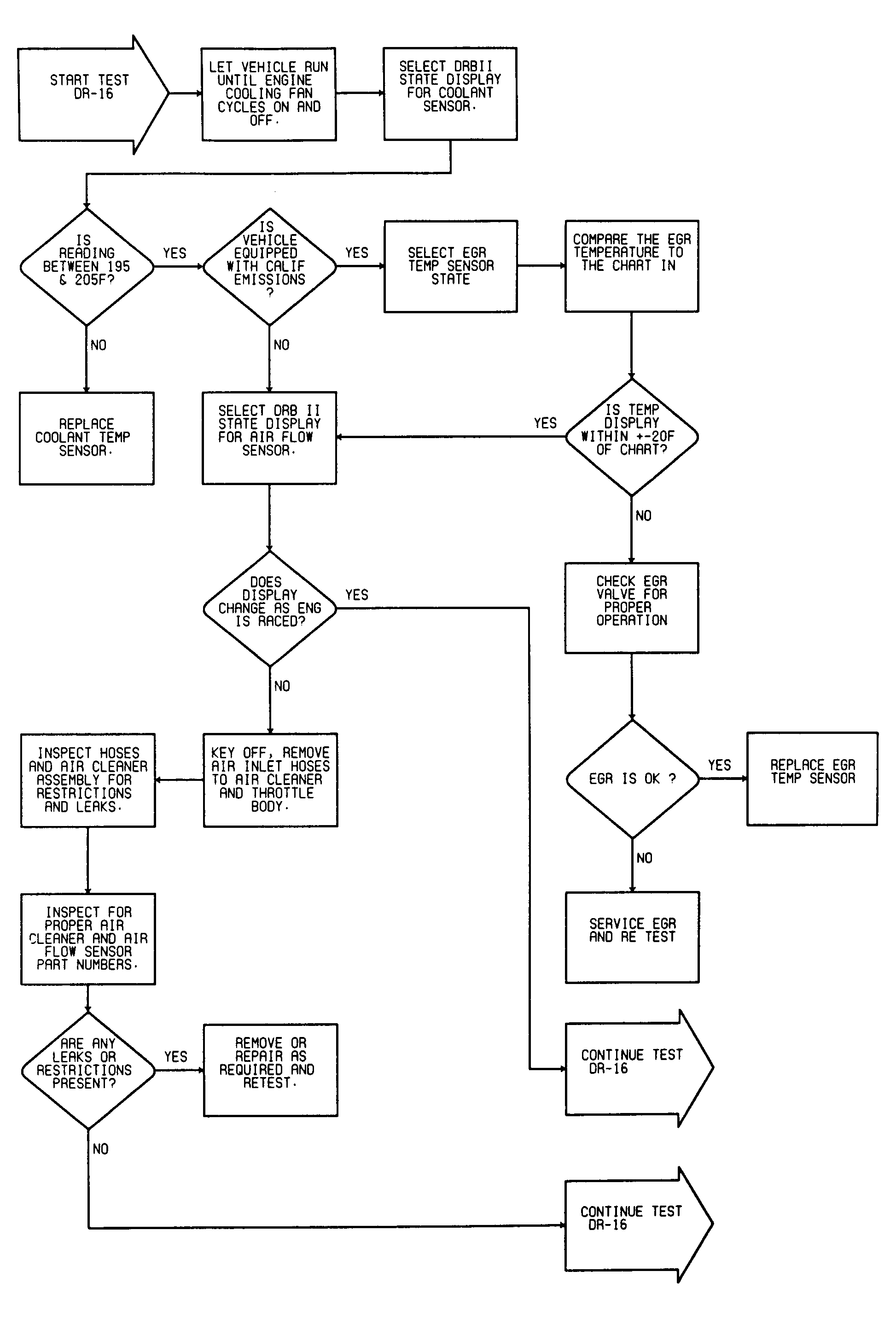

Fig 1: DR-16 Test Flow Chart (1 Of 5) No Fault Code Sensor Test
G91I17259
DR-16 BARO SENSOR TEST

Altitude (Ft) DRB-II BARO Reading (in. HG)
-1000 31.01
-900 30.90
Sea Level 29.92
500 29.38
1000 28.85
1500 28.33
2000 27.82
3000 26.81
4000 25.84
6000 23.97
8000 22.22
10,000 20.57
12,000 19.02
14,000 17.57

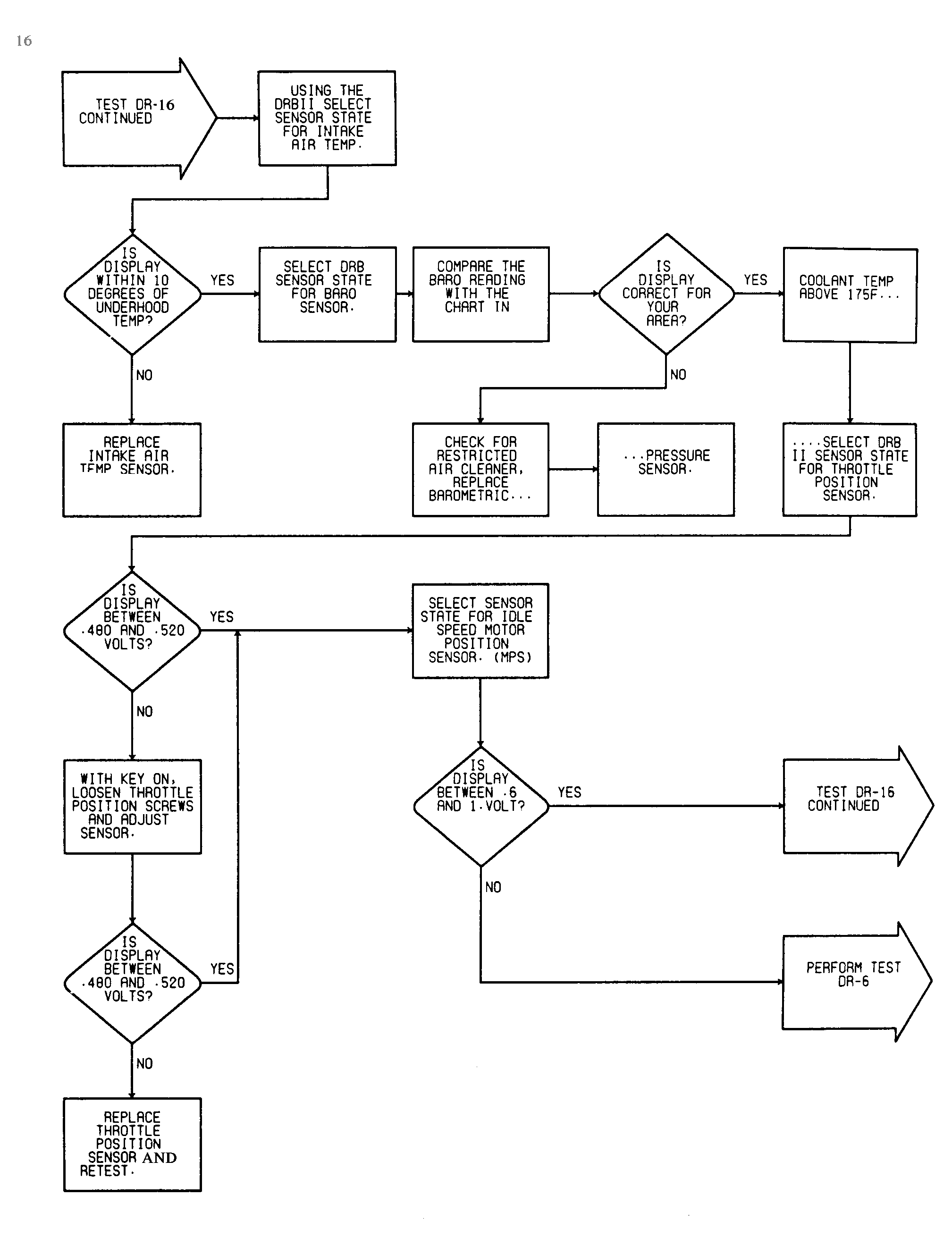

Fig 2: DR-16 Test Flow Chart (2 Of 5) No Fault Code Sensor Test
G91B17260

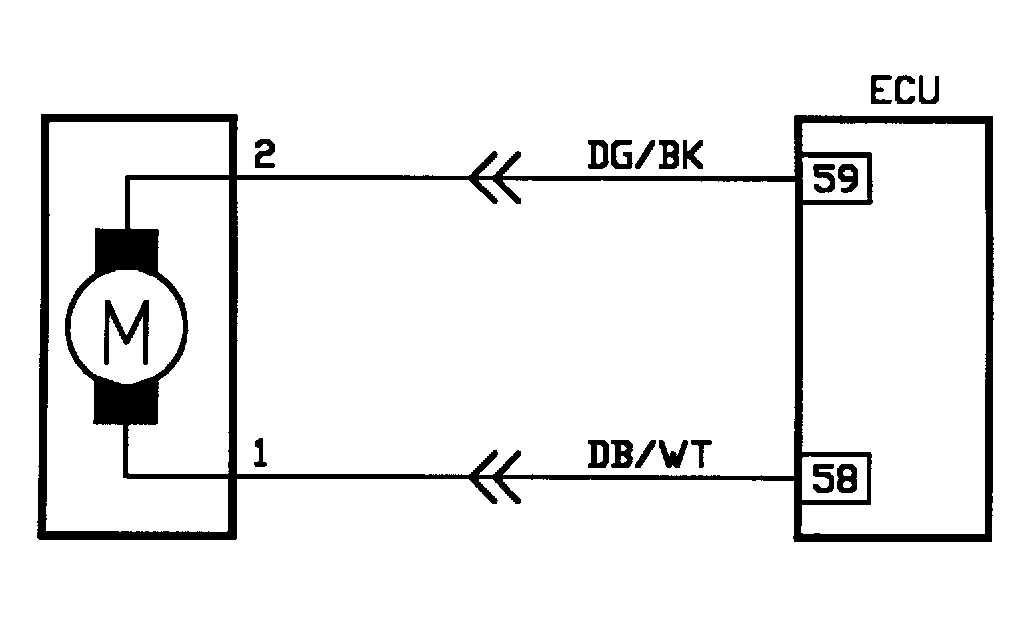

Fig 3: DR-16 Test Schematic - ISC Motor No Fault Code Sensor Test
G90F15391

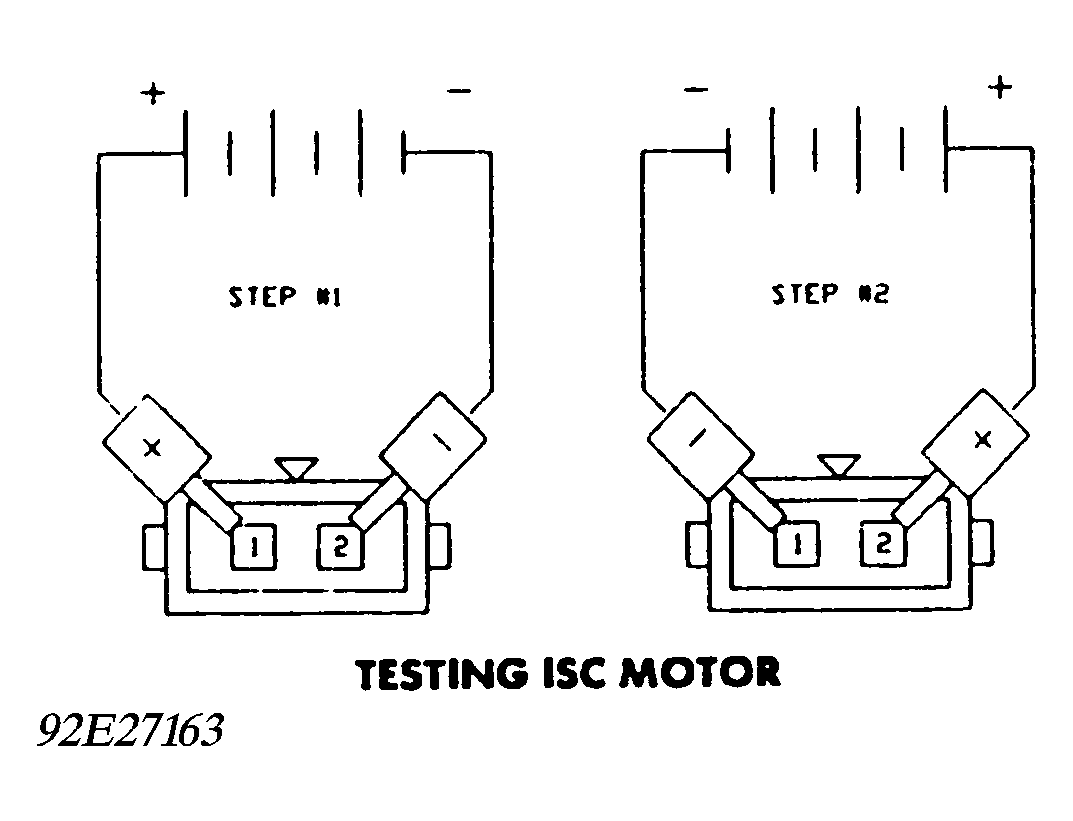

Fig 4: DR-16 Test - ISC Motor Test Diagram No Fault Code Sensor Test
G92E27163

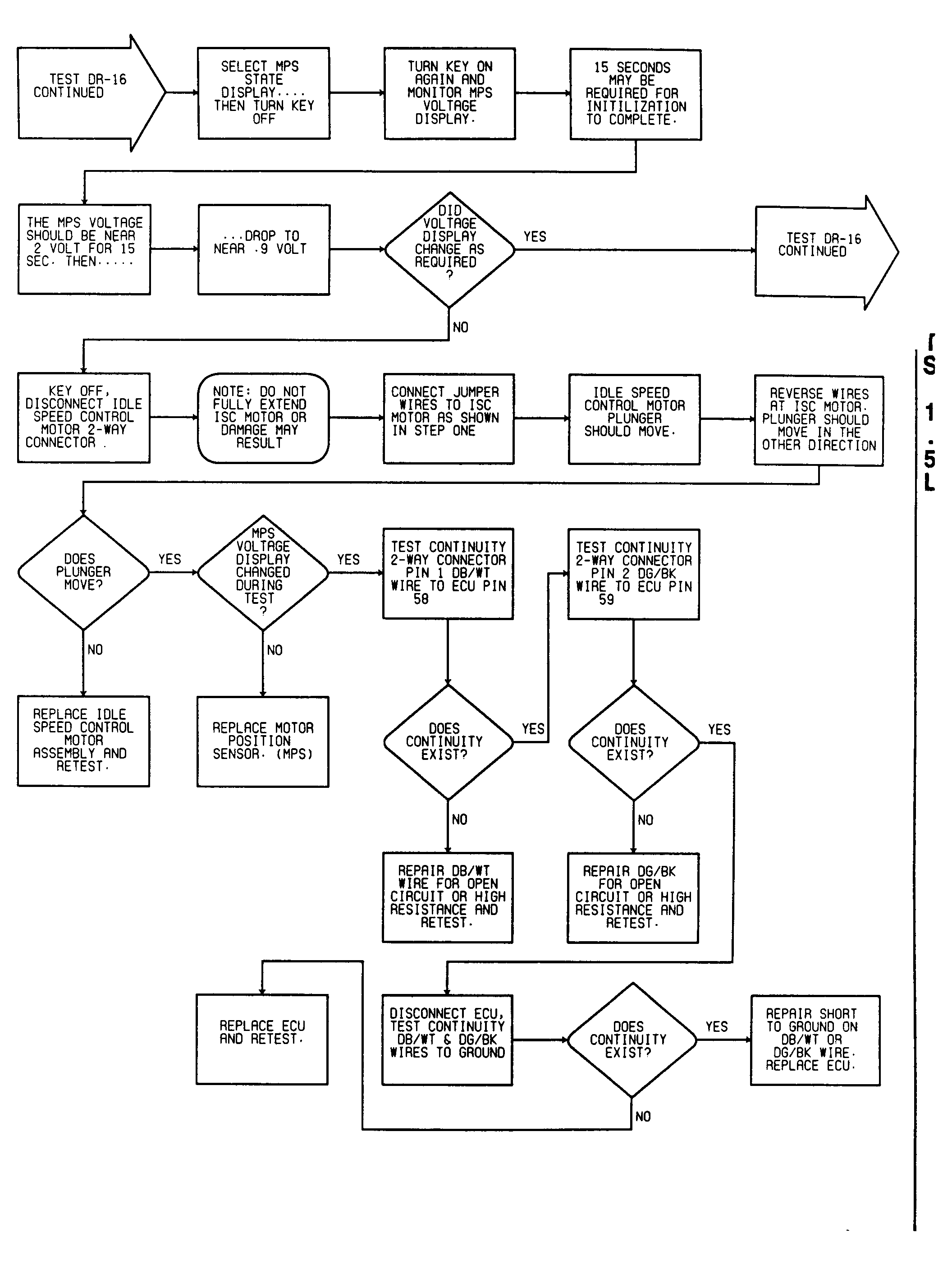

Fig 5: DR-16 Test Flow Chart (3 Of 5) No Fault Code Sensor Test
G91C17261

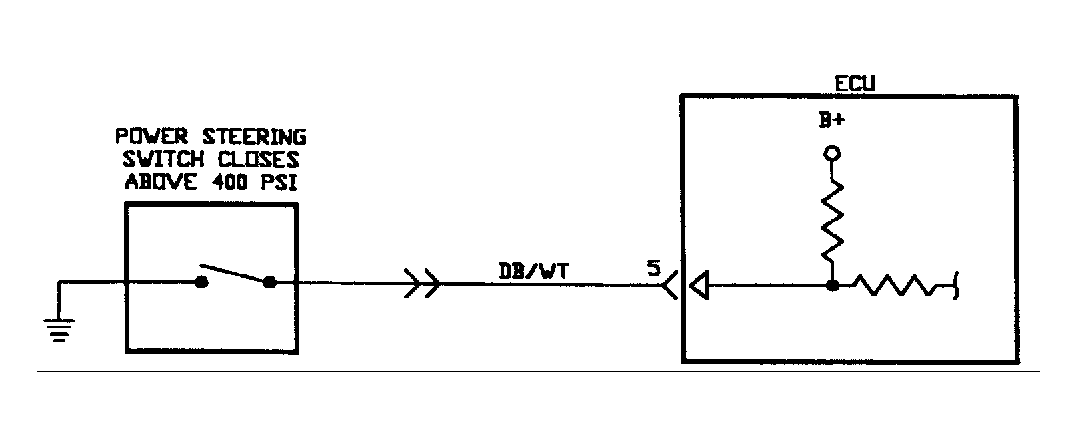

Fig 6: DR-16 Test Schematic - Power Steering Switch No Fault Code Sensor Test
G90G15392

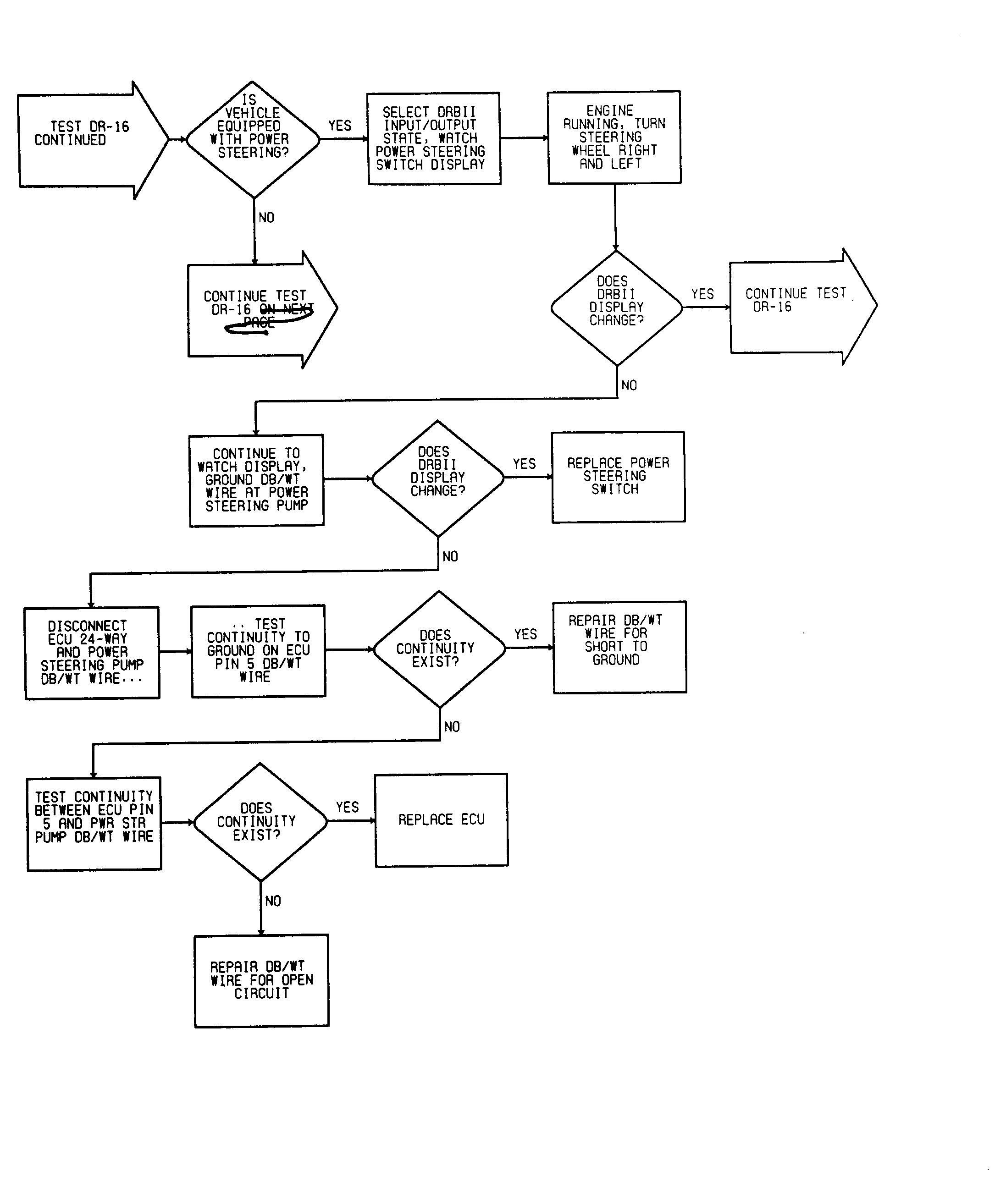

Fig 7: DR-16 Test Flow Chart (4 Of 5) No Fault Code Sensor Test
G91D17262

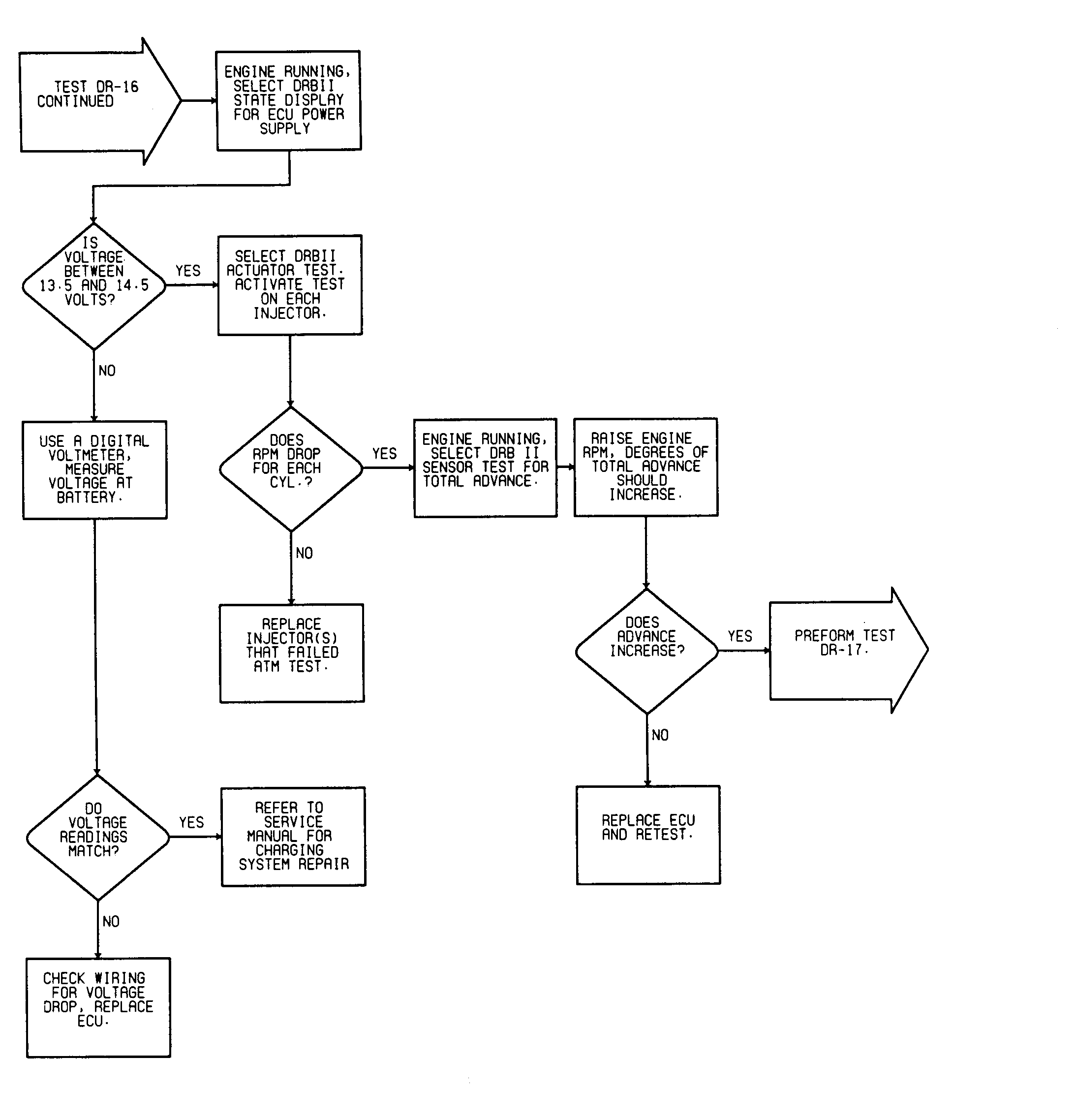

Fig 8: DR-16 Test Flow Chart (5 Of 5) No Fault Code Sensor Test
G91E17263
