Dr-17: Testing Purge Solenoid Circuit

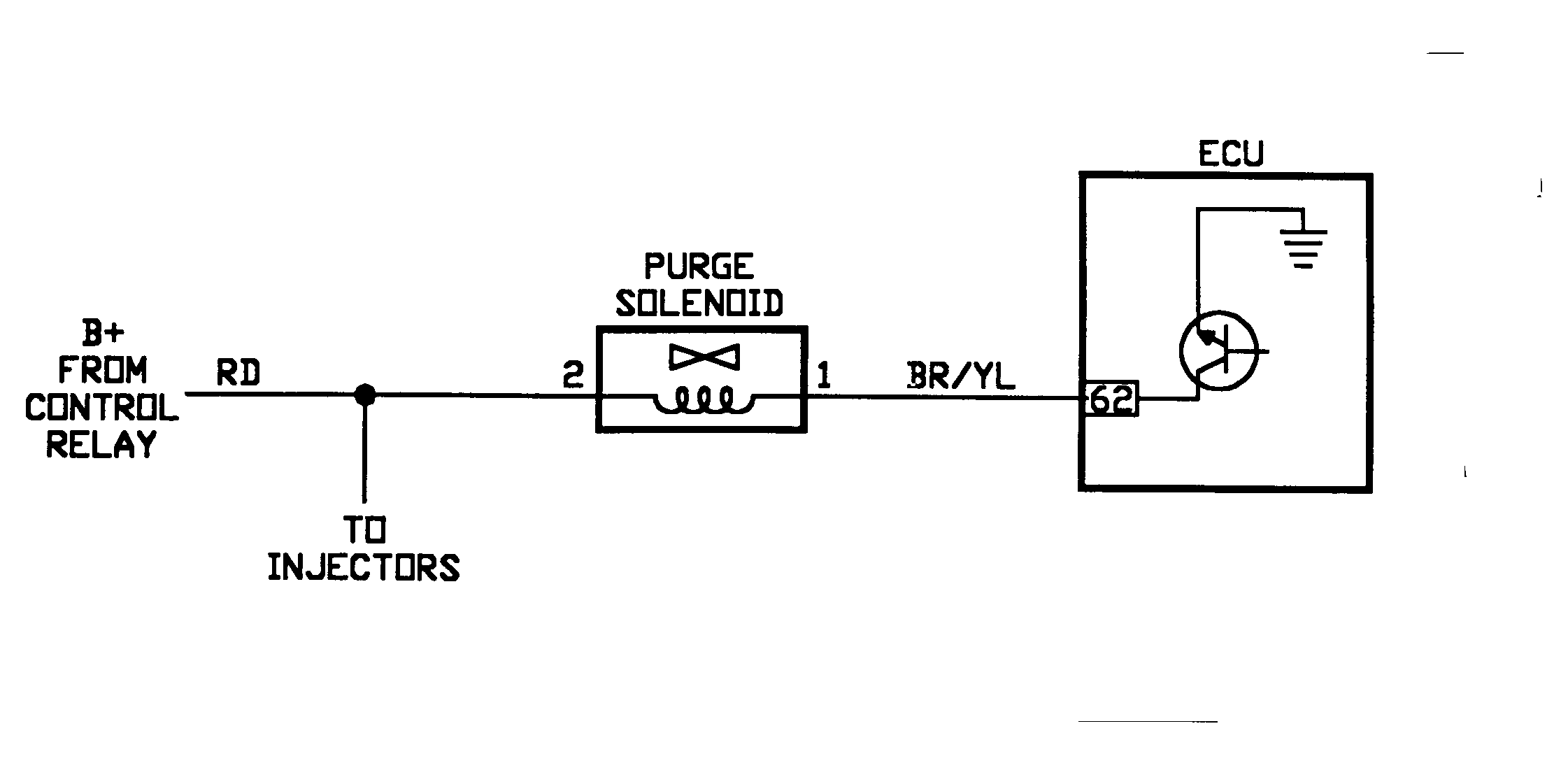

Fig 1: DR-17 Test Schematic Testing Purge Solenoid Circuit
G91I16699

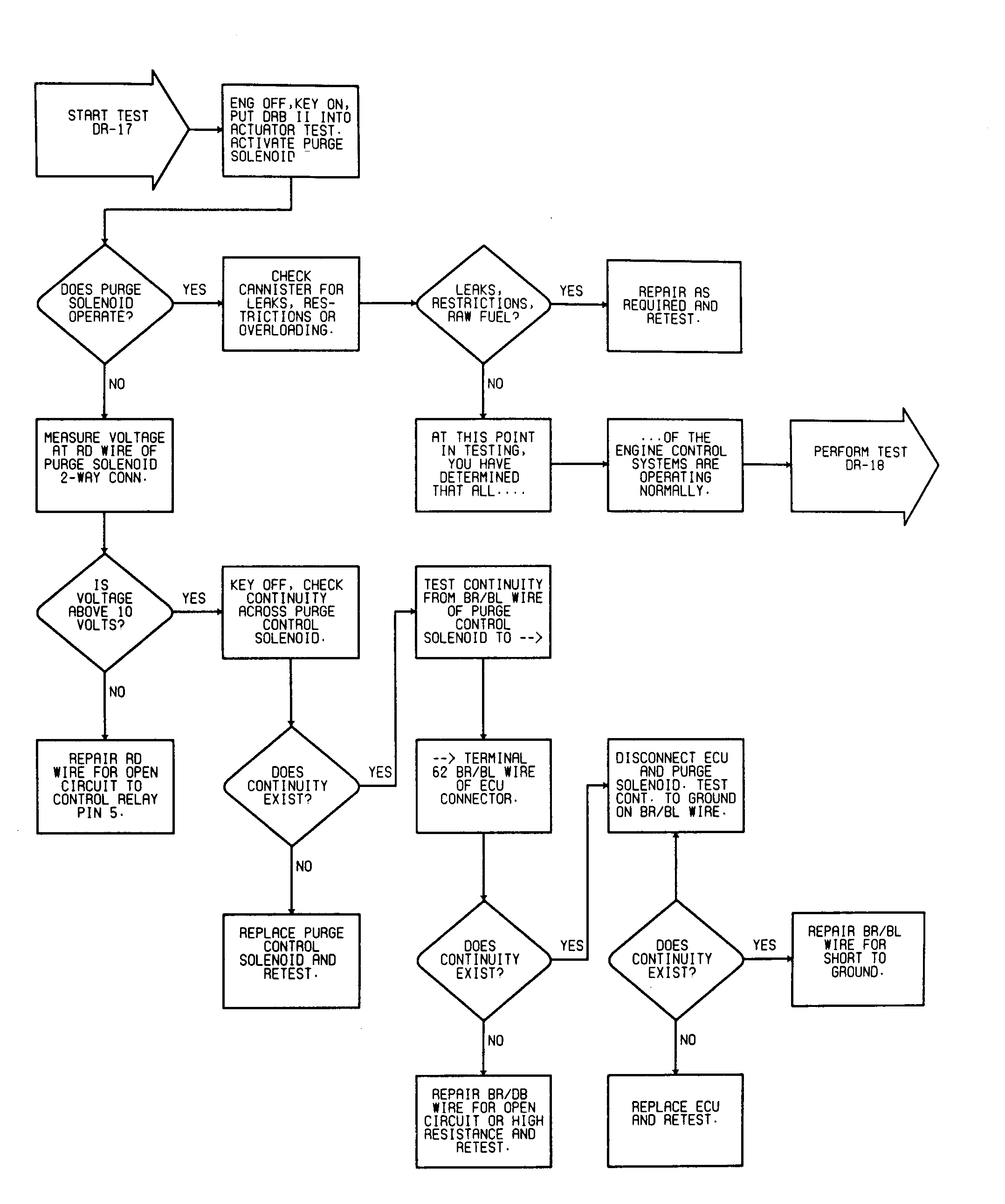

Fig 2: DR-17 Test Flow Chart Testing Purge Solenoid Circuit
G91F17264
