Dr-9: Testing Top Dead Center Sensor Circuit

Fig 1: DR-9 Test Schematic Testing Top Dead Center Sensor Circuit
G90C15372

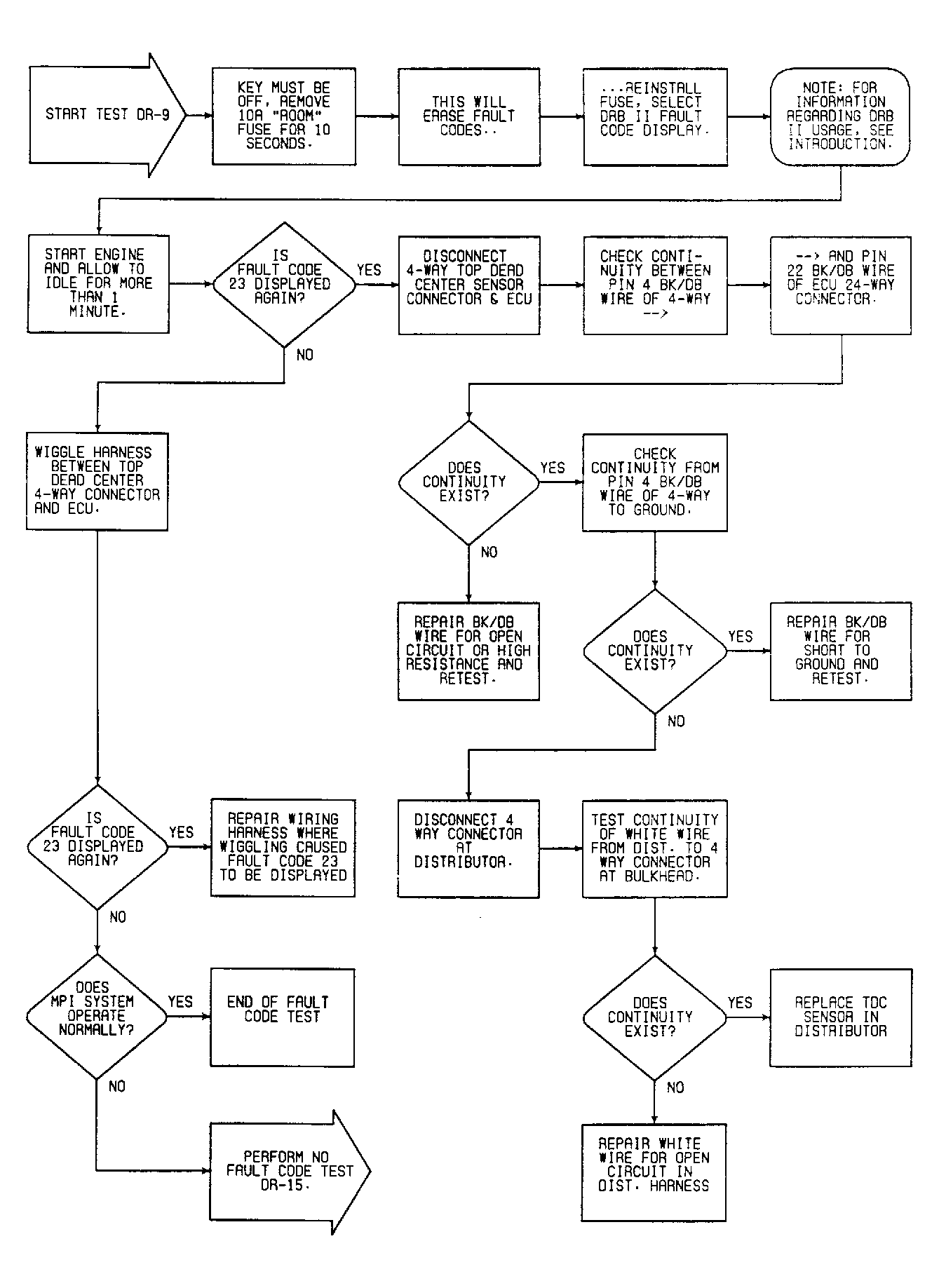

Fig 2: DR-9 Test Flow Chart Testing Top Dead Center Sensor Circuit
G90H15450
