Wiring Diagrams

NOTE: For additional wiring diagrams, connector identification and splice locations, see appropriate WIRING DIAGRAMS article.

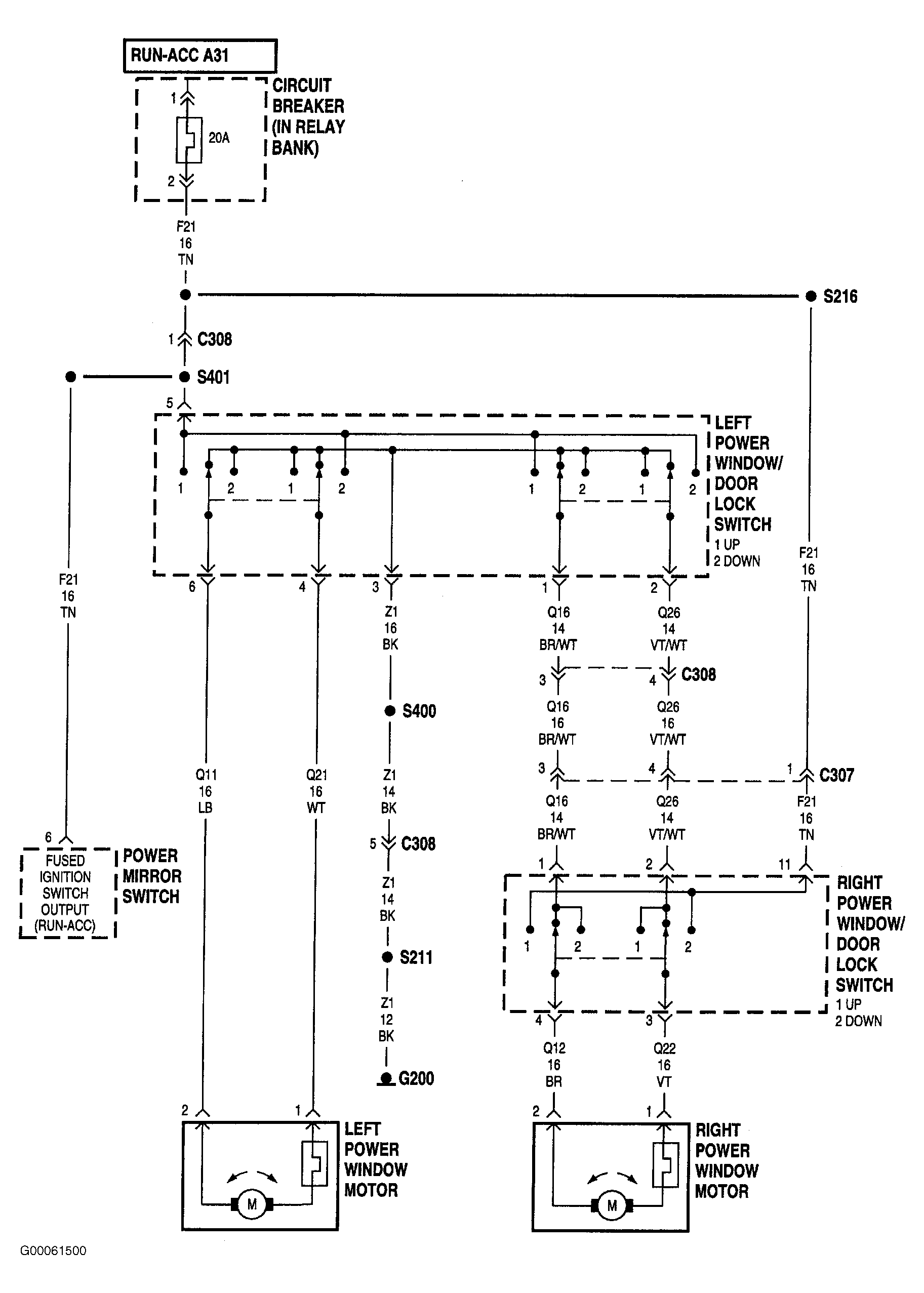

Fig 1: Power Window Wiring Diagram

Courtesy of CHRYSLER CORP.
