Component Locations

NOTE: For component locations, see Fig 1 -Fig 8 .
COMPONENT LOCATIONS

Component Location
Controller Anti-Lock Brake Module In Left Side Of Engine Compartment, Under Battery Tray
Data Link Connector Under Left Side Of Instrument Panel, Near Steering Column
Deck Lid Security Switch Behind Deck Lid Lock Cylinder
Driver's Air Bag Module In Center Of Steering Wheel
Electro-Mechanical Instrument Cluster Module Integral Part Of Instrument Cluster
Fuse Block Under Left Side Of Instrument Panel
Occupant Restraint Controller Under Center Of Floor Console
Passenger Air Bag Module On Right Side Of Instrument Panel
Powertrain Control Module In Engine Compartment, Between Air Cleaner & Radiator
Power Distribution Center In Left Rear Of Engine Compartment, Next To Battery
Remote Keyless Entry Module Center Of Instrument Panel, Under Top Cover
Sentry Key Immobilizer Module On Steering Column, Around Ignition Switch
Side Air Bags In Side Of Each Front Seat
Side Impact Air Bag Control Modules Below Front Door Opening, In Front Of "B" Pillar

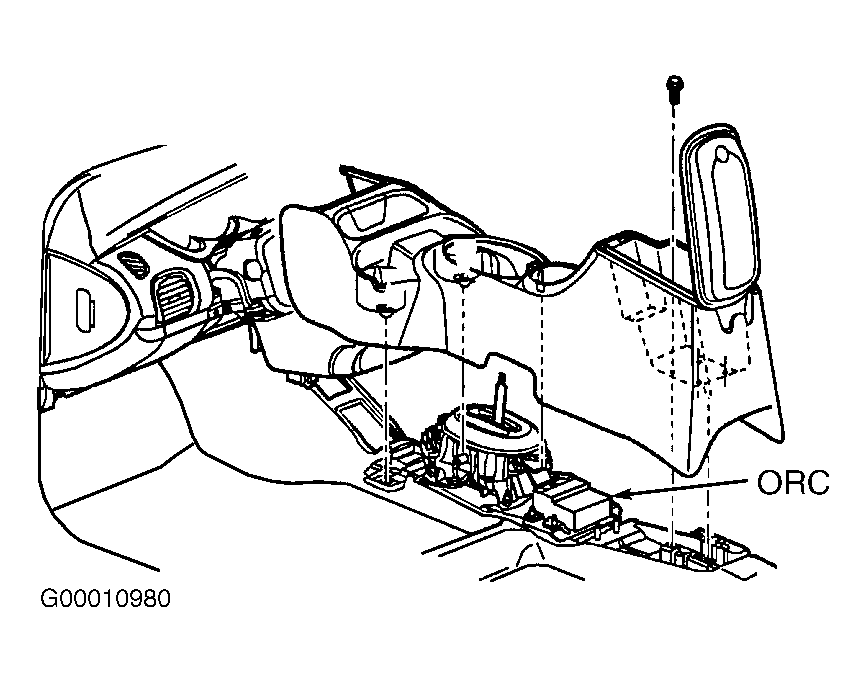

Fig 1: Locating Occupant Restraint Controller
G00010980Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: Locating Controller Anti-Lock Brake Module
G00012684Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Locating Components
G00012685Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Locating Powertrain Control Module
G00012687Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Locating Power Distribution Center
G00012688Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Locating Remote Keyless Entry Module
G99J52141Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Locating Sentry Key Immobilizer Module
G00012690Courtesy of DAIMLERCHRYSLER CORP.

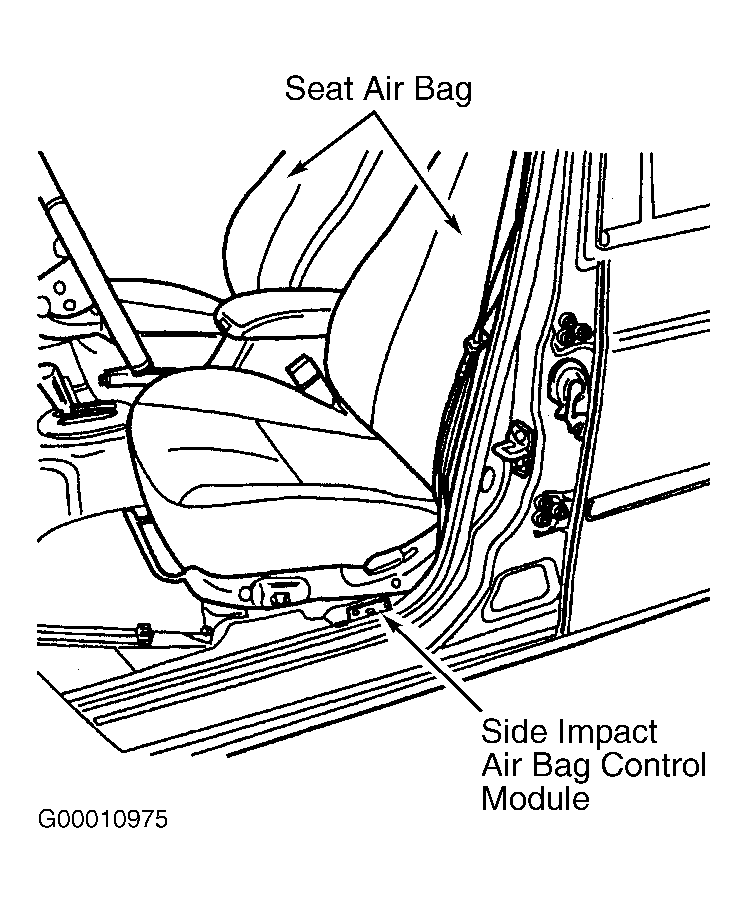

Fig 8: Locating Side Impact Air Bag Control Module (Left Side Shown; Right Side Is Similar)
G00010975Courtesy of DAIMLERCHRYSLER CORPORATION
