Camshaft Position Sensor: Description

The camshaft position sensor (CMP) is mounted in the front of the timing case cover (see Fig 1 ). It is a hall effect device.

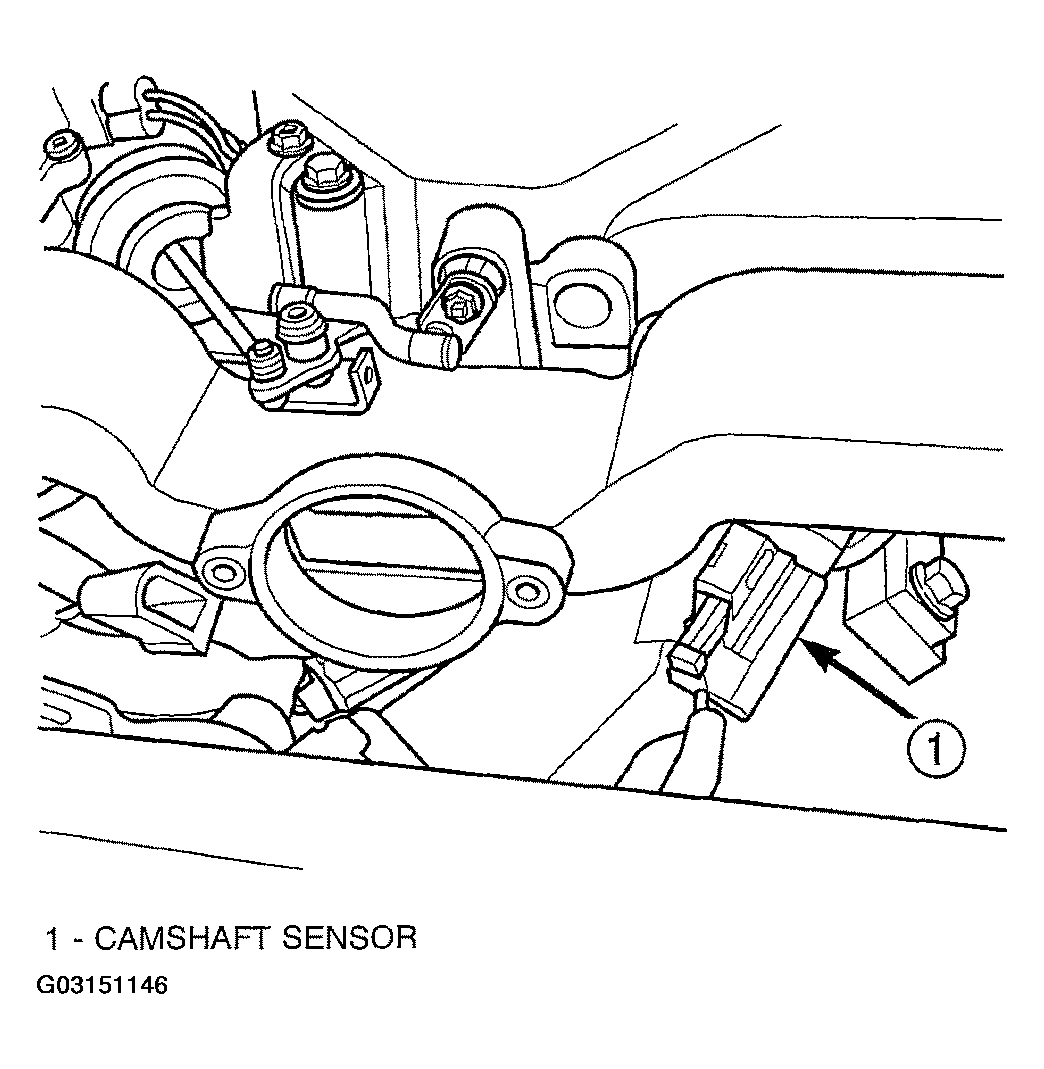

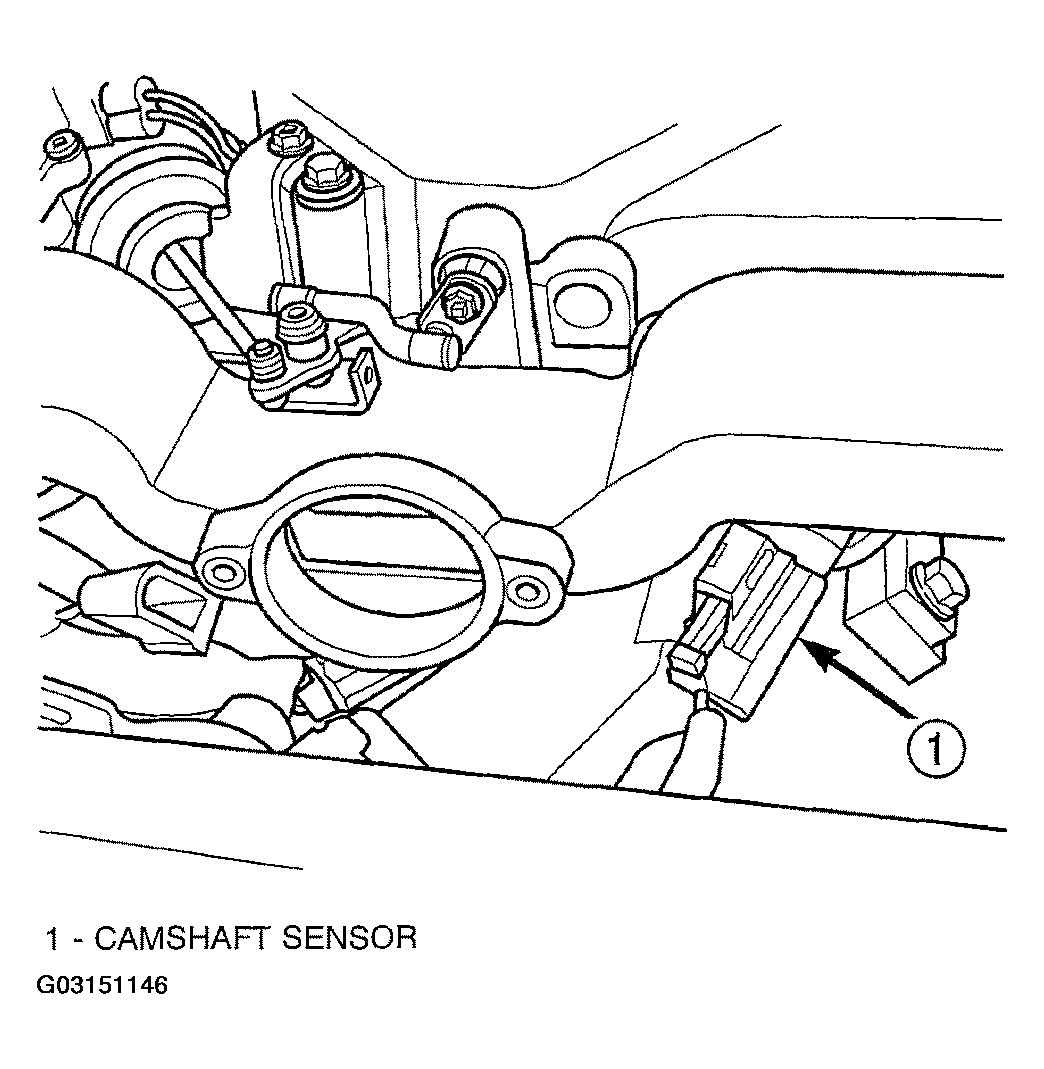

Fig 1: Camshaft Position Sensor Location
