1968 Wheel Alignment Specifications

R - Right F - Front Rr - Rear L - Left Man. - Manual Steering Pwr. - Power Steering

Steering Axis Inclin.

Caster (Degrees)

Camber (Degrees)

Toe-In (Inches)

Toe-Out On Turns

Inner

Outer

AMERICAN MOTORS

Man Neg 1/2 to Pos 1/2

American, Javelin & AMX

6°30'

Pwr Pos 1/2 to Pos 1 1/2

Neg 3/8 to Pos 3/8

1/16-3/16 ⁽¹⁾

25°

22°

Rebel & Ambassador

6°41'

0 to Neg 1 ⁽³⁾

Neg 3/8 to Pos 3/8

1/16-3/16 ⁽¹⁾

25°

22°

CHRYSLER CORP.

Man 0 to Neg 1

L Pos 1/4 to Pos 3/4 ⁽⁶⁾

All Models

7°30' ⁽⁵⁾

Pwr Pos 1/4 to Pos 1 1/4

R 0 to Pos 1/2 ⁽²⁾

3/32-5/32 ⁽¹⁾

20°

⁽⁸⁾

FORD MOTOR CO.

Ford & Mercury

7°45'

0 to Pos 2 ⁽⁹⁾ 10

Neg 1/4 to Pos 1 1/4 ⁽⁶⁾⁽⁹⁾

1/8-1/4

20°

18°48'

Fairlane, Falcon, Montego

Man 18°7.5'

7°

Neg 1 1/2 to Pos 1/2 ⁽³⁾⁽⁹⁾

Neg 1/2 to Pos 1 ⁽⁷⁾⁽⁹⁾

1/8-3/8 ⁽¹²⁾

20°

Pwr 17°52.5'

Mustang & Cougar

6°45'

Neg 3/4 to Pos 1 1/4 ⁽⁶⁾⁽⁹⁾

Pos 1/4 to Pos 1 3/4 ⁽⁹⁾⁽¹⁰⁾

1/16-5/16 ⁽¹¹⁾

20°

18°45'

Thunder bird

7°45'

0 to Pos 2 ⁽⁹⁾⁽¹⁰⁾

Neg 1/4 to Pos 1 1/4 ⁽⁶⁾⁽⁹⁾

1/16-5/16 ⁽¹¹⁾

20°

18°15'

Lincoln

.............

Neg 2 1/2 to Neg 1/2 ⁽⁹⁾⁽¹³⁾

Neg 3/4 to Pos 1 1/4 ⁽⁶⁾⁽⁹⁾

0-1/4 ⁽¹⁾

20°

17°45'

GENERAL MOTORS

Buick

Special, Skylark, Sportwagon, G.S.350, 400

9°

0 to Neg 1 ⁽³⁾

0 to Pos 1 ⁽⁶⁾

1/8-1/4

20°

18°30'

LeSabre, Electra, Wildcat, Riviera

10°45'

Pos 1 to Pos 1 1/2 ⁽⁹⁾⁽¹⁰⁾

Neg 1/4 to Pos 3/4 ⁽⁶⁾⁽⁹⁾

7/32-5/16 ⁽¹²⁾

20°

⁽¹⁵⁾

Cadillac

L Neg 1/8 to Pos 3/8 ⁽¹⁷⁾⁽¹⁸⁾

(Except Eldorado)

...........

Neg 1/2 to Neg 1 1/2 ⁽⁹⁾⁽¹⁶⁾

R Neg 3/8 to Pos 1/8 ⁽¹²⁾

3/16-1/4

20°

18°10'

Eldorado

...........

Neg 1 1/2 to Neg 2 1/2 ⁽¹⁹⁾

Neg 3/8 to Pos 3/8 ⁽¹⁸⁾

0-1/8

20°

18°10'

Chevrolet

7°-8°

Pos 1/4 to Pos 1 1/4

Neg 1/4 to Pos 3/4

1/8-1/4

20°

18°54'

Chevelle

7°45'-8°45'

Neg 1 1/2 to Neg 1/2 ⁽²¹⁾

0 to Pos 1

1/8-1/4

20°

18°36'

Chevy II & Camaro

8°15'-9°15'

0 to Pos 1

Neg 1/4 to Pos 3/4

1/8-1/4

.....

............

Corvair

6°-7°

Pos 1 3/4 to Pos 2 3/4

F & Rr Pos 1/2 to Pos 1 1/2

F & Rr 3/16-5/16

20°

18°

Man Pos 1/2 to Pos 1 1/2

F Pos 1/4 to Pos 1 1/4

F 3/16-5/16

.....

............

Corvette

6°30'-7°30'

Pwr Pos 1 3/4 to Pos 2 3/4

Rr Neg 1 3/8 to Neg 3/8

Rr 1/32-3/32

Oldsmobile

F-85, Cutlass, 442, Vista-Cruiser

9°

Neg 1/2 to Neg 2

Neg 1/4 to Pos 1/2 ⁽⁹⁾

1/8-3/16

20°

18° 36'

Man 18° 18'

88, 98

11°

Neg 1/2 to Neg 1 1/2

Neg 1/4 to Pos 1/2 ⁽⁹⁾

1/8-3/16

20°

Pwr 17° 42'

F Neg 3/4 Pos 1/2⁽⁹⁾⁽²²⁾

F 0-1/16

Toronado

11°

Neg 1 1/2 to Neg.2 1/2 ⁽¹⁹⁾

Rr Neg 1/4 to Pos 1/2 ⁽⁹⁾

⁽²³⁾

20°

18° 12'

Pontiac

8° 30' ± 30'( )

Neg 1 1/2° ± 1/2°

Pos 1/4 ± 1/2°

0-1/8

20°

18°

Tempest (Exc. Sta. Wgn.)

9° ± 30'

Neg 1 1/2° ± 1/2°

Pos 1/4 ± 1/2°

0-1/8

20°

18°

Station Wagon

9°± 30'

Neg 2° ± 1/2°

Pos 1/4 ± 1/2°

0-1/8

20°

18°

Firebird

8° 5 ± 30'⁽²⁴⁾

Pos 1/2° ± 1/2°

Pos 1/4 ± 1/2°

1/8-1/4

20°

18°

⁽¹⁾	1/8" preferred.

⁽²⁾	18° 40' (American); 18° (Javelin).

⁽³⁾	Neg 1/2° preferred.

⁽⁴⁾	At Pos 1° Camber.

⁽⁵⁾	Except Imperial, Fury & VIP which are 9°.

⁽⁶⁾	Pos 1/2° preferred.

⁽⁷⁾	Pos 1/4° preferred.

⁽⁸⁾	17° 36' (Dart); 18° 48' (Fury & VIP); 17° 48' (Coronet & Charger); 17° 54' (Imperial); 17° 30' (Barracuda, Signet, Valiant); 17° 48' (Belvedere); 18° 48' (Chrysler, Polara, Monaco).

⁽⁹⁾	Maximum variation between wheels: 1/2°.

⁽¹⁰⁾	Pos 1° preferred.

⁽¹¹⁾	3/16" preferred.

⁽¹²⁾	1/4" preferred.

⁽¹³⁾	Neg 1 1/2° preferred.

⁽¹⁴⁾	Pos 1 1/4° preferred.

⁽¹⁵⁾	18° (LeSabre); 17° (All Others).

⁽¹⁶⁾	Neg 1° preferred.

⁽¹⁷⁾	Left wheel must have 1/4-1/2° more Pos Caster

⁽¹⁸⁾	0° preferred.

⁽¹⁹⁾	Neg 2° preferred.

⁽²⁰⁾	1/16" preferred.

⁽²¹⁾	Except El Camino & SS 396 which are Neg 1° to 0°.

⁽²²⁾	Pos 1/8° preferred.

⁽²³⁾	Toe-In 0 to 1/16".

⁽²⁴⁾	At Pos 1/2° camber.

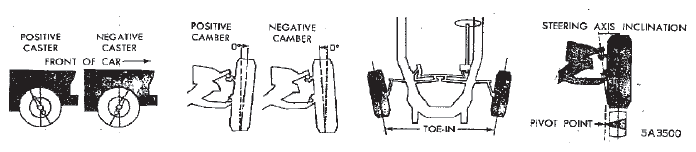

Fig 1: Wheel Alignment Angles

Courtesy of CHRYSLER GROUP, LLC
