Transmission Position Sensor/Switch: Testing and Inspection

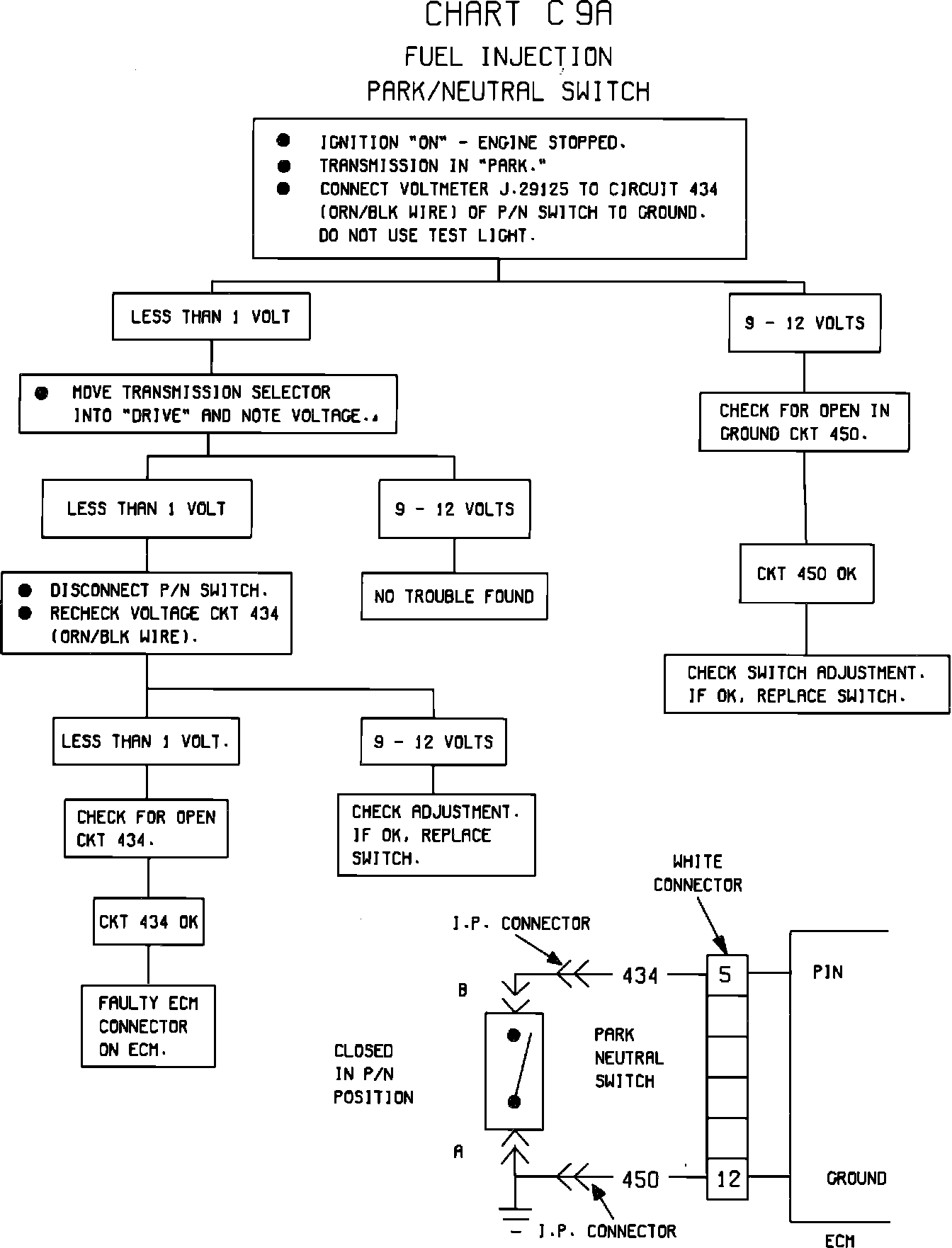

Fig. 36 Chart C-9A Park/Neutral Switch 1982-83:
