A/C Relay

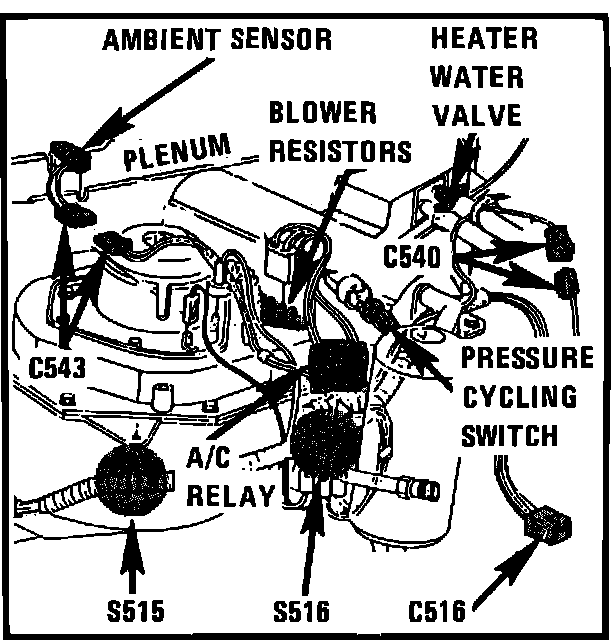

RH Side Of Engine Cowl.:
RH Side Of Engine Cowl
Applicable to: Grand Lemans, Lemans, Grand Prix & 1982-85 Bonneville
