Throttle Position Sensor: Locations

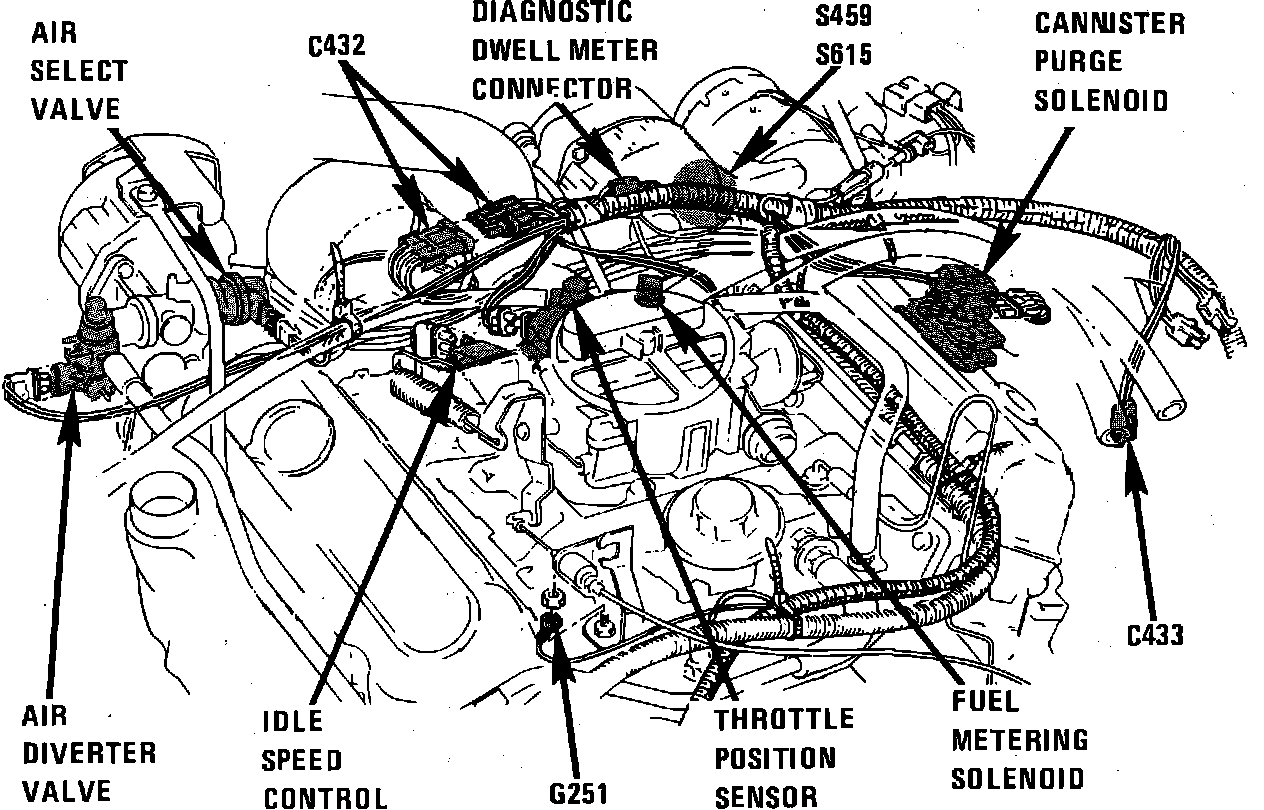

LH Side Of V8 Engine.:




Attached To LH Front Of Carburetor

Applicable to: 1981 Grand Lemans, Lemans & Grand Prix

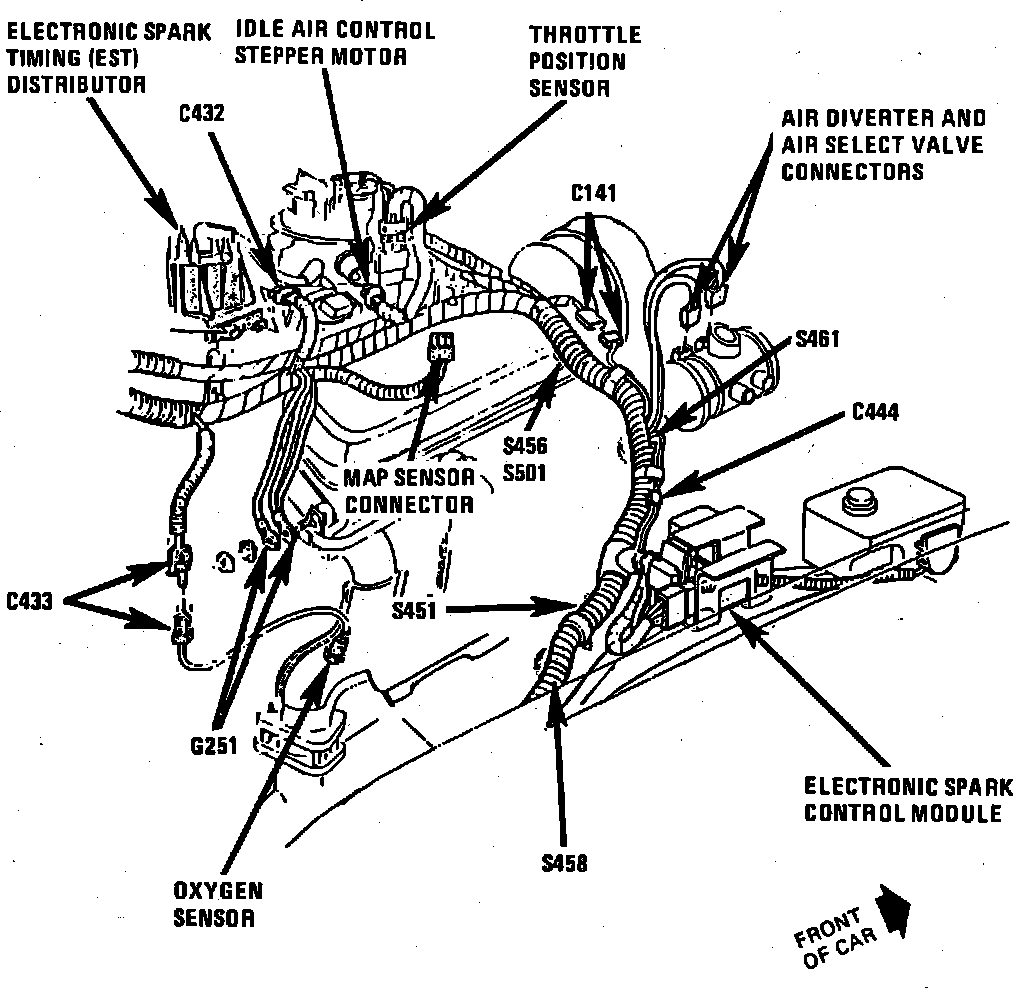

RH Side Of 4.3L:




Attached To LH Front Of Carburetor

Applicable to: 3L Engine. 1985 Grand Prix & Bonneville

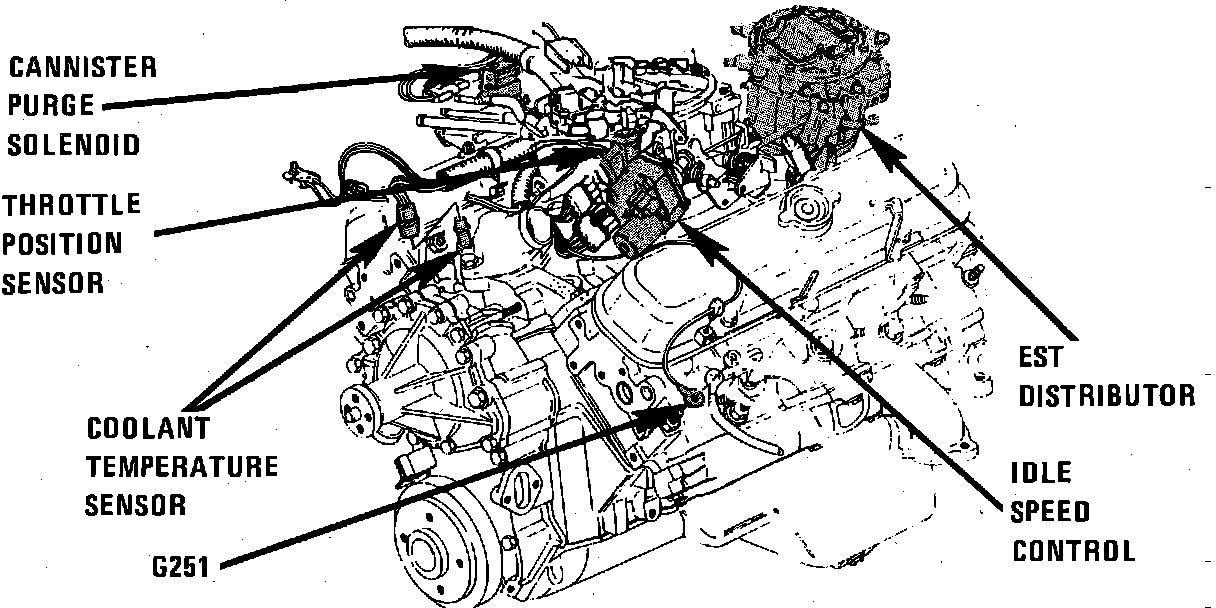

Top Of V6 Engine.:




Attached To LH Front Of Carburetor

Applicable to: Grand Lemans, Lemans, 1981-82 Grand Prix & 1982 Bonneville
