Idle/Throttle Speed Control Unit

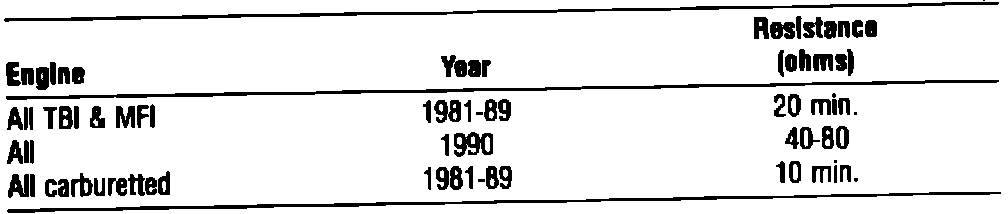

IDLE SPEED CONTROL:
All engines with
ISC
.
Measured between terminals A & B and C & D.
