Fuel Meter Cover

  1. Remove 5 cover-to-meter body screws and lock washers. Lift off fuel meter cover with fuel pressure regulator assembly attached. DO NOT  remove fuel meter cover gasket. See Fig 1 .
    WARNING: DO NOT  remove screws attaching pressure regulator to fuel meter cover. The pressure regulator includes a spring under heavy tension which may cause personal injury if released. DO NOT  immerse cover and regulator assembly in any type of cleaning solvent.
  2. Remove fuel pressure regulator dust seal from fuel meter body.

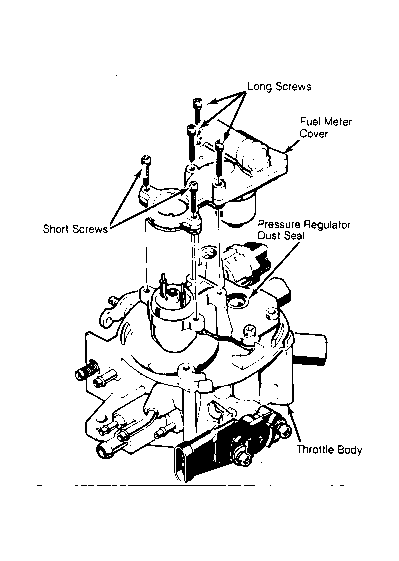

Fig 1: Removing Fuel Meter Cover Assembly Do not remove fuel meter cover gasket at this time.
G3234
