Wiring Diagrams

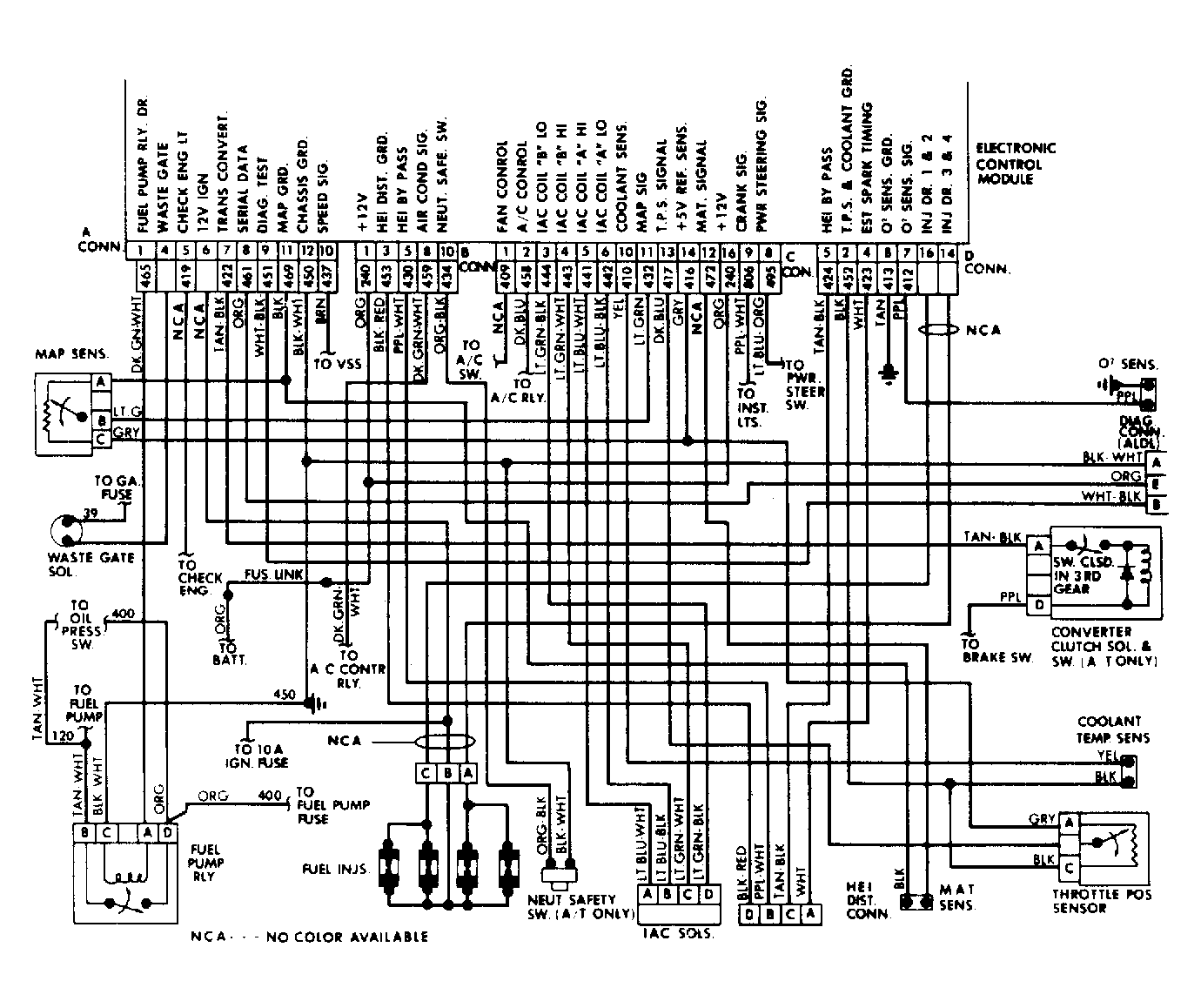

Fig 1: Wiring Diagram for 1.8L Turbo Port Fuel Injection System
G5370

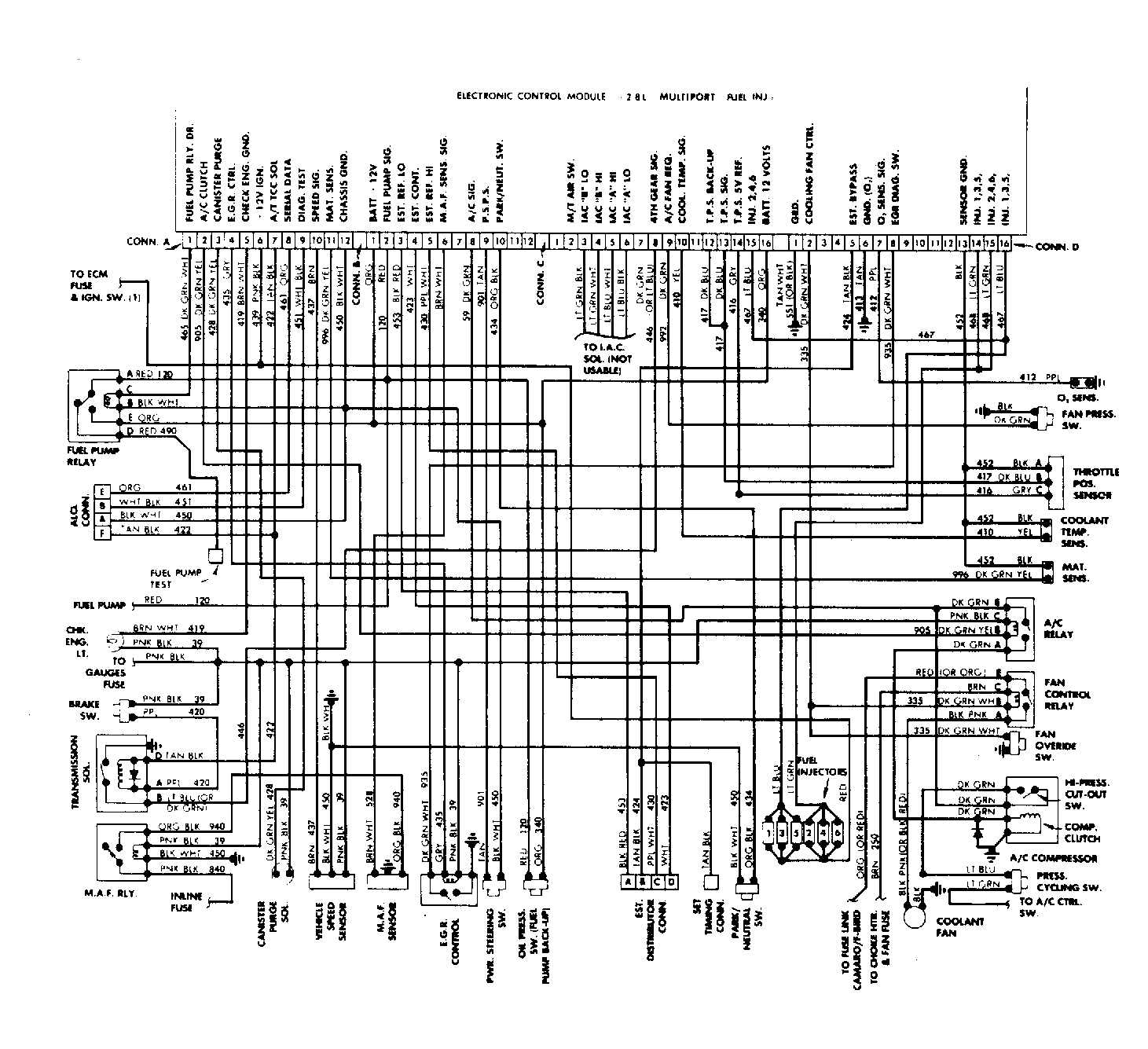

Fig 2: Wiring Diagram for 2.8L (FWD) Port Fuel Injection System
G5371

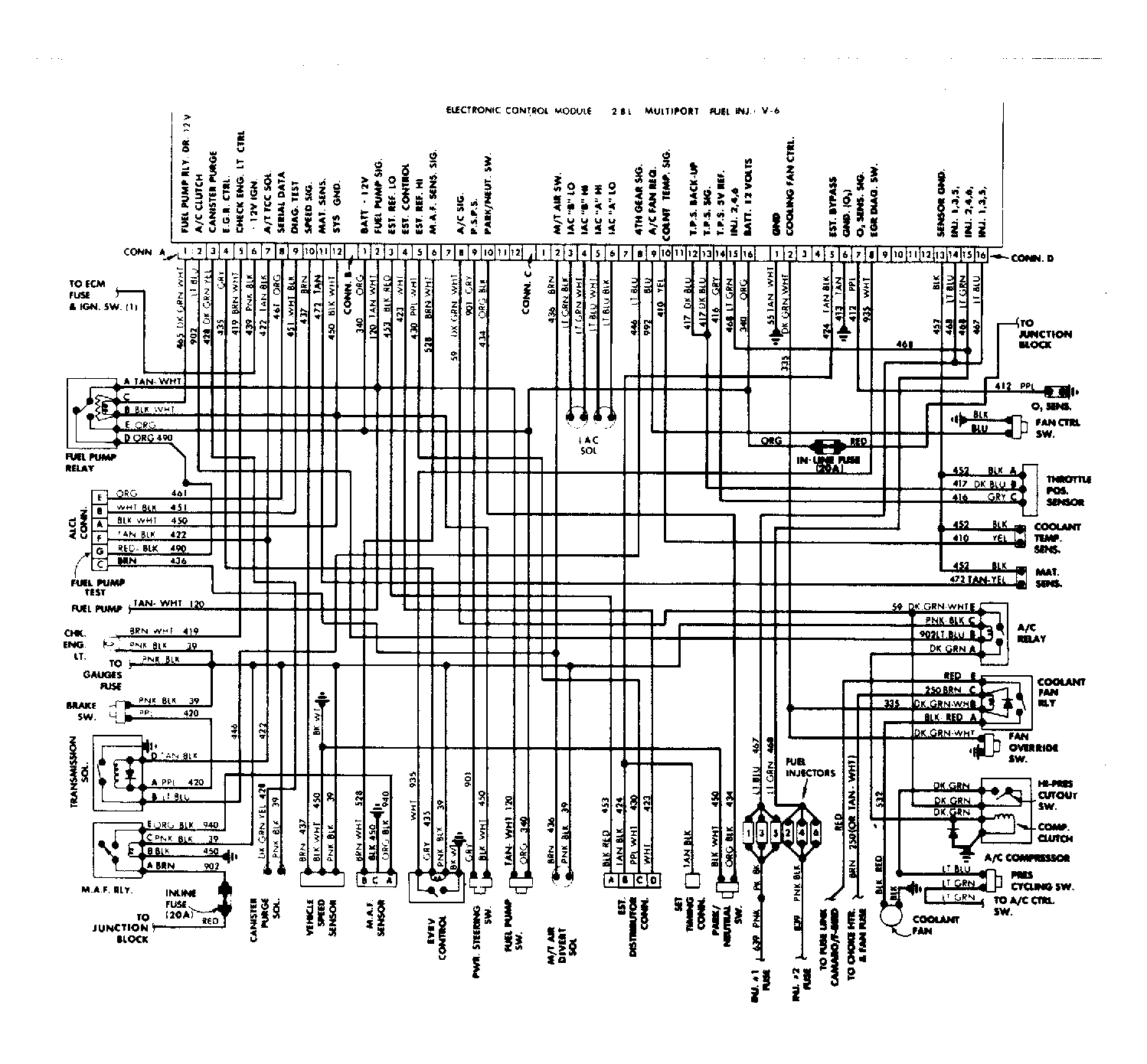

Fig 3: Wiring Diagram for 2.8L (RWD Except Fiero) Port Fuel Injection System
G5372

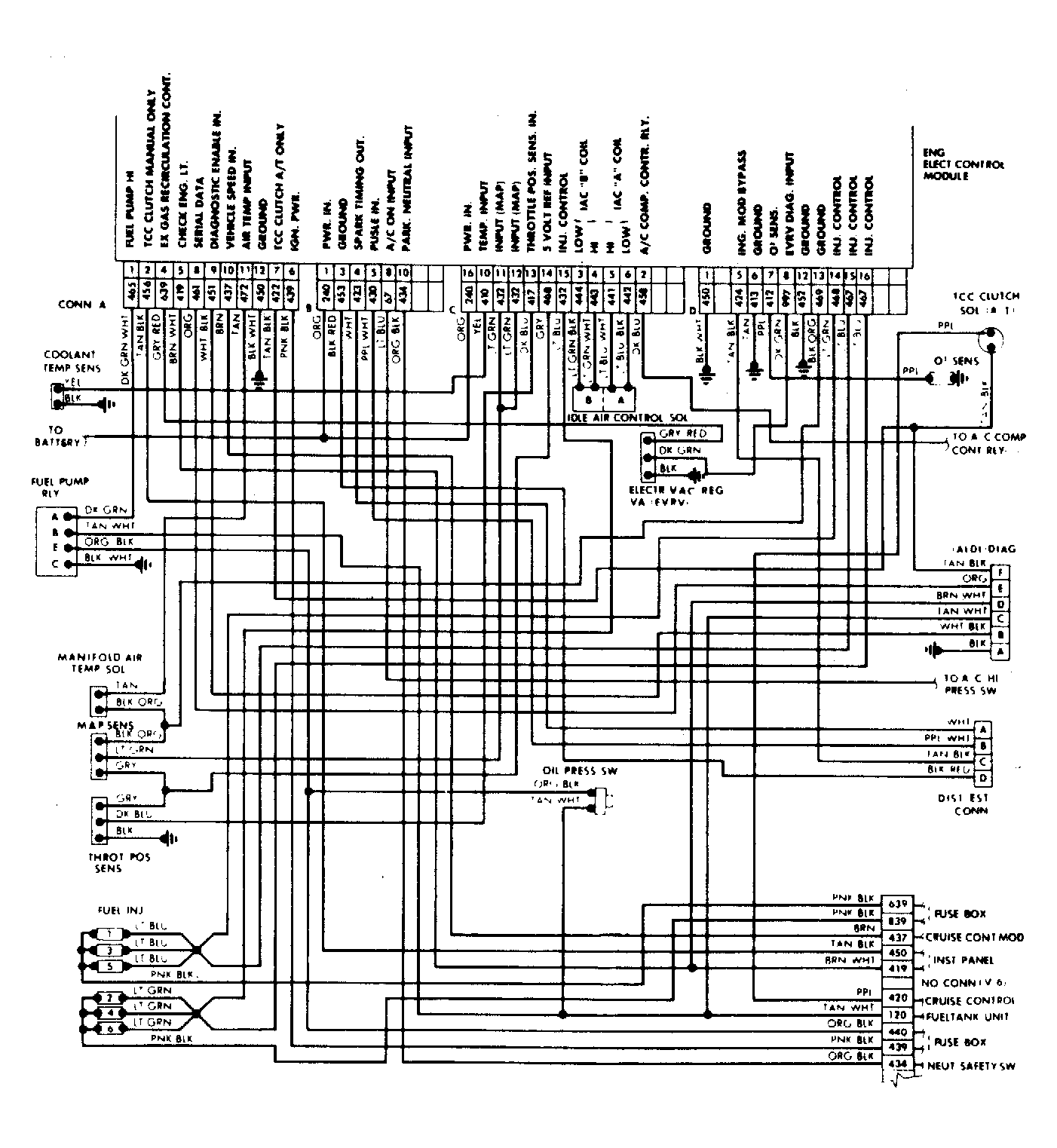

Fig 4: Wiring Diagram for 2.8L Fiero Port Fuel Injection System
G5373
Fig 5: Wiring Diagram for 3.0L Port Fuel Injection System
G15415

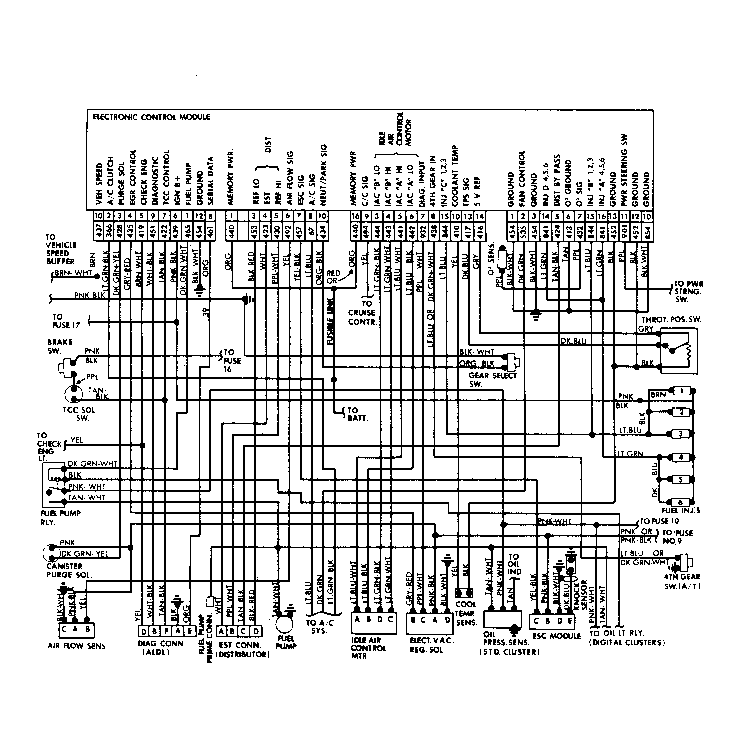

Fig 6: Wiring Diagram for 3.8L (Exc. Turbo) Port Fuel Injection System
G5374
Fig 7: Wiring Diagram for 3.8L Turbo Port Fuel Injection System
G5375

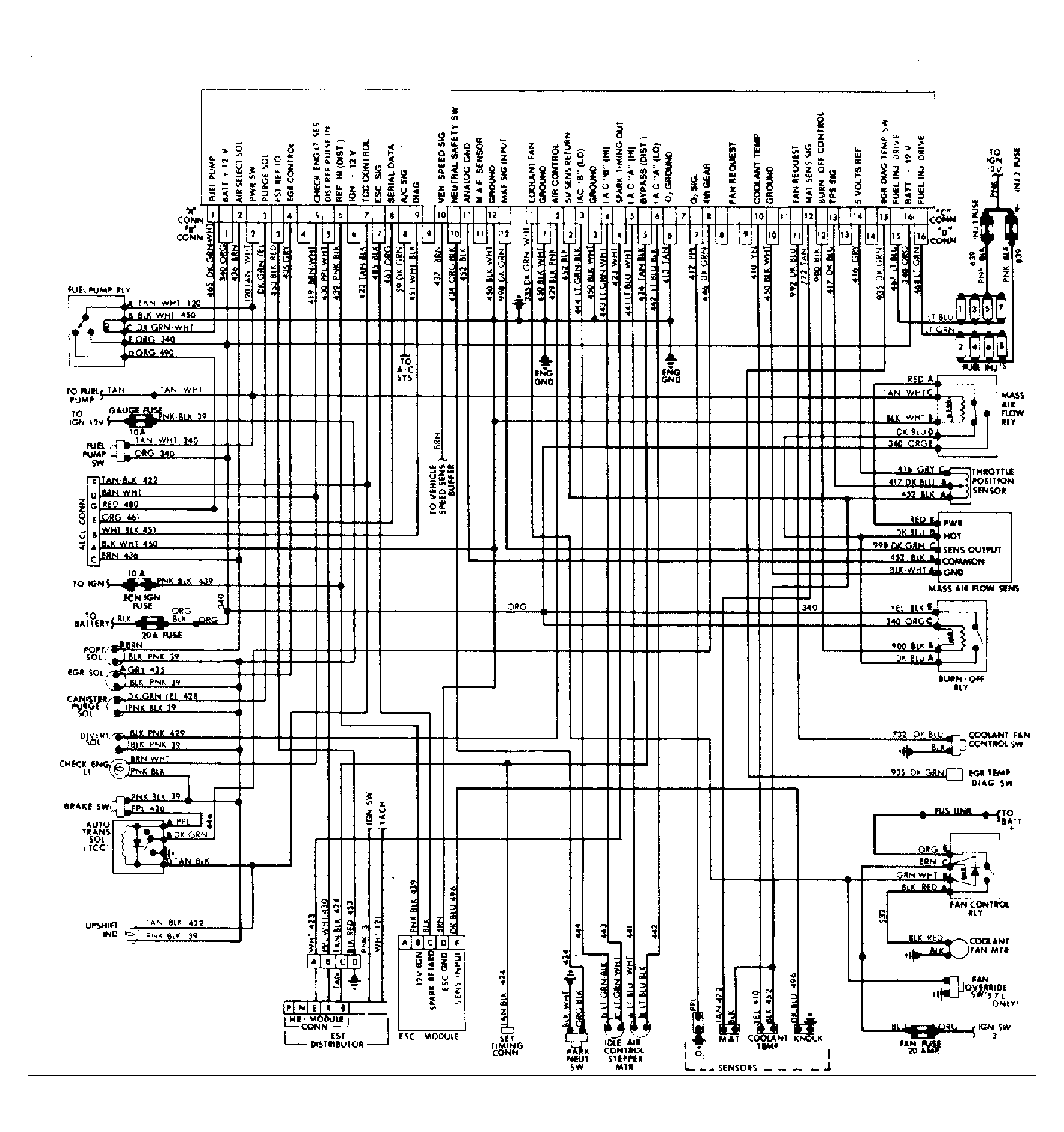

Fig 8: Wiring Diagram for 5.0L Port Fuel Injection System
G5376

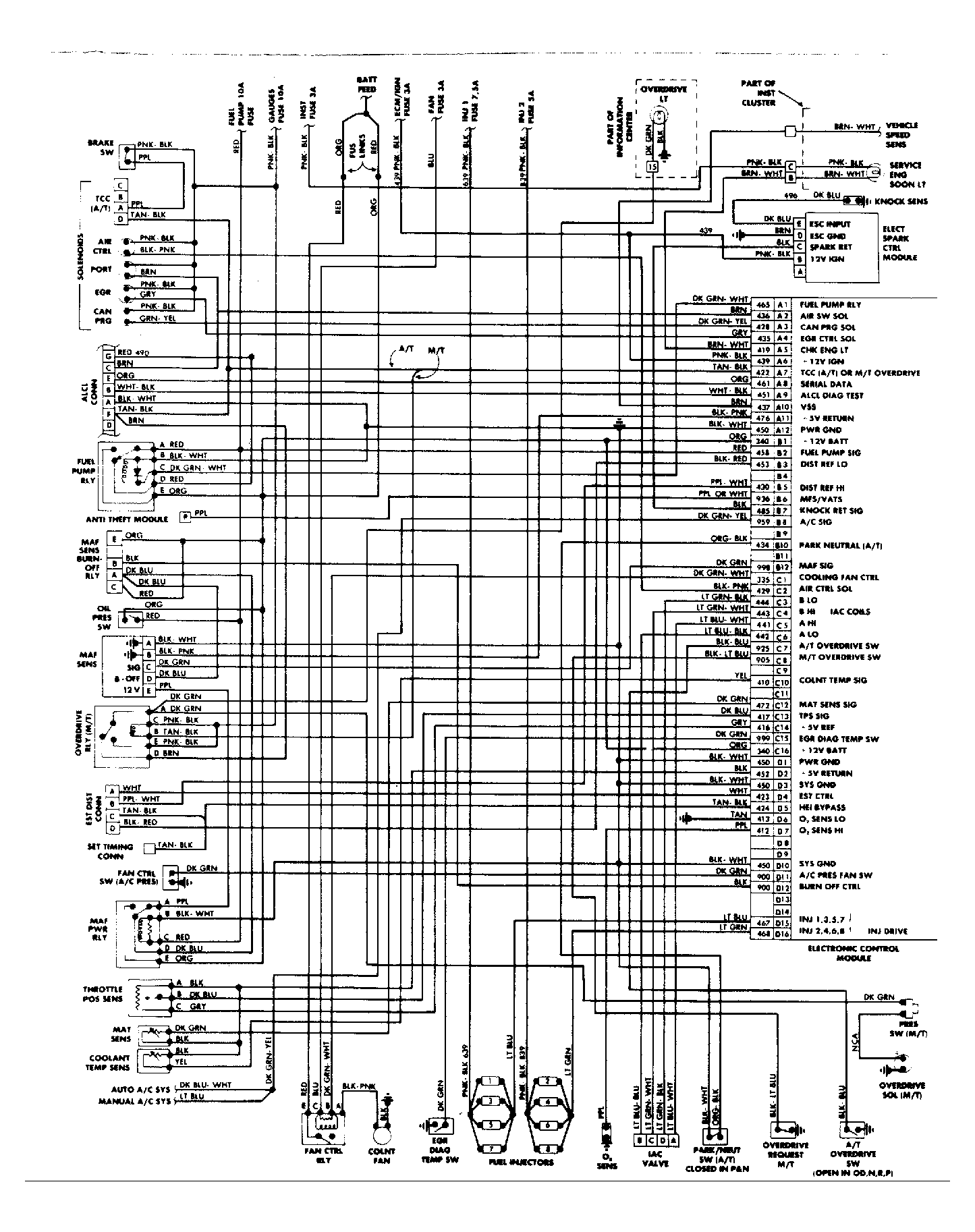

Fig 9: Wiring Diagram for 5.7L Port Fuel Injection System
G5377
