Wiring Diagrams

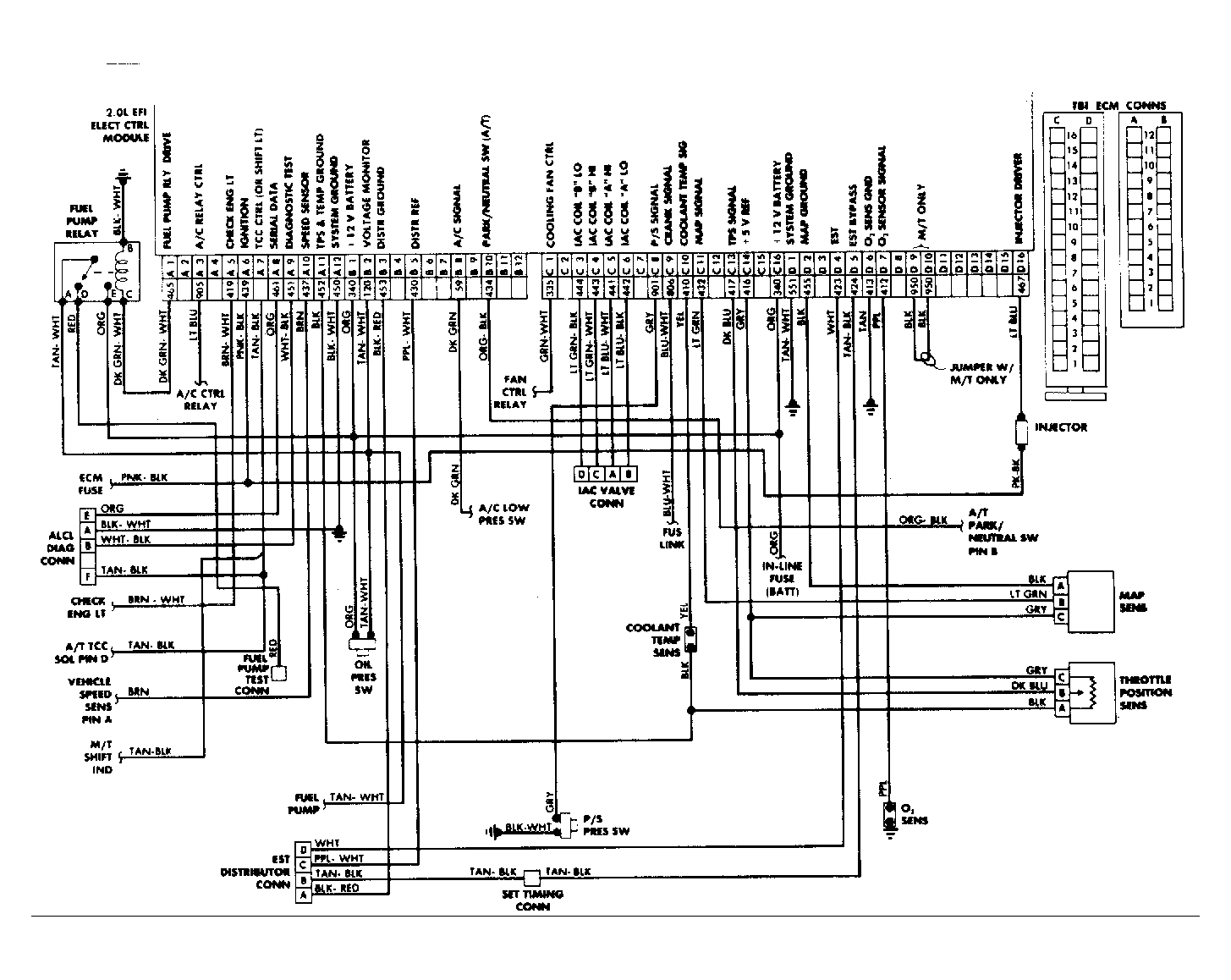

Fig 1: 1.8L & 2.5L Throttle Body Fuel Injection Wiring Diagram
G5388

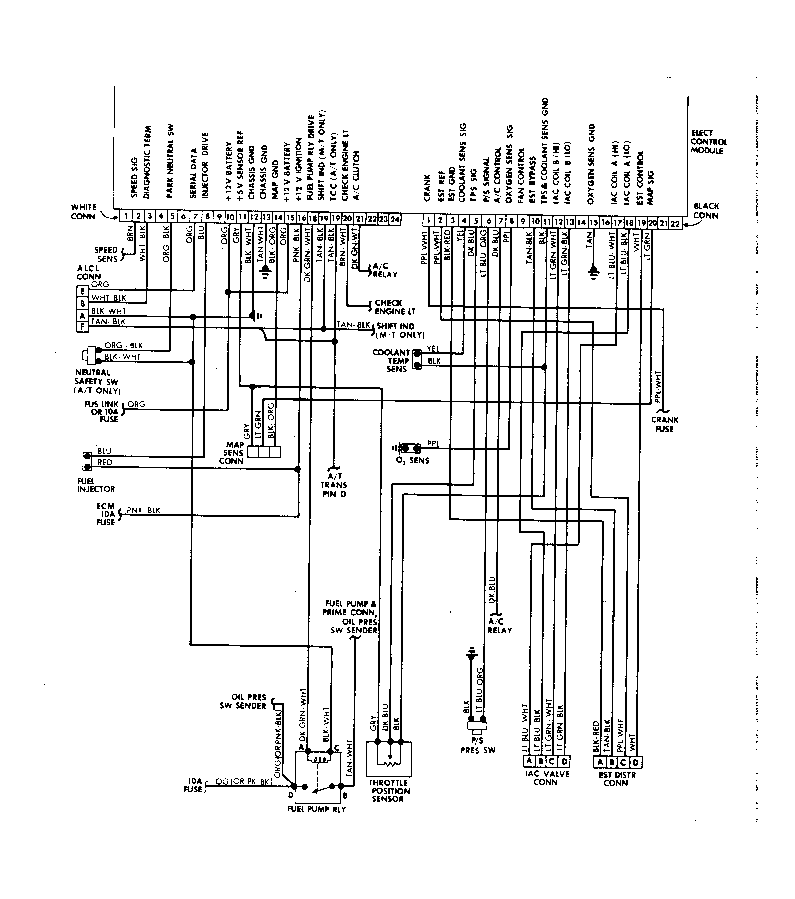

Fig 2: 2.0L Throttle Body Fuel Injection Wiring Diagram
G5389

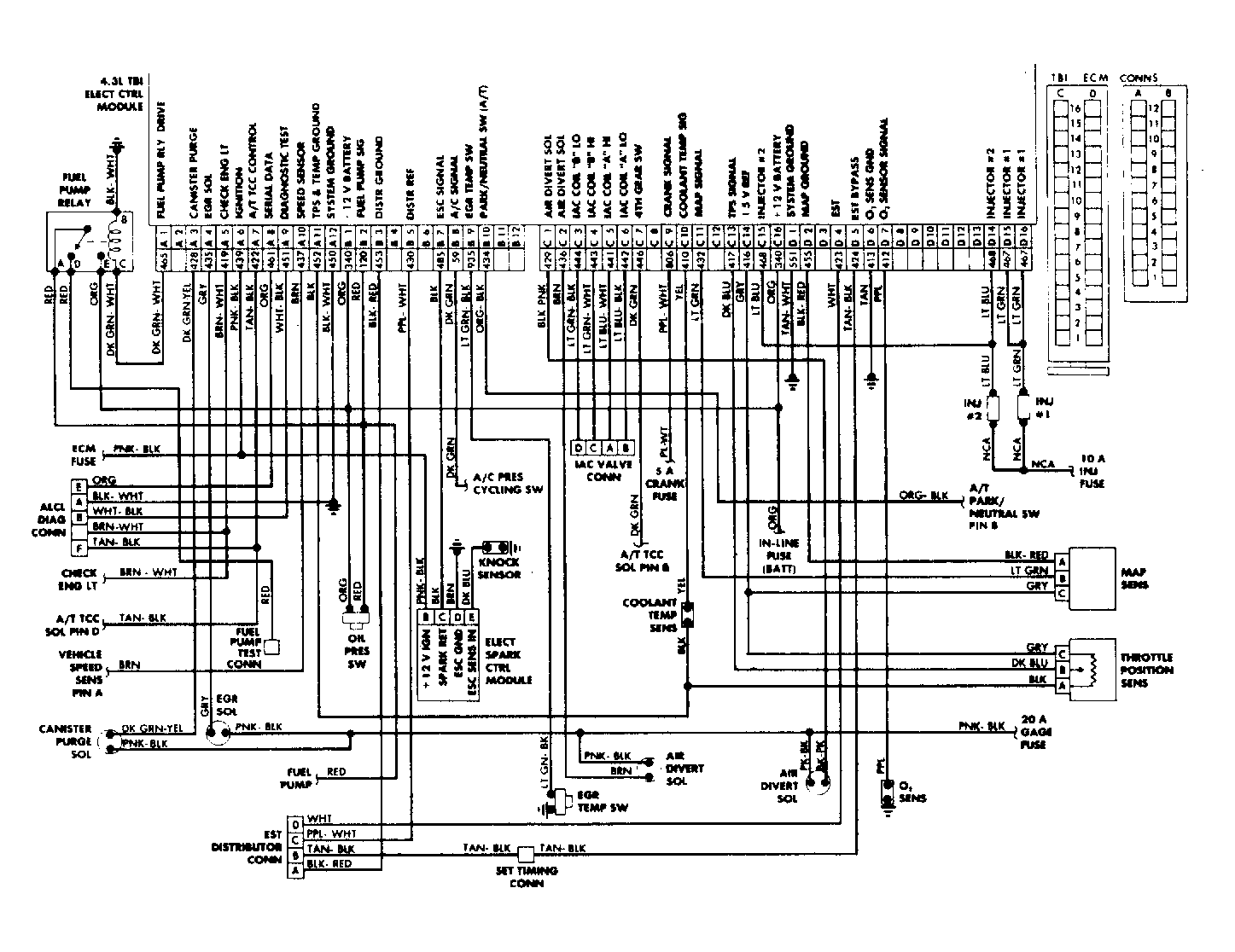

Fig 3: 4.3L Throttle Body Fuel Injection Wiring Diagram
G5390
