Service Point Locations

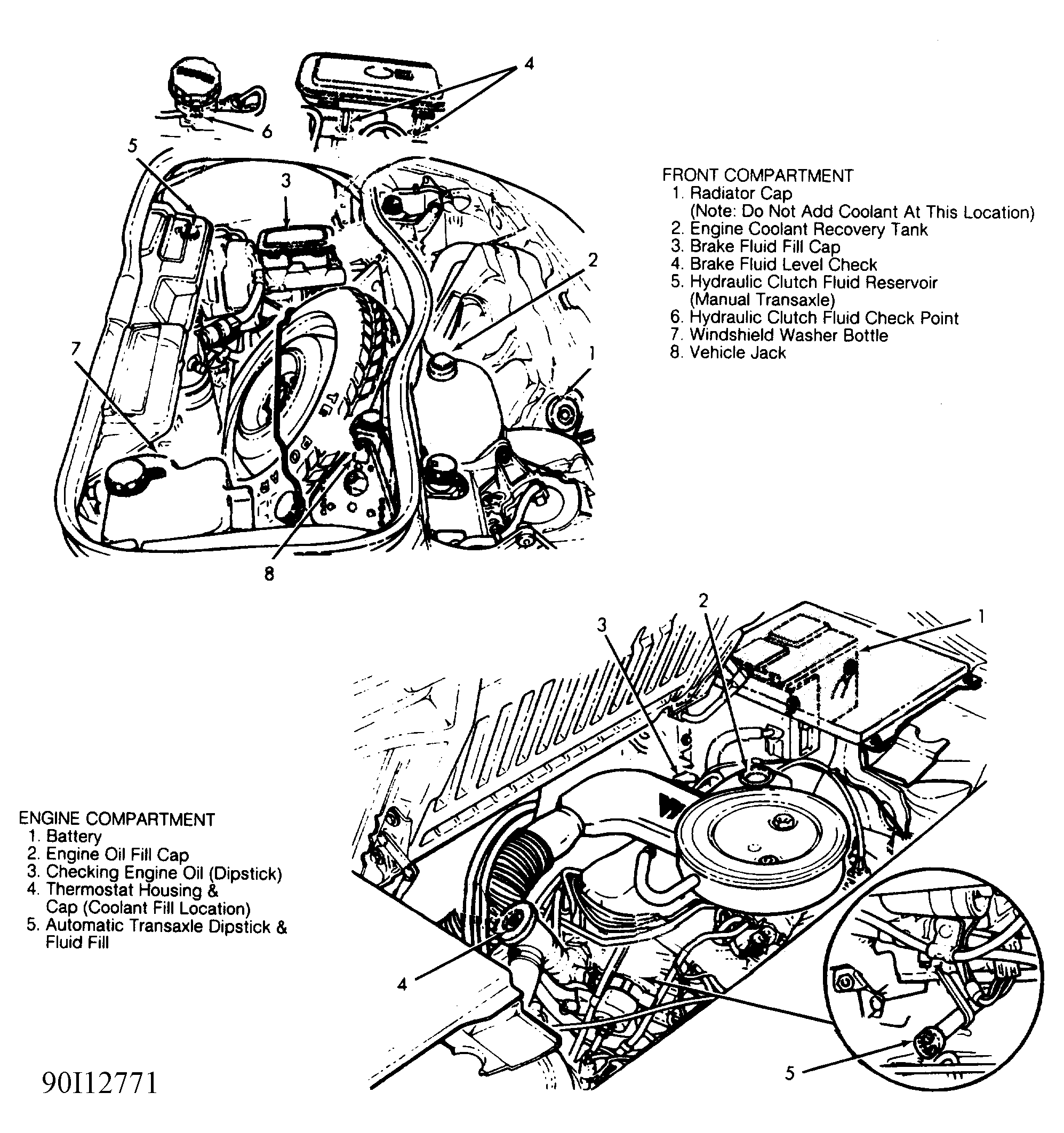

Fig 1: Service Point Locations (2.5L Shown; 2.8L V6 Similar)

Courtesy of GENERAL MOTORS CORP.

Fig 2: In-Pan Oil Filter Location (1988 2.5L)

Courtesy of GENERAL MOTORS CORP.

NOTE: Before changing oil filter on 1988 2.5L engines refer to the 88-6-40 IN-PAN OIL FILTER REPLACEMENT PROCEDURE article in the TSB section.

Fig 3: Checking Manual Transaxle Fluid (Except 1987-88 Muncie)

Courtesy of GENERAL MOTORS CORP.

NOTE: Muncie transaxles have a dipstick for checking fluid level.

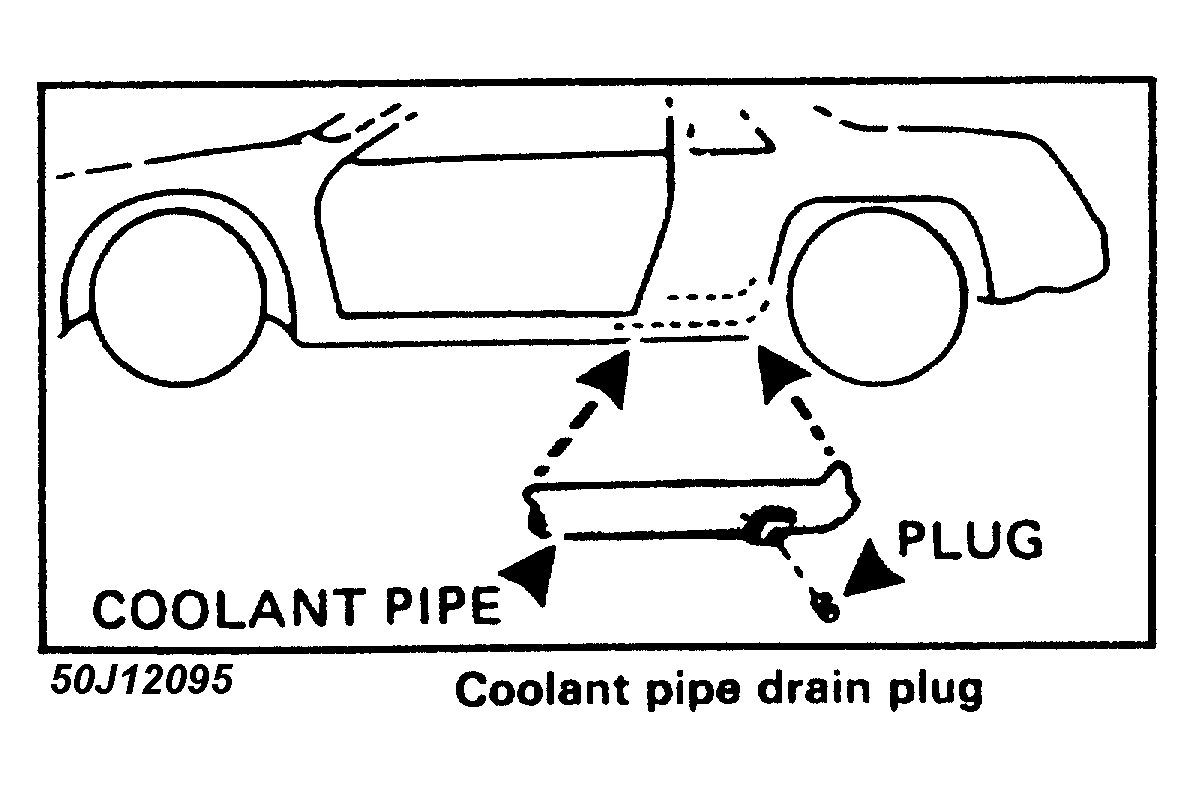

Fig 4: Coolant Pipe Drain Plug Location

Courtesy of GENERAL MOTORS CORP.

CAUTION: Before performing any maintenance procedures refer to the 1984-88 FIERO SERVICE MAINTENANCE PROCEDURES article in the TSB section (reference #88-0-6).

CAUTION: Before performing any maintenance procedures refer to the CAMPAIGN: LACK OF ADEQUATE SER.MAINT.-NEW PARTS RELEASED article in the TSB section (reference 01/24/92 #88-C-24A).

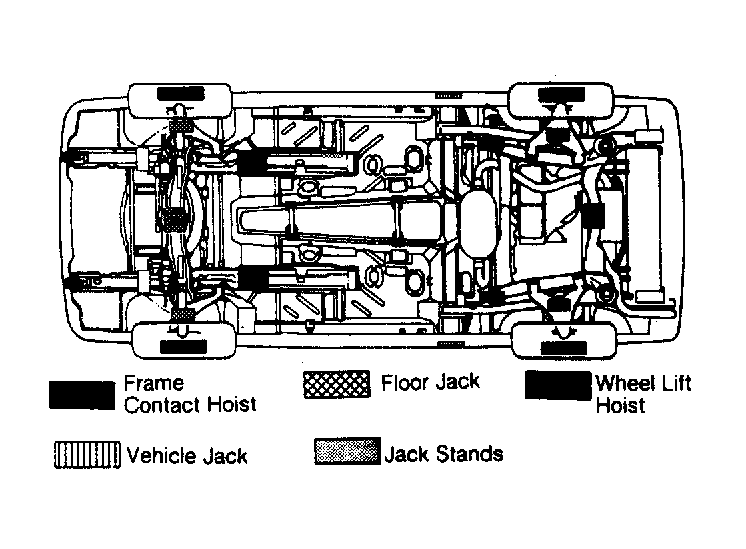

Fig 5: Lift Point Locations

Courtesy of GENERAL MOTORS CORP.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT section.
