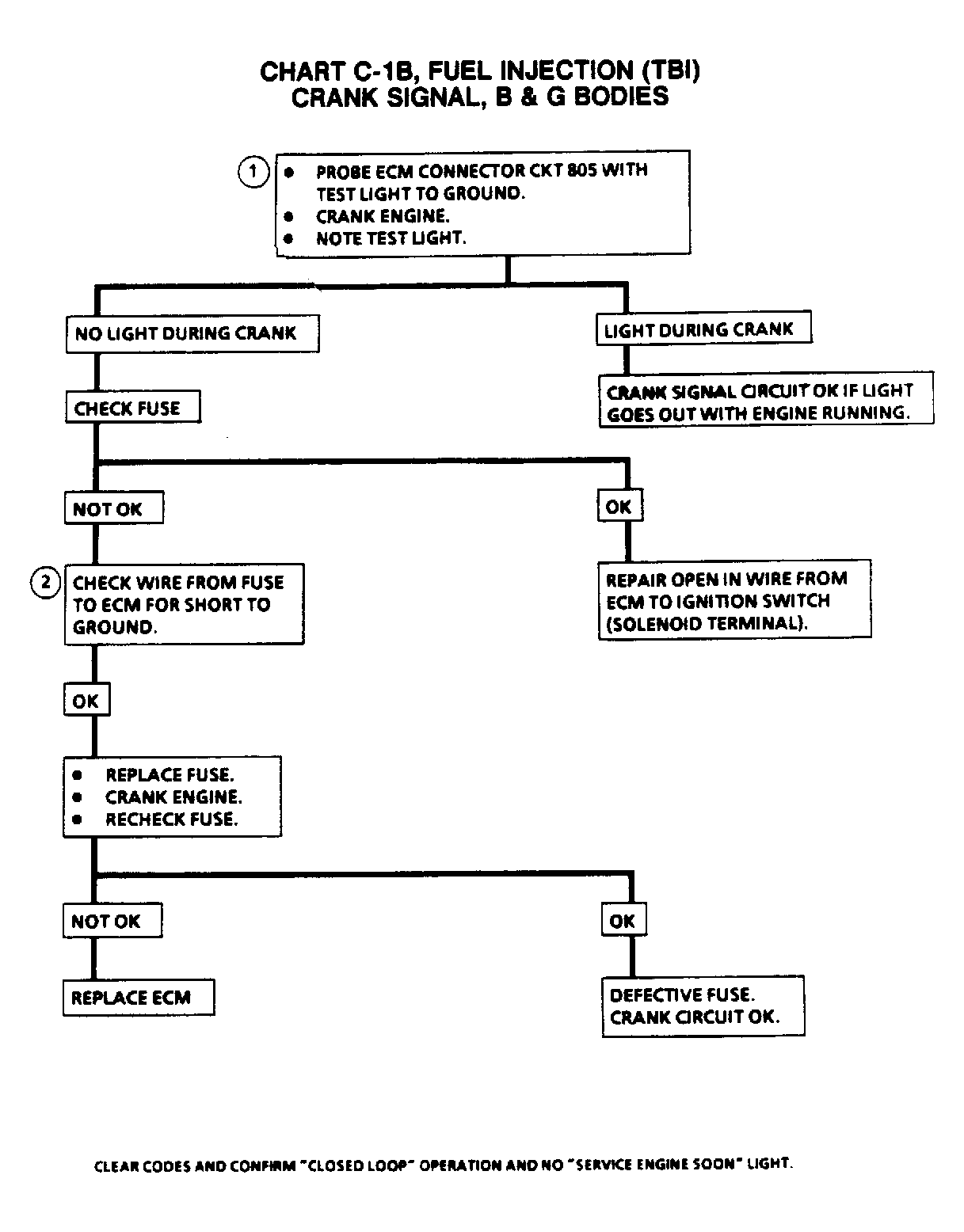

Chart C1B - Crank Signal
Crank signal is a 12-volt signal to ECM during cranking to allow enrichment and cancel diagnostics until engine is running or 12 volt is no longer on circuit.
- Checks for normal (cranking) voltage to terminal C9 of ECM. Test light should be on during cranking.
- Determines if source of blown fuse was a faulty ECM.
