Mat Resistance: Notes

MAT SENSOR RESISTANCE SPECIFICATIONS

Temperature °F (°C) Ohms
210 (99) 185
160 (71) 450
100 (38) 1800
70 (21) 3400
40 (4) 7500
20 (-7) 13,500
0 (-18) 25,000
-40 (-40) 100,700

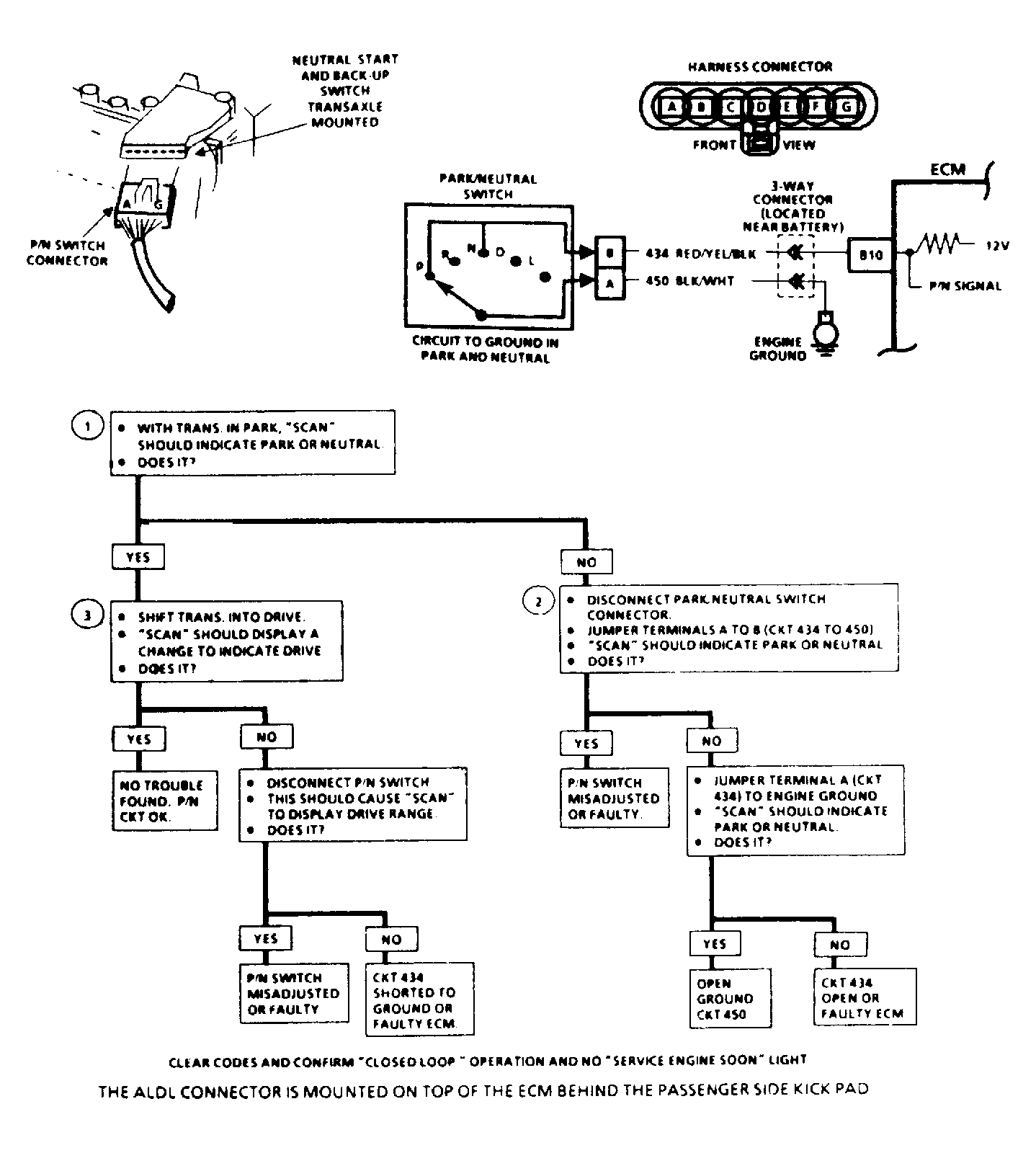

Fig 1: P/N Switch Circuits
G121783Courtesy of GENERAL MOTORS CORP.
