Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

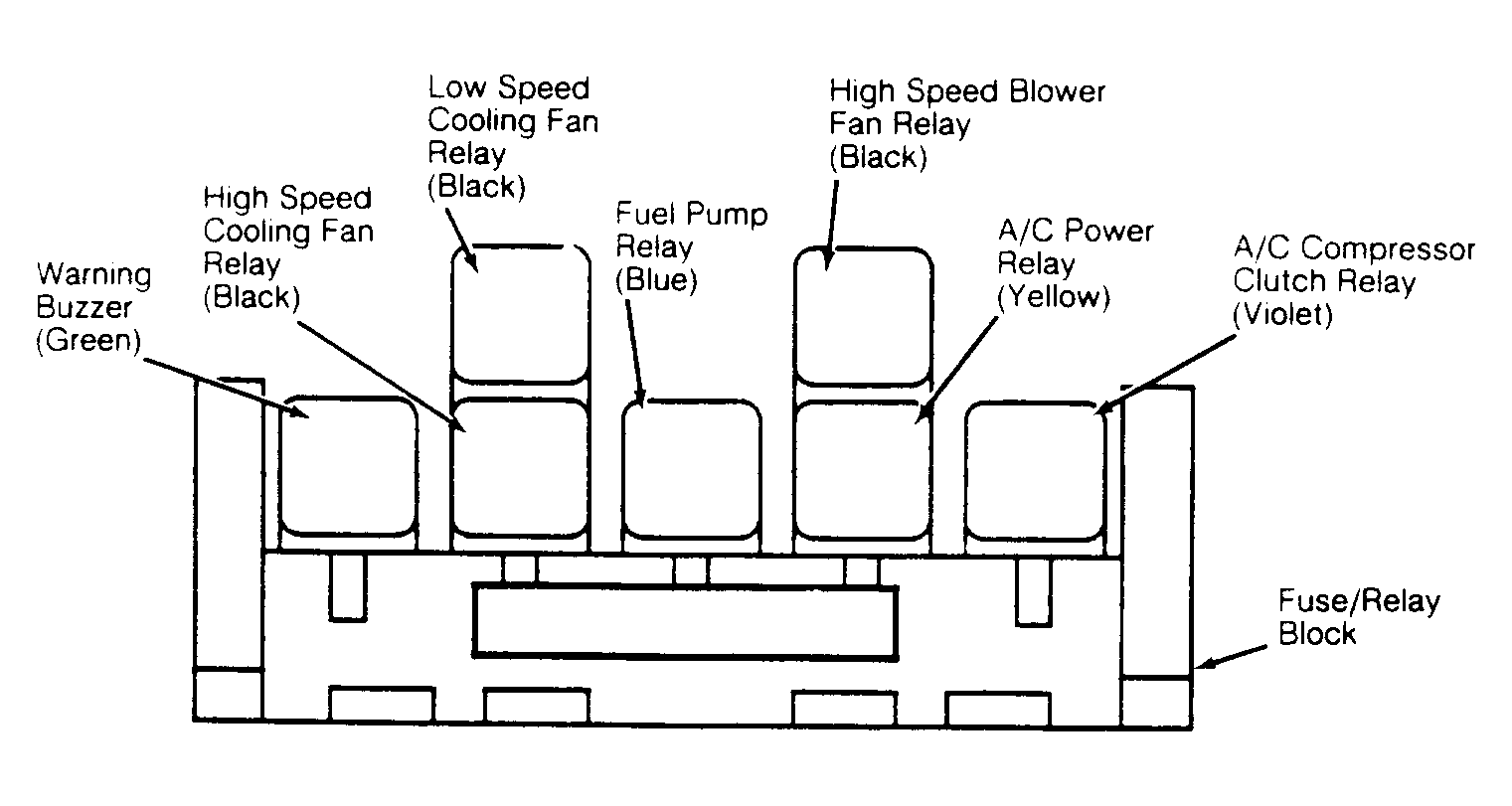

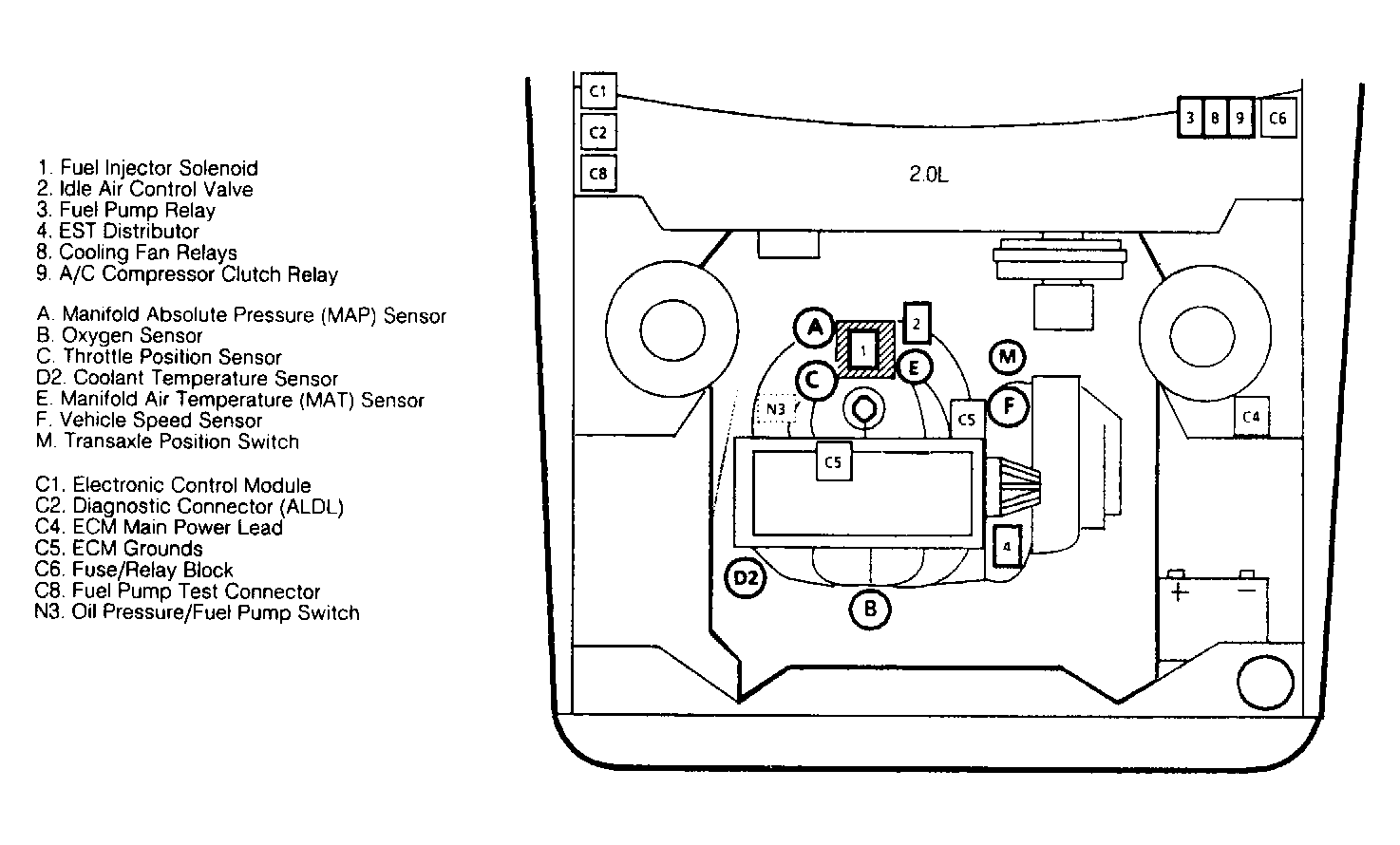

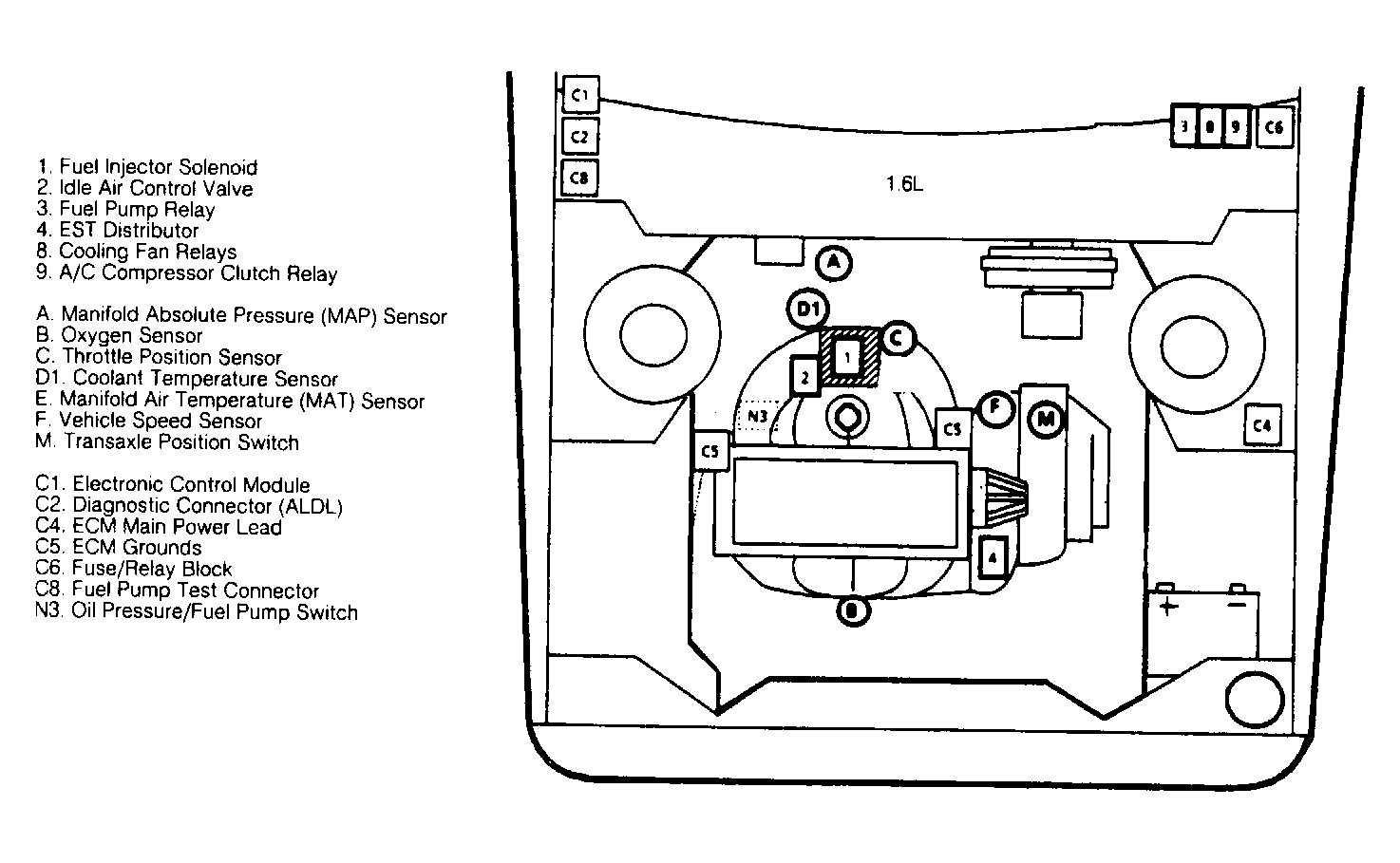

| Fuse/Relay Block |
Behind left side of instrument panel. See Figure
, Figure
, Figure
& 5. |

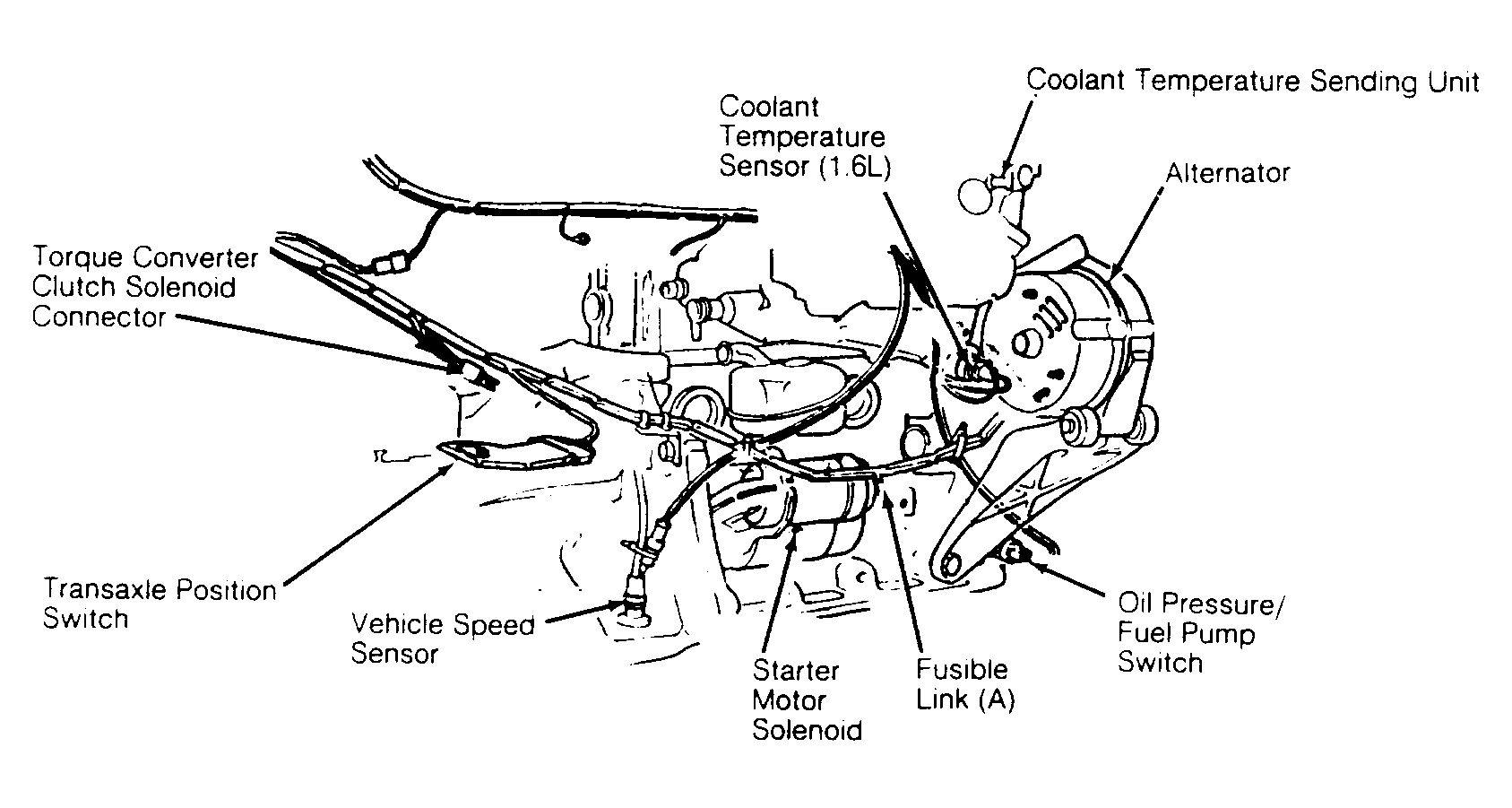

| Fusible Link (A) |
Right side of engine, near starter solenoid. See Figure
. |
| Fusible Link (B) |
Left side of engine compartment, in front of strut tower. |
