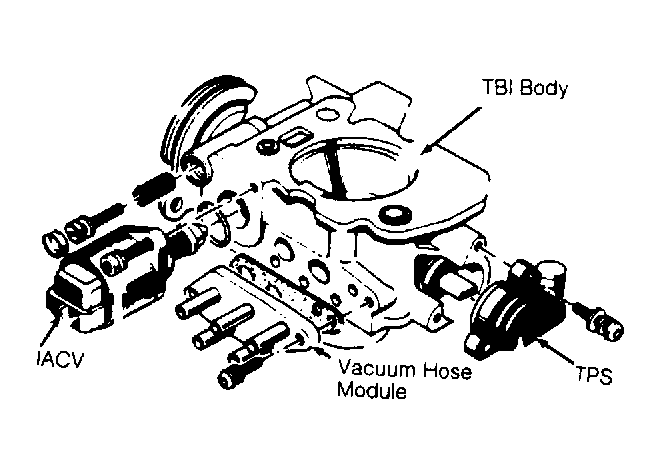

Throttle Position Sensor (TPS)
Removal & Installation
Disconnect TPS connector. Remove mounting screws and TPS. To install, ensure throttle is in closed position. Install TPS on throttle shaft and rotate counterclockwise to align mounting holes. Install mounting screws and washers. Tighten mounting screws to 18 INCH lbs. (2 N.m).
