Diagnostic Aids

If the engine has been allowed to cool overnight to an ambient temperature, both coolant and MAT temperature may be checked with a Scan tester. The readings should be approximately the same. A Code 25 will result if circuit No. 472 is shorted to ground. If Code 25 is intermittent, see INTERMITTENTS in TESTS W/O CODES article.

Fig 1: Circuit Diagram Chart Code 25

Courtesy of GENERAL MOTORS CORP.

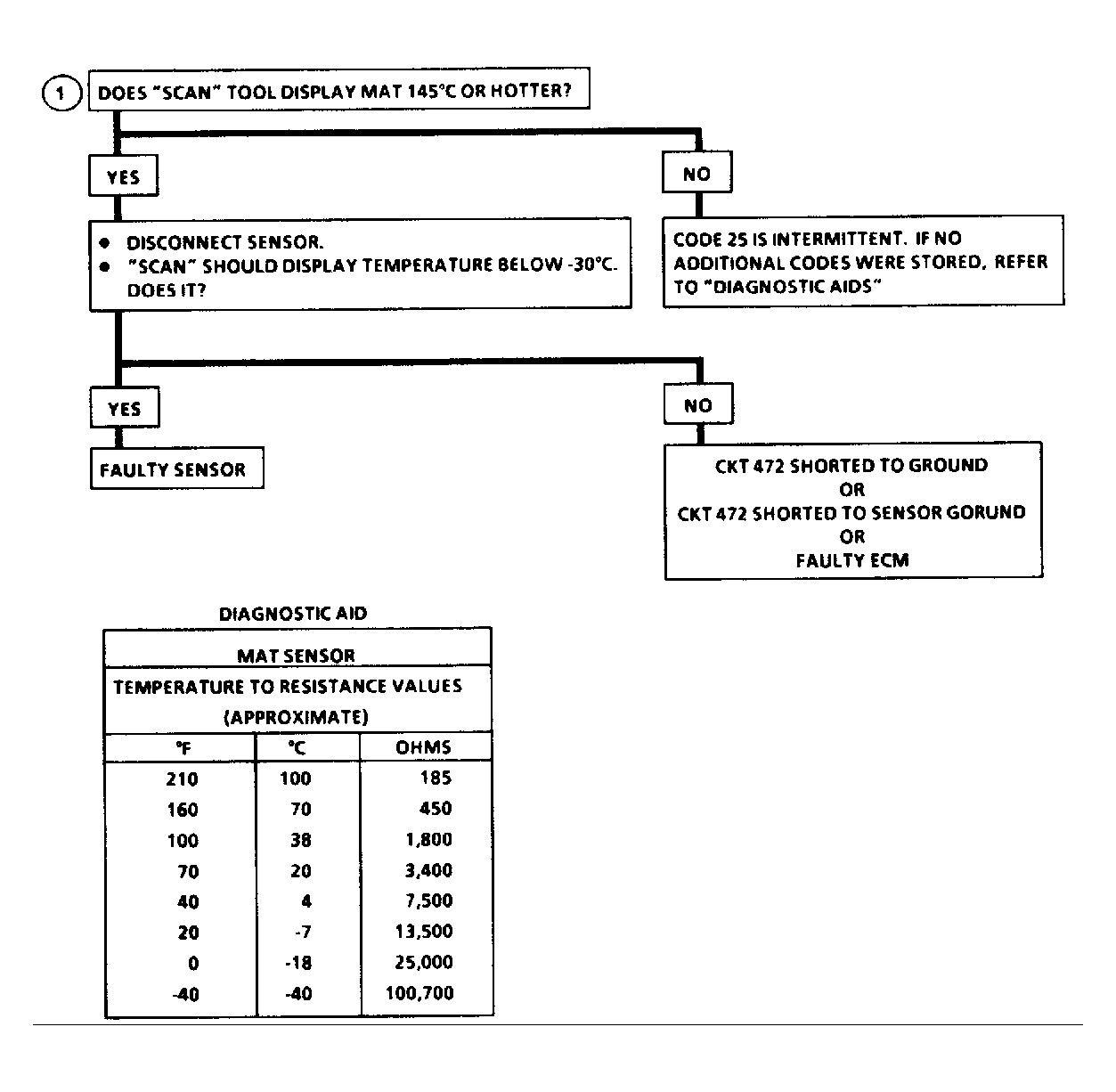

Fig 2: Flow Chart Code 25

Courtesy of GENERAL MOTORS CORP.
