Component Locations

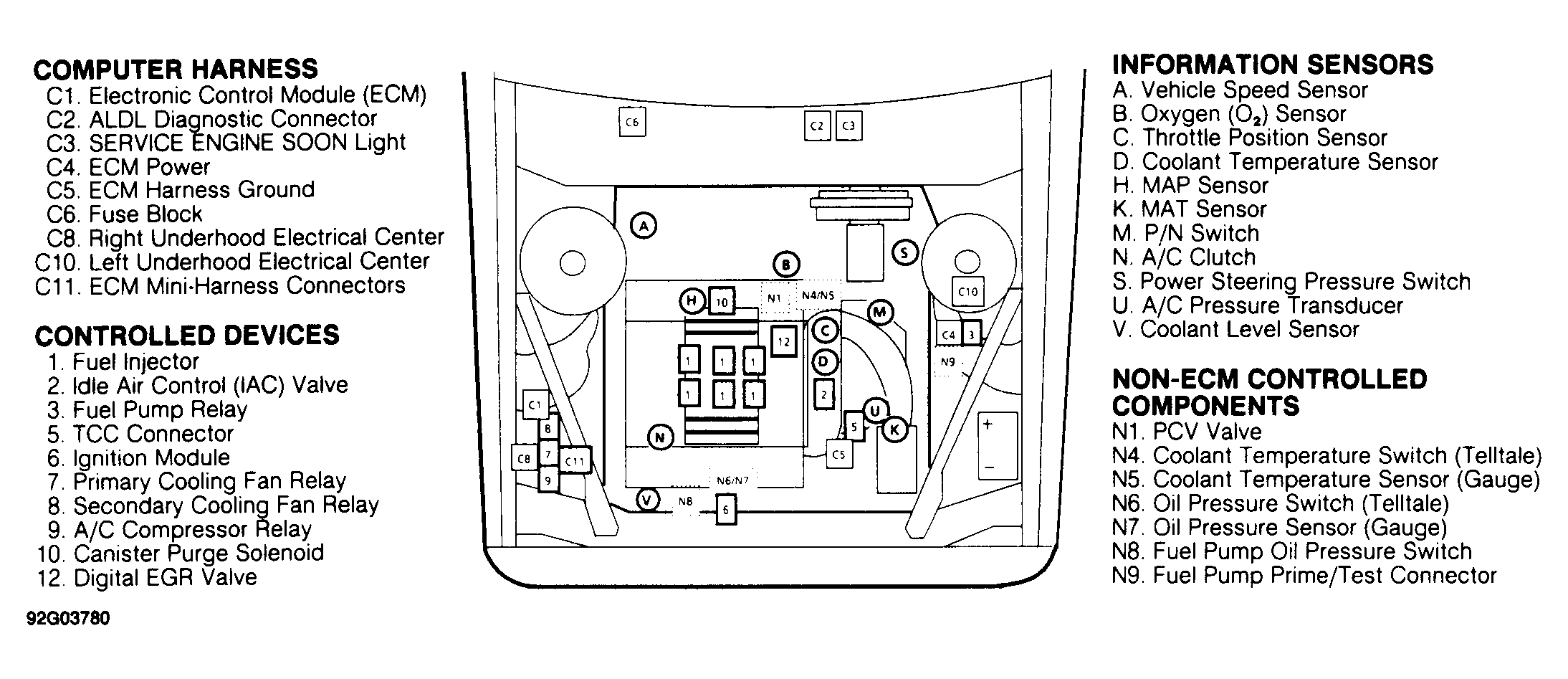

Fig 1: Component Locations (2.5L VIN R )
Courtesy of GENERAL MOTORS CORP.

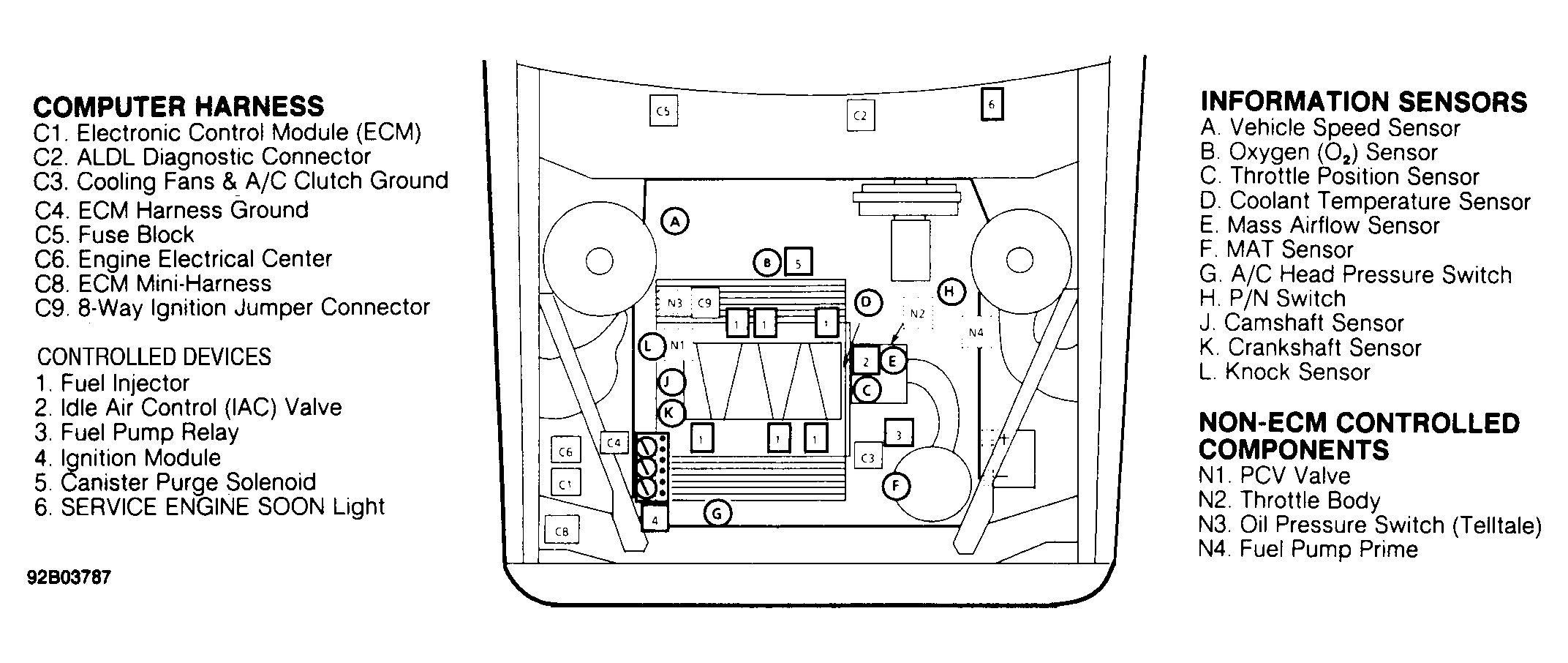

Fig 2: Component Locations (3.1L VIN T & 3.4L VIN X)
Courtesy of GENERAL MOTORS CORP.

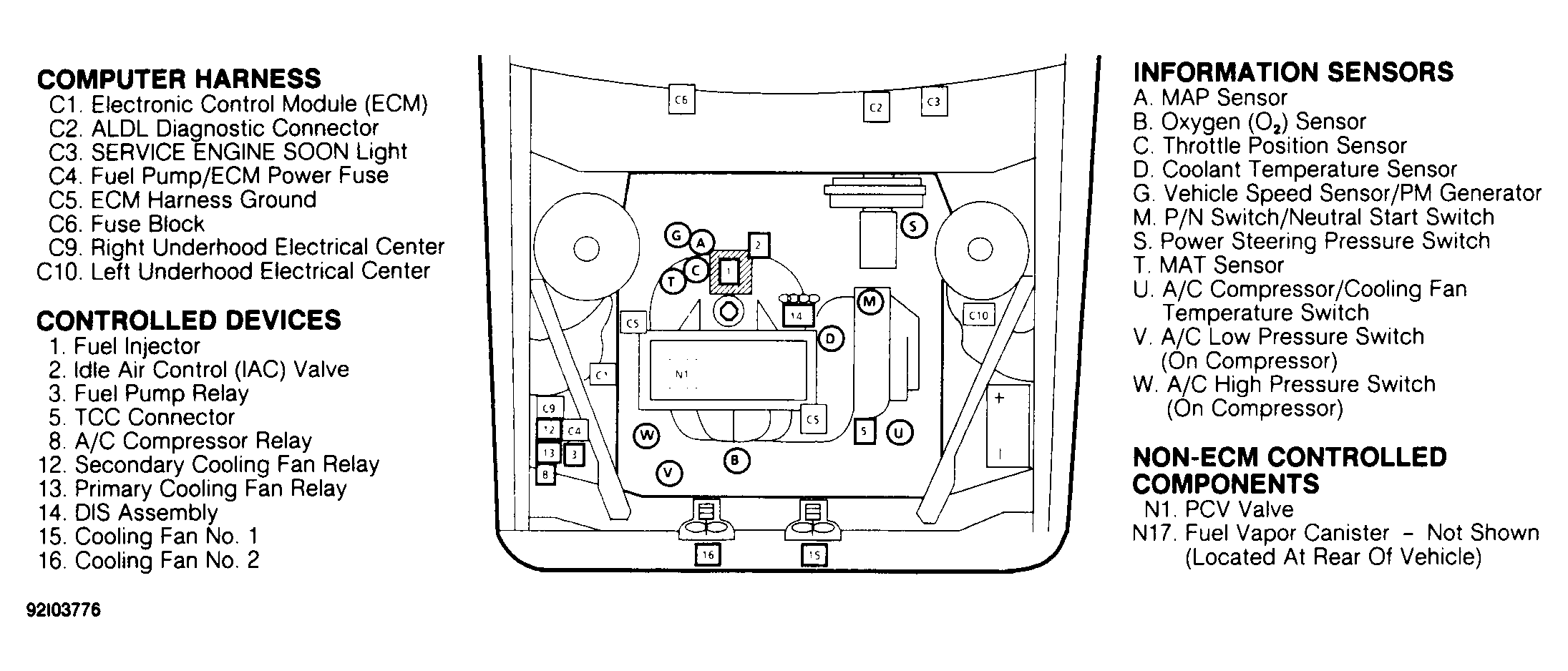

Fig 3: Component Locations (3.8L VIN L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
