Component Locations

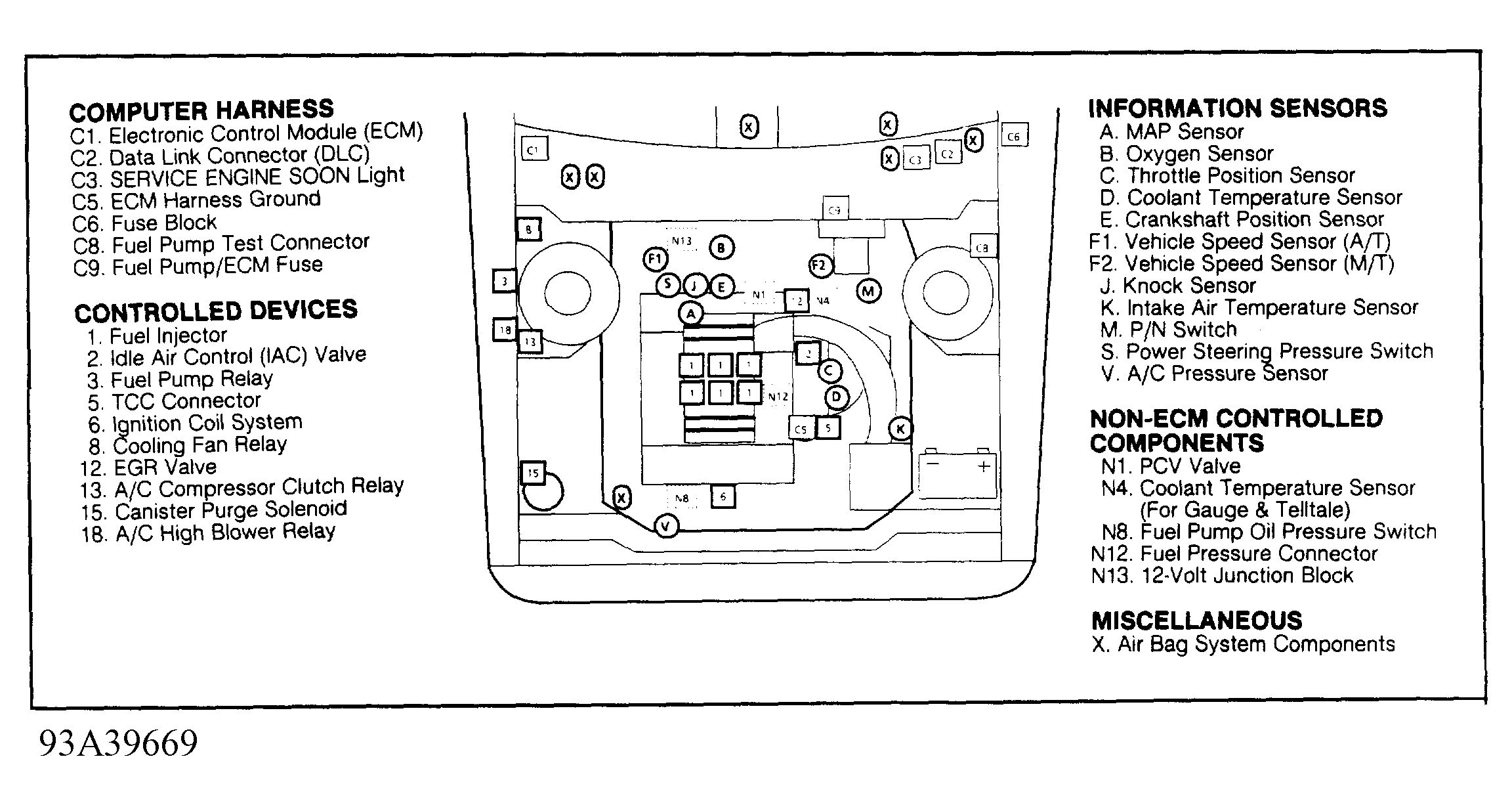

Fig 1: Component Locations (3.1L VIN T - "J" Body - Except Corsica LT)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Component Locations (3.1L VIN T - "J" Body - Corsica LT)

Courtesy of GENERAL MOTORS CORP.

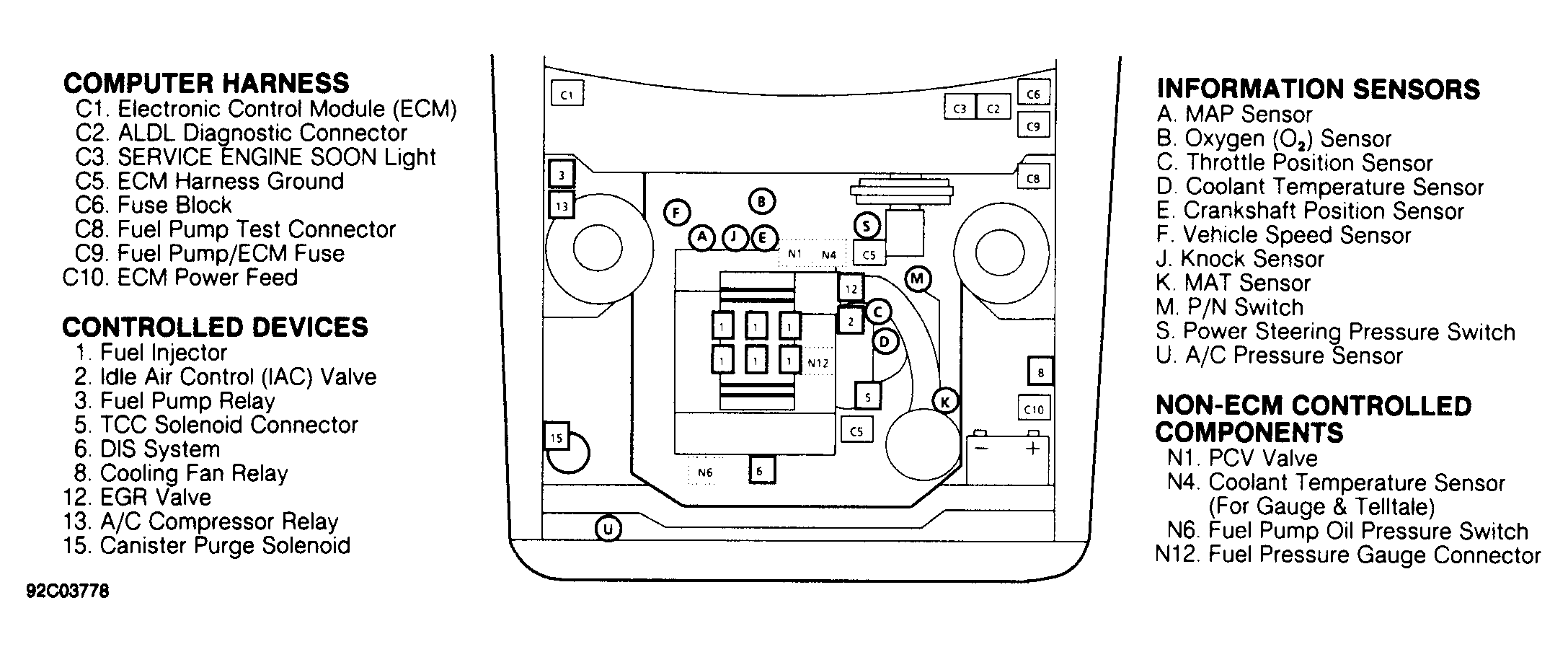

Fig 3: Component Locations (3.1L VIN T - "L" Body)

Courtesy of GENERAL MOTORS CORP.

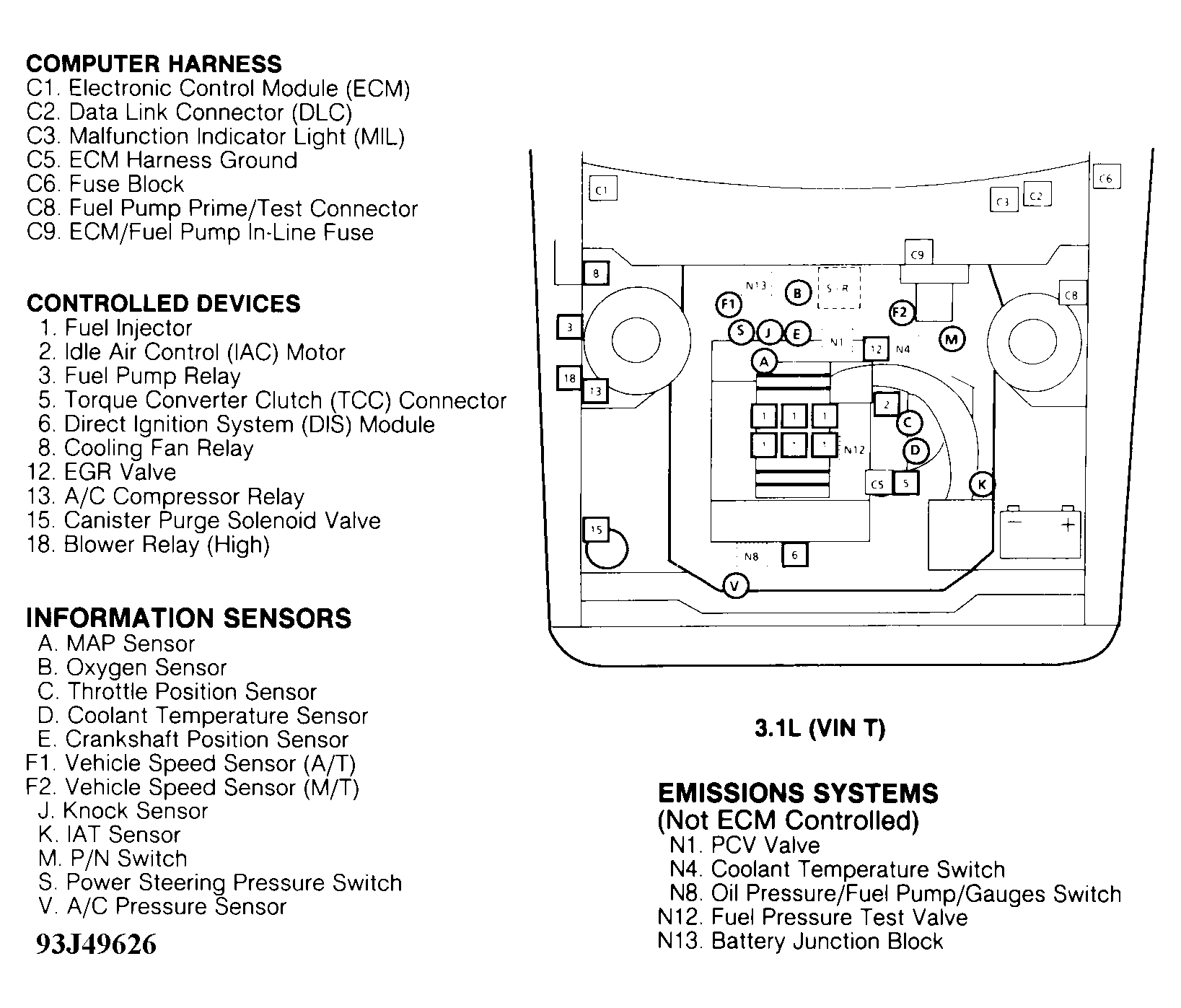

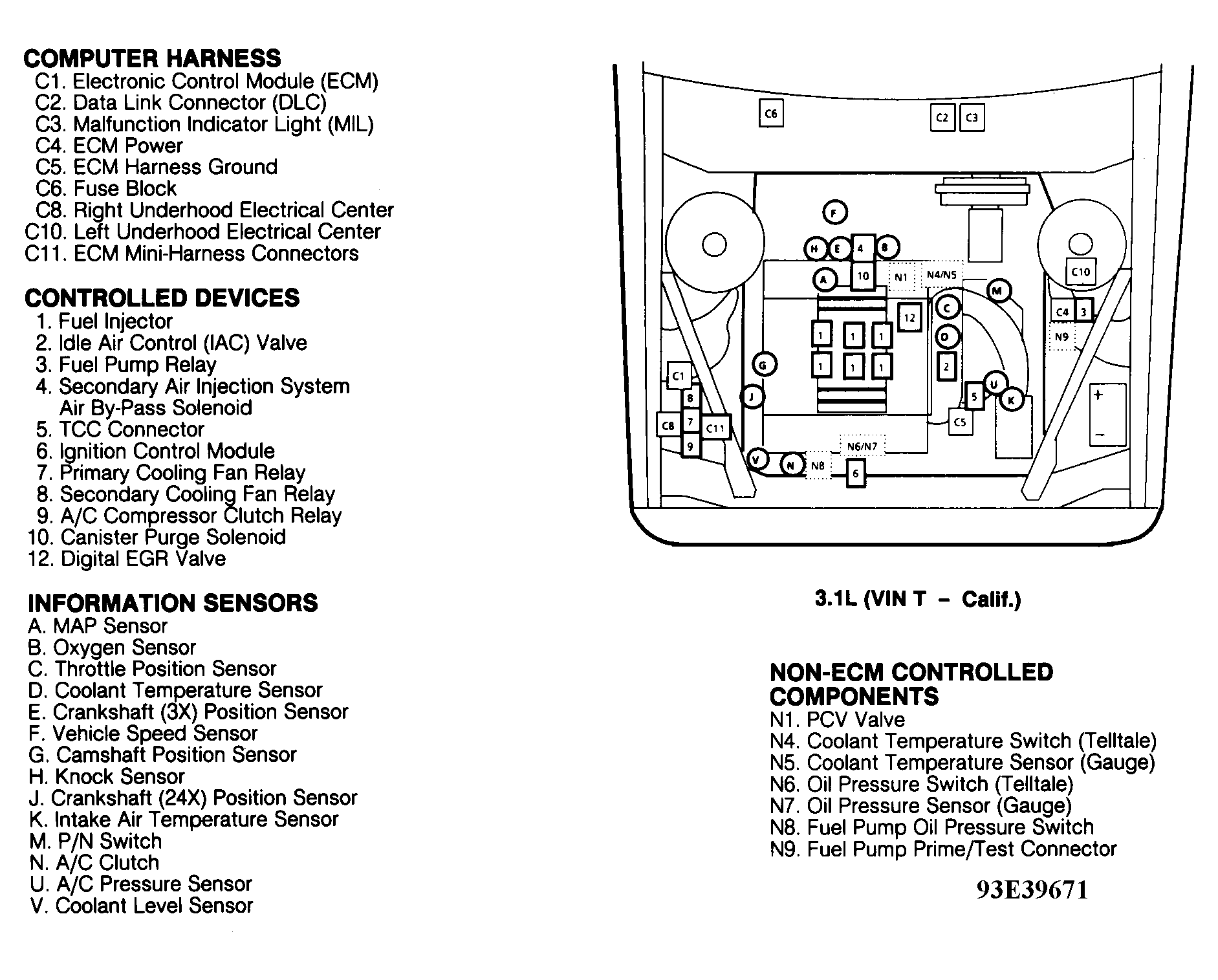

Fig 4: Component Locations (3.1L VIN T - "W" Body - Calif.)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Component Locations (3.1L VIN T - "W" Body - Federal)

Courtesy of GENERAL MOTORS CORP.

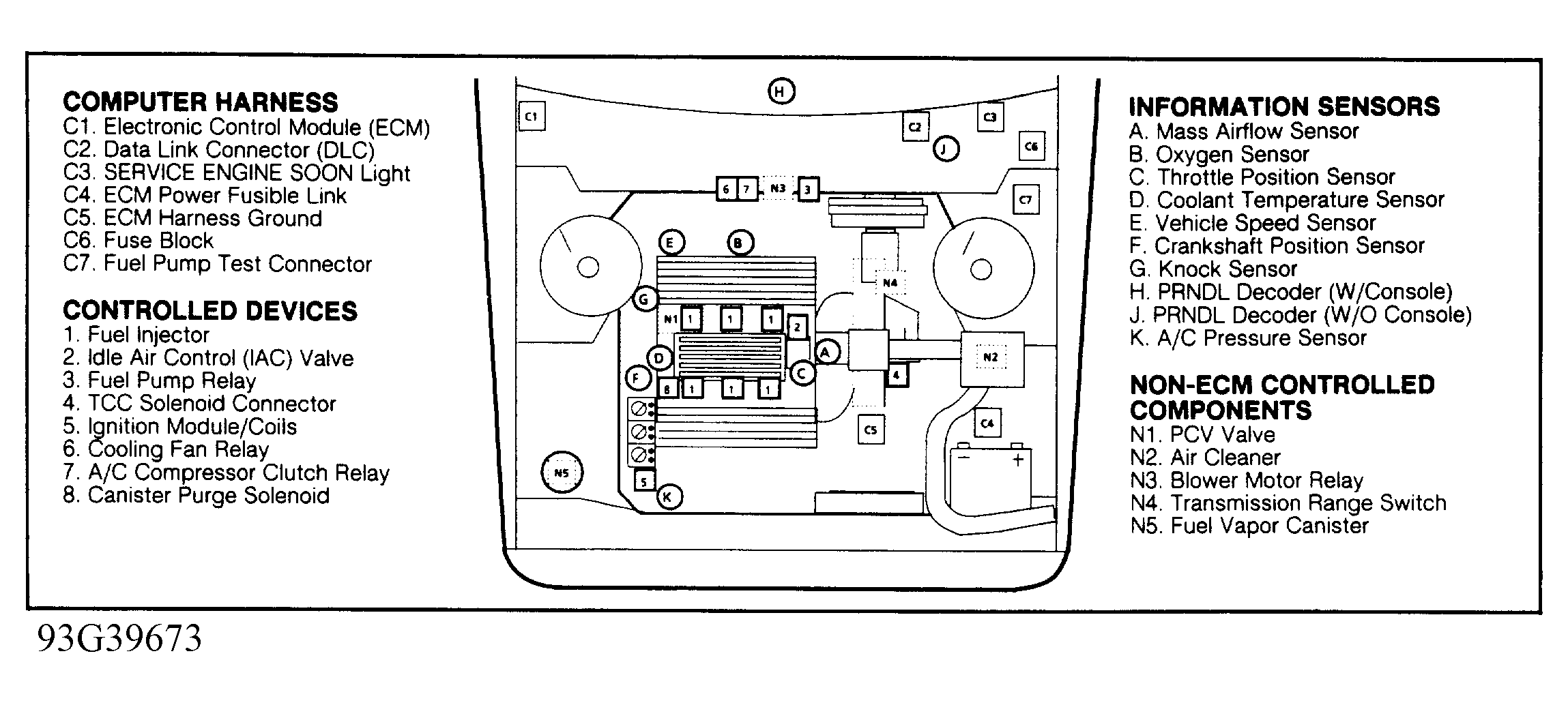

Fig 6: Component Locations (3.3L VIN N - "A" Body)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Component Locations (3.3L VIN N - "N" Body)

Courtesy of GENERAL MOTORS CORP.

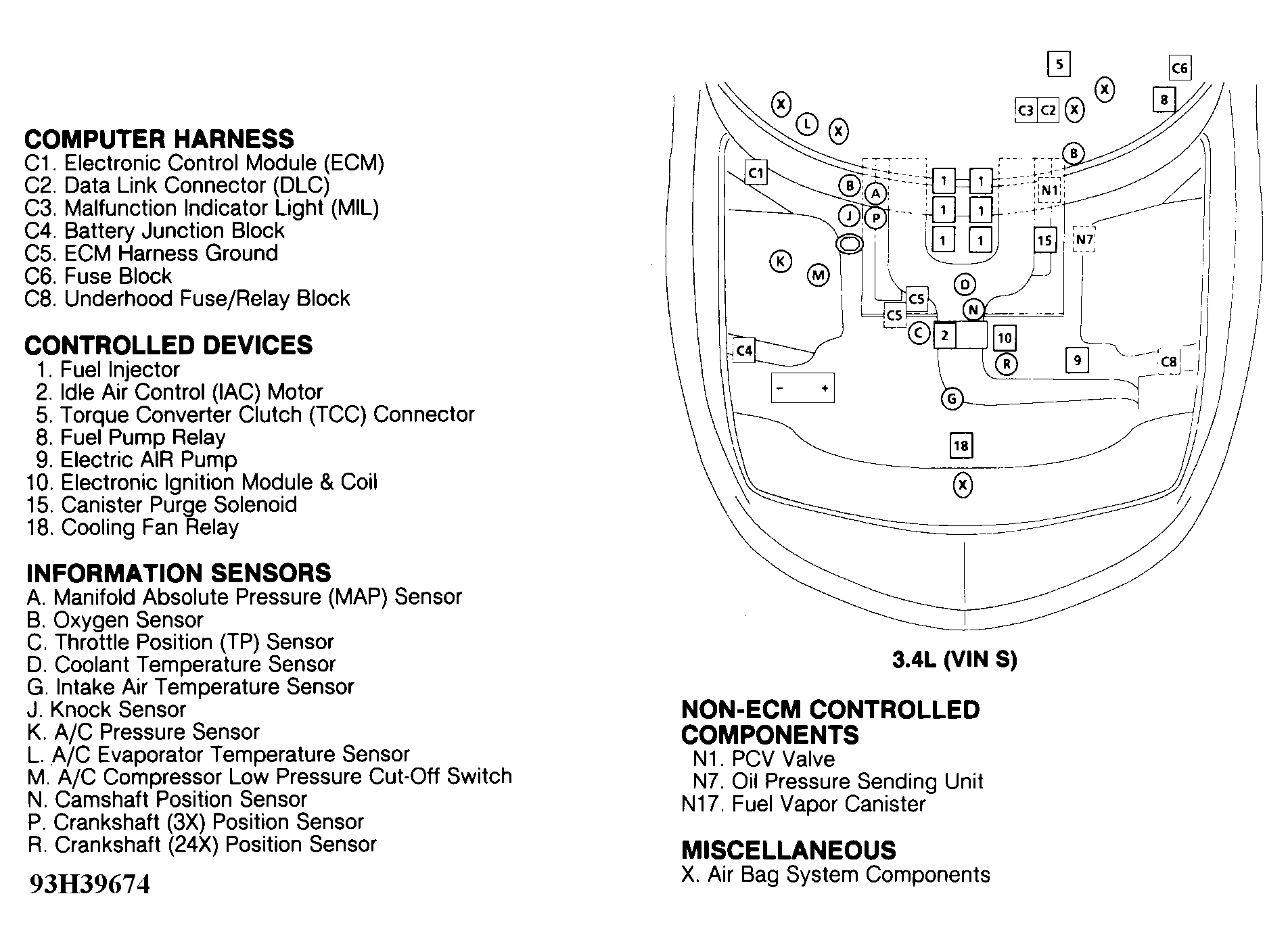

Fig 8: Component Locations (3.4L VIN S - "F" Body)

Courtesy of GENERAL MOTORS CORP.

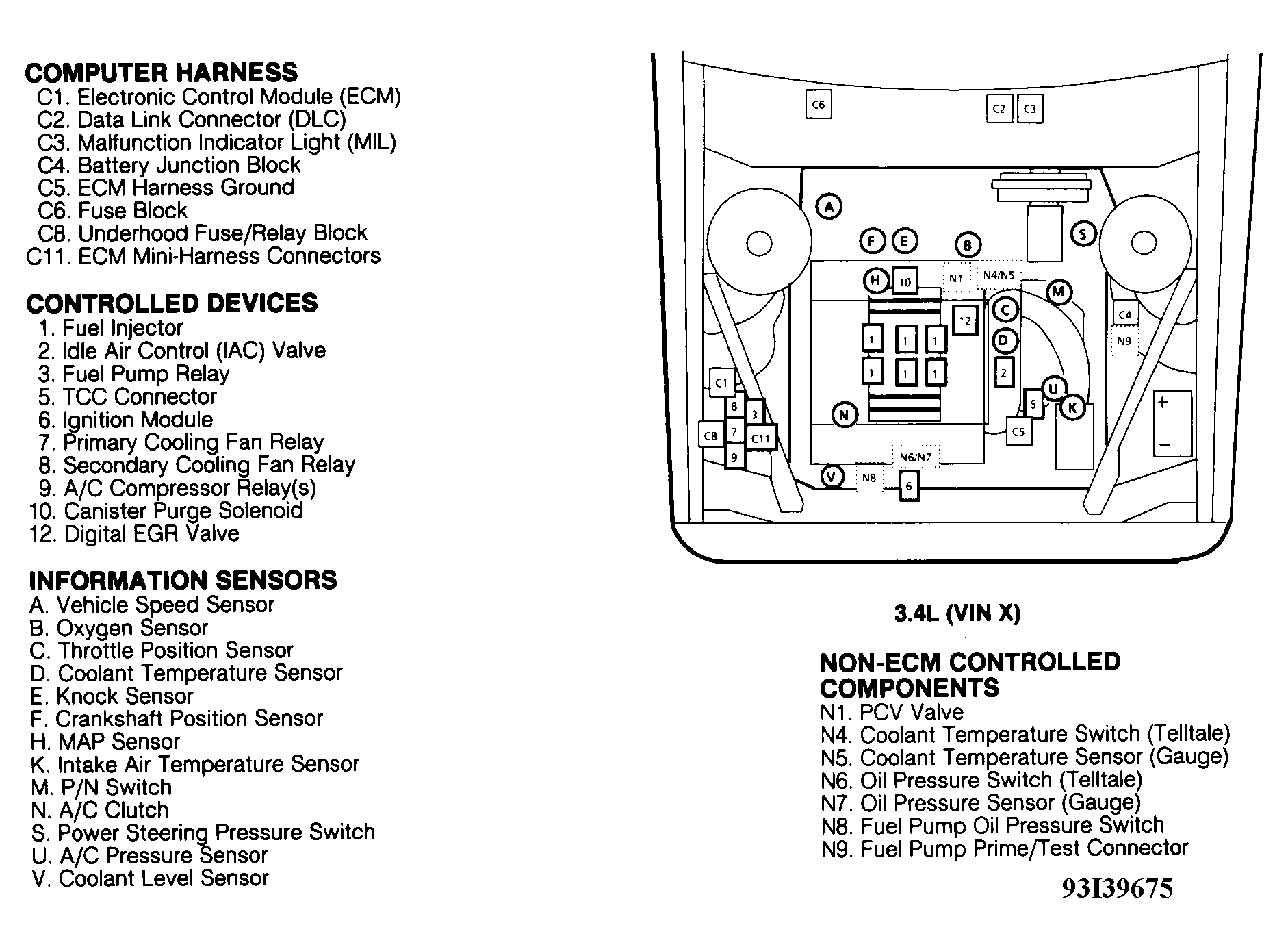

Fig 9: Component Locations (3.4L VIN X - "W" Body)

Courtesy of GENERAL MOTORS CORP.

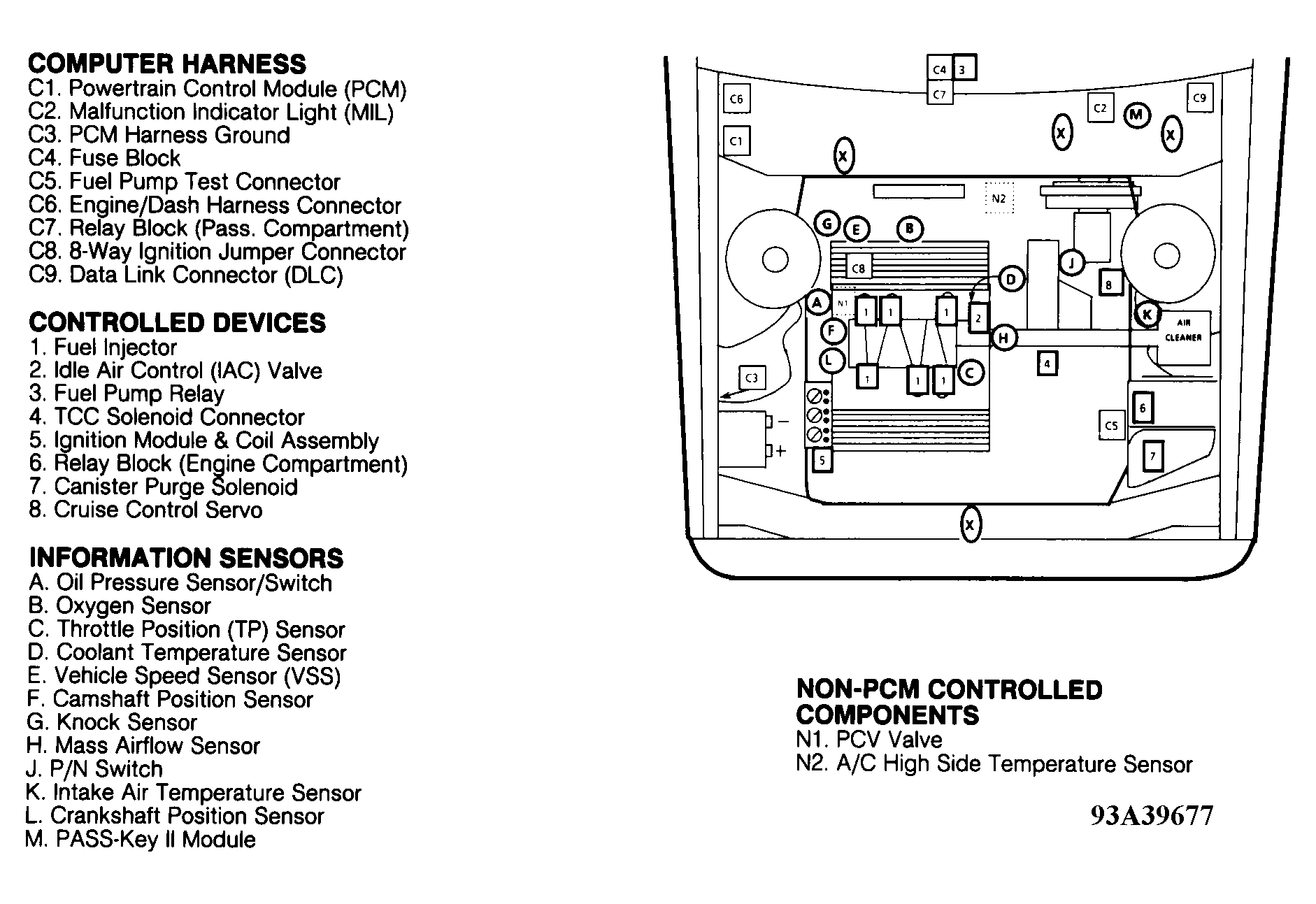

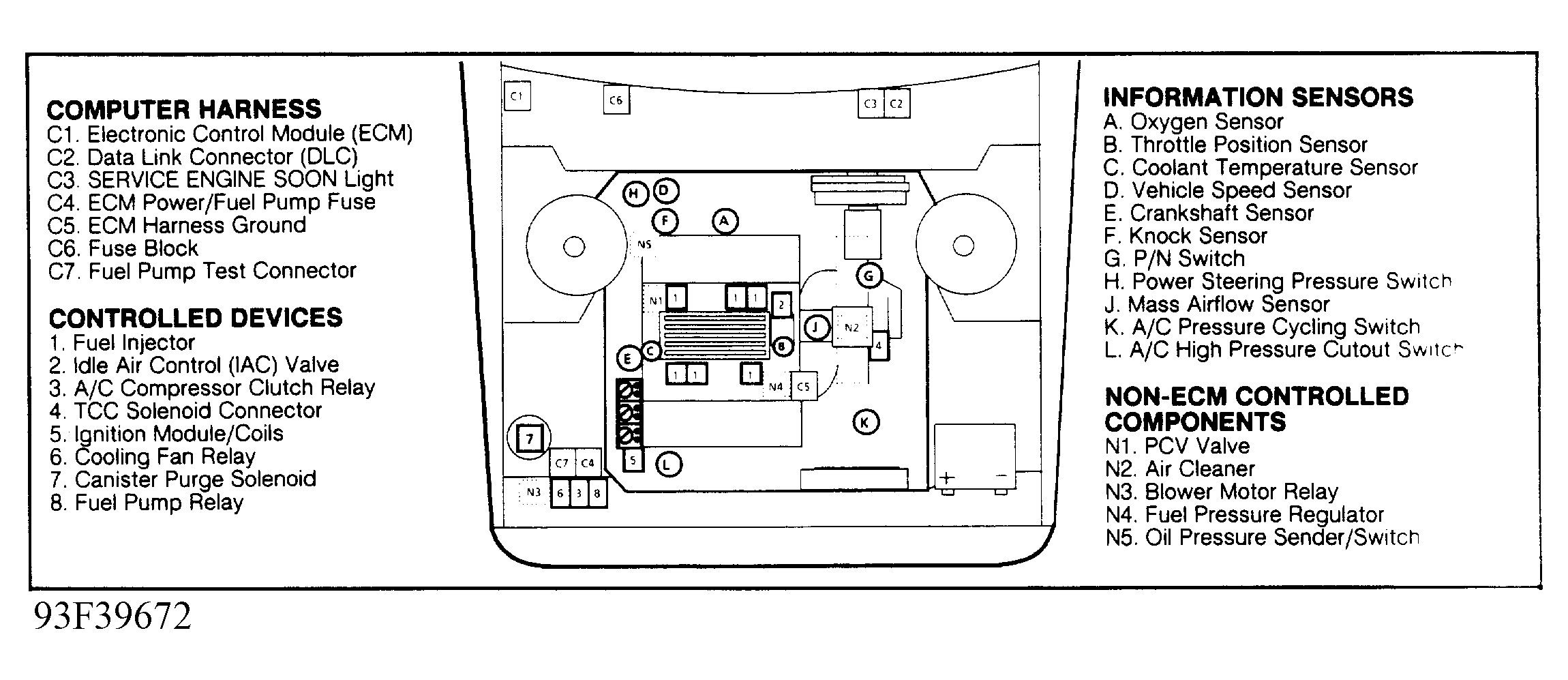

Fig 10: Component Locations (3.8L VIN L - "C" & "H" Bodies)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Component Locations (3.8L VIN L - "E" Body)

Courtesy of GENERAL MOTORS CORP.

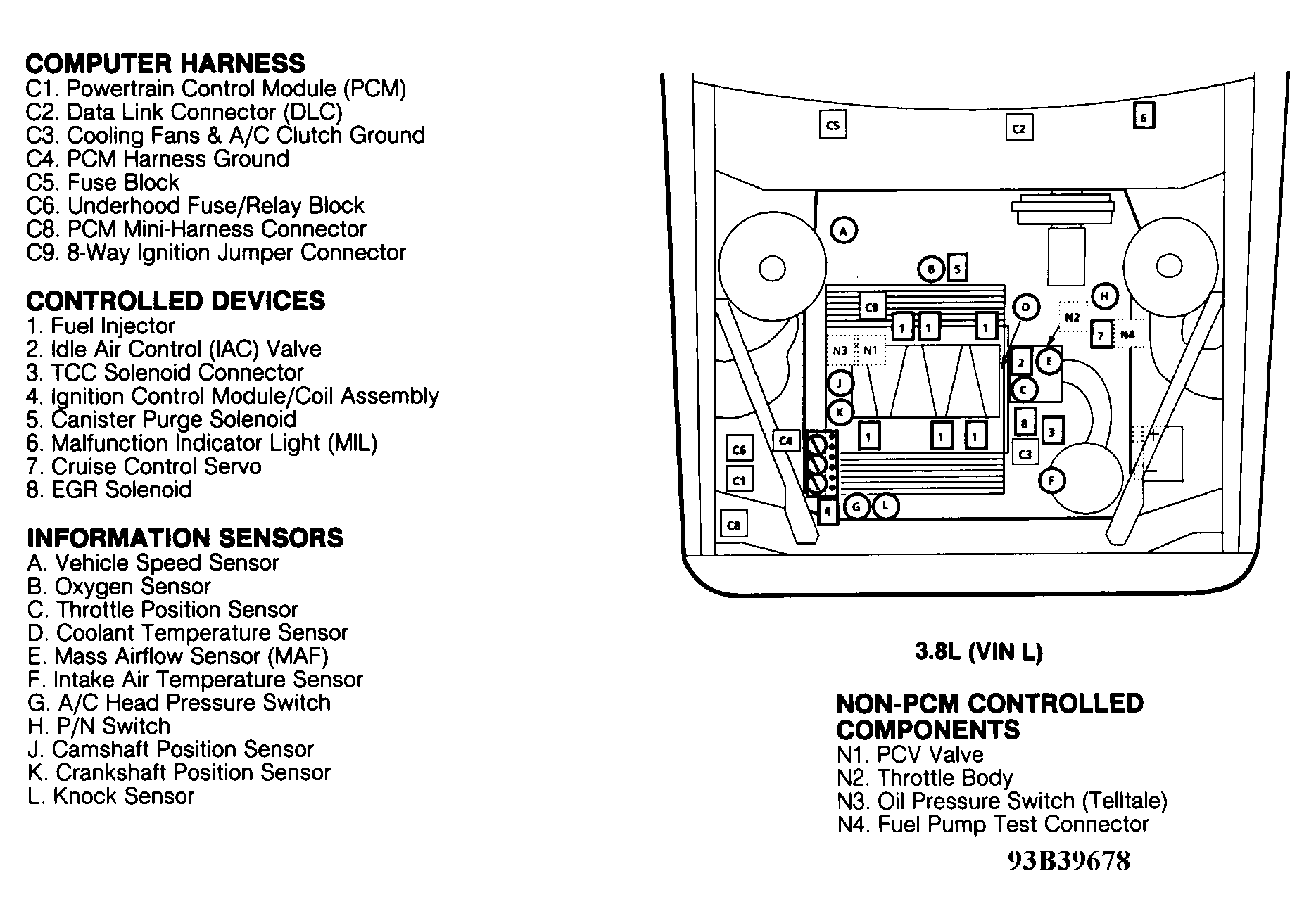

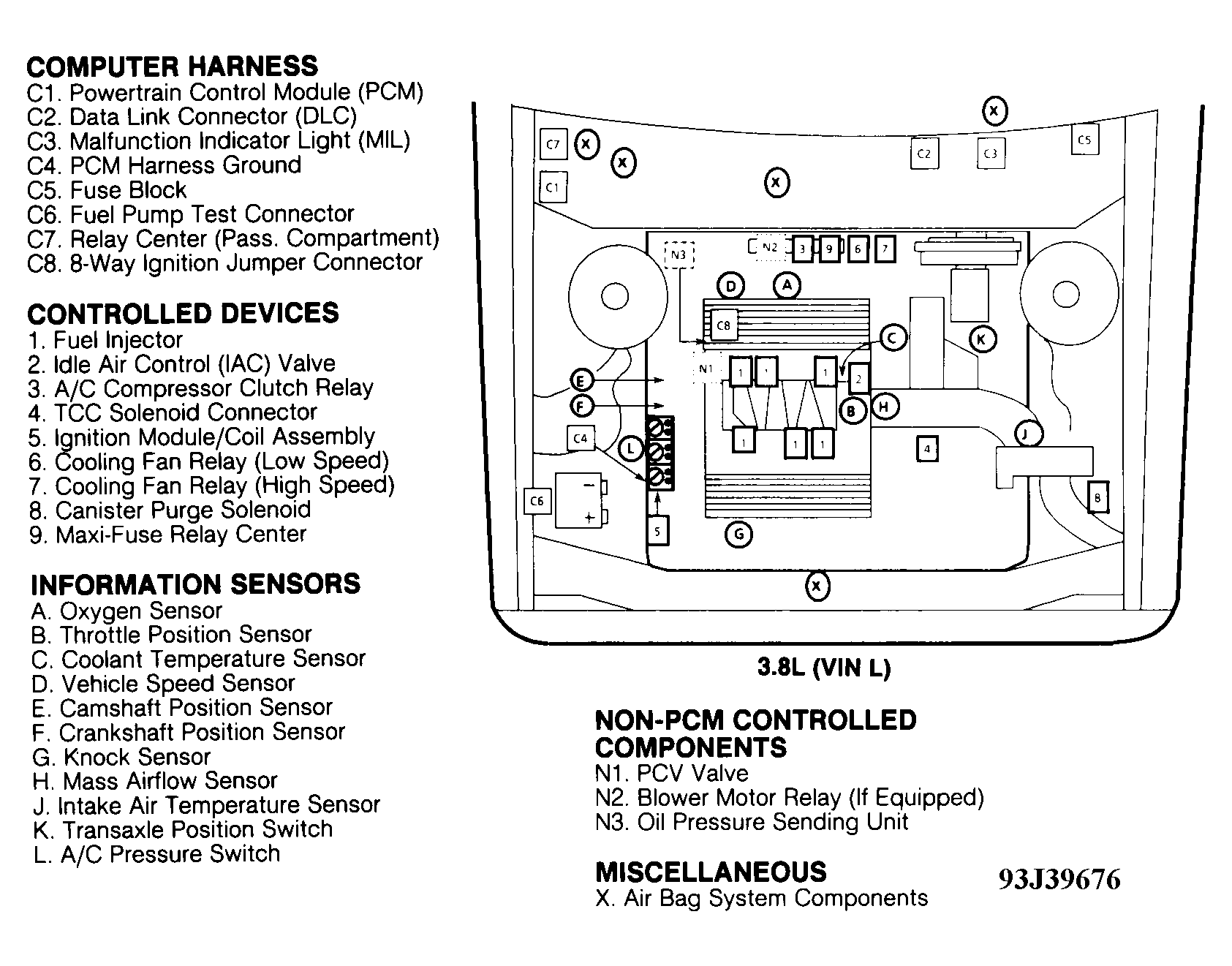

Fig 12: Component Locations (3.8L VIN L - "W" Body)

Courtesy of GENERAL MOTORS CORP.

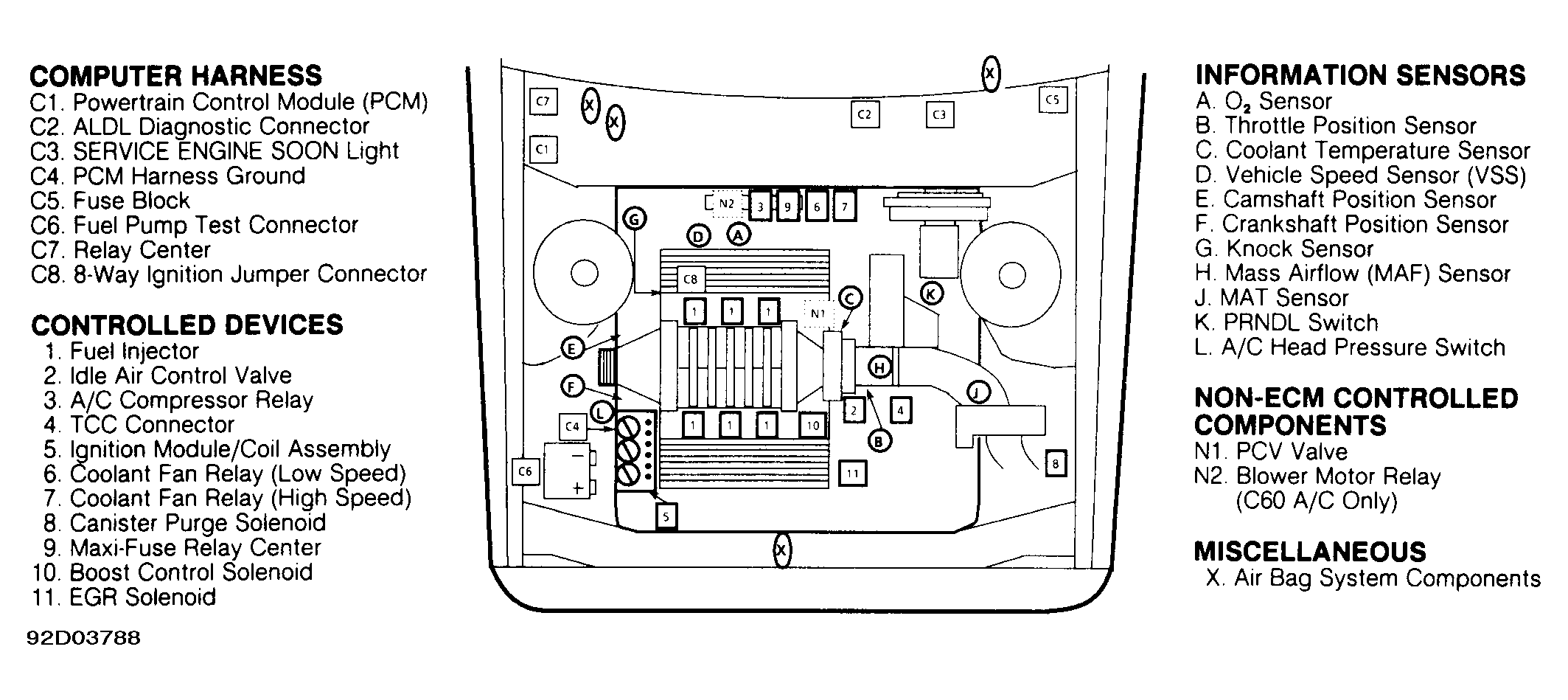

Fig 13: Component Locations (3.8L VIN 1 - "C" & "H" Bodies)

Courtesy of GENERAL MOTORS CORP.

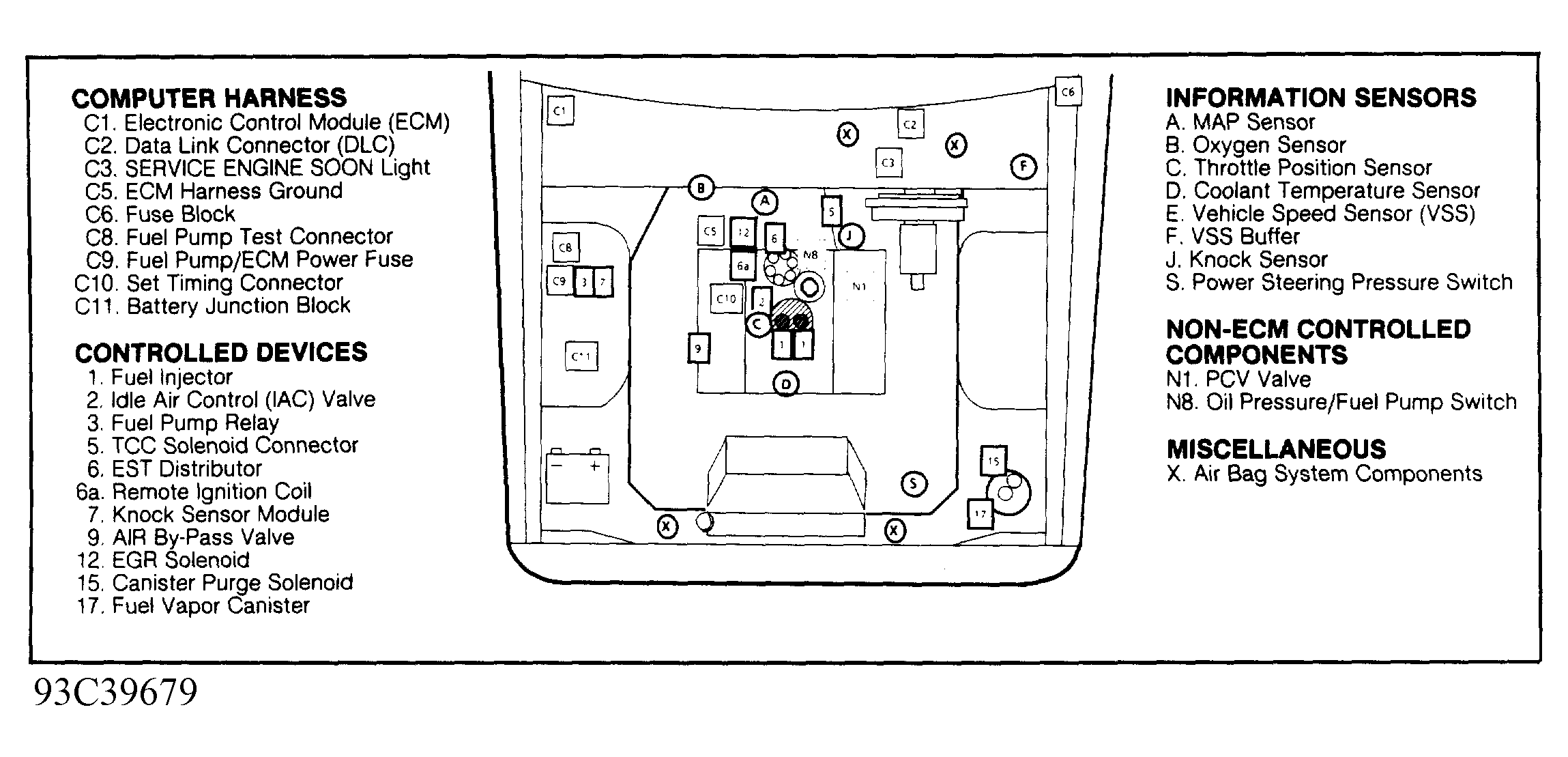

Fig 14: Component Locations (4.3L VIN Z - "B" Body)

Courtesy of GENERAL MOTORS CORP.
