Diagnostic Aids

If Code 39 is stored in memory and no problem is found, ensure clutch switch fastener is secure and is not sticking or binding. Clutch and cruise control share the same switch.

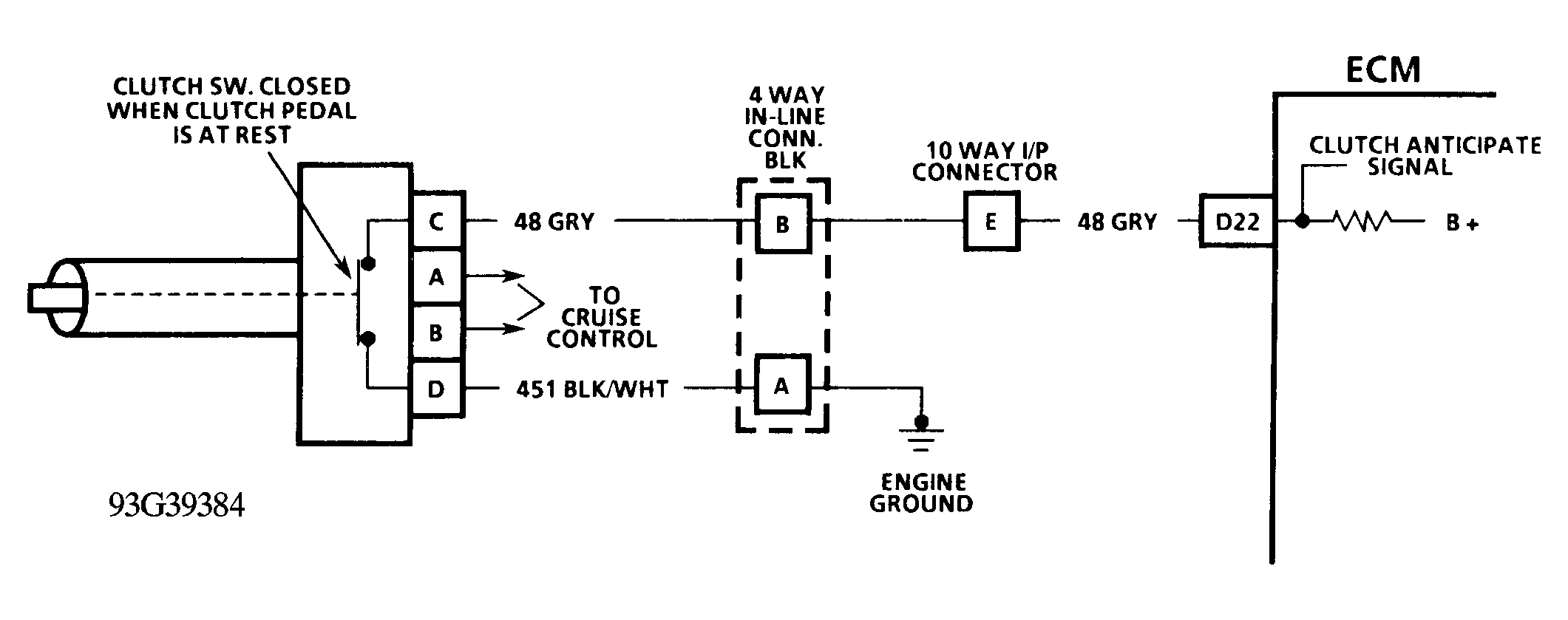

Fig 1: Code 39 Schematic (3.4L "F" Body) Clutch Switch Error

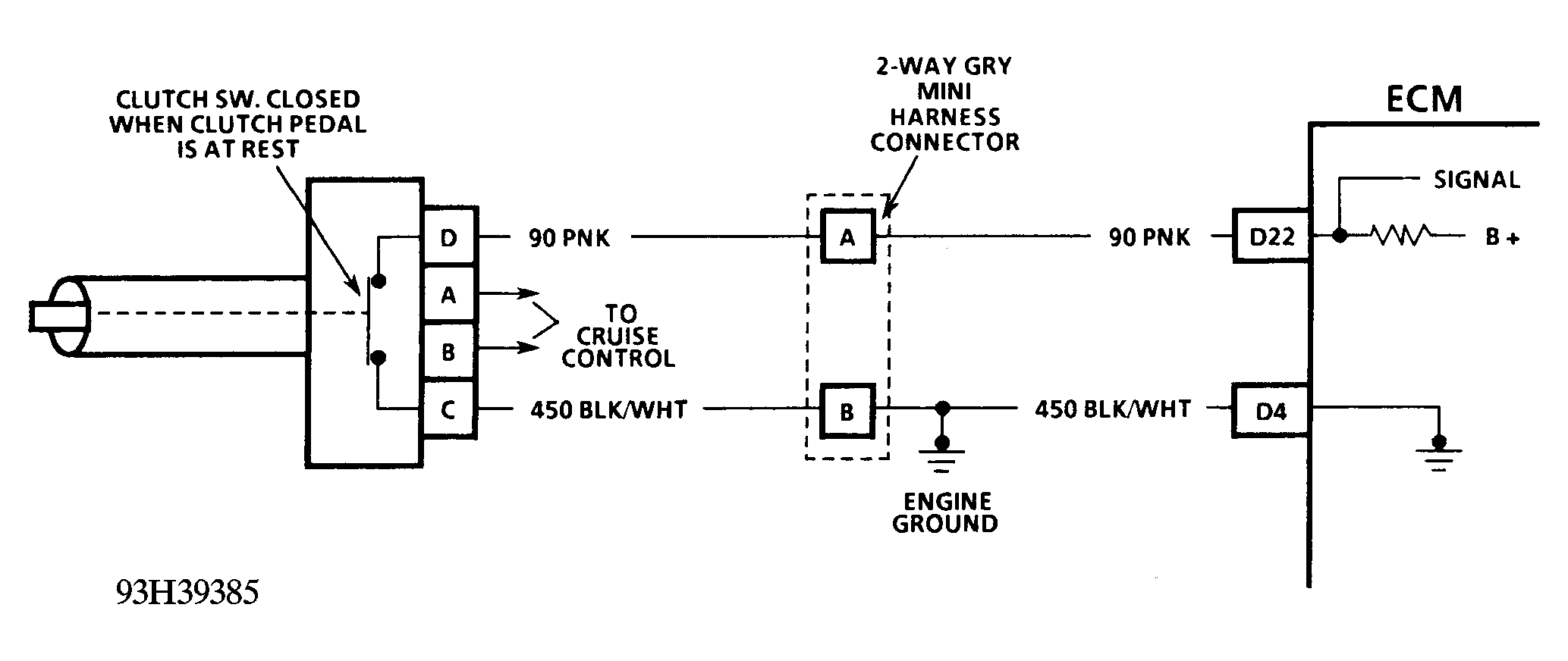

Fig 2: Code 39 Schematic (3.4L "W" Body) Clutch Switch Error

Fig 3: Code 39 Flow Chart (3.4L "F" Body & 3.4L "W" Body) Clutch Switch Error
