Diagnostic Aids

Engine should be idling while monitoring QDM status. Using scan tester, monitor QDM status while moving related harness connectors, including ECM harness. If the failure is induced, a fault will status while moving related harness connectors, including ECM harness. If the failure is induced, a fault will appear on scan tester. This can help to isolate intermittent problems. If code persists with no apparent problems, replace ECM.

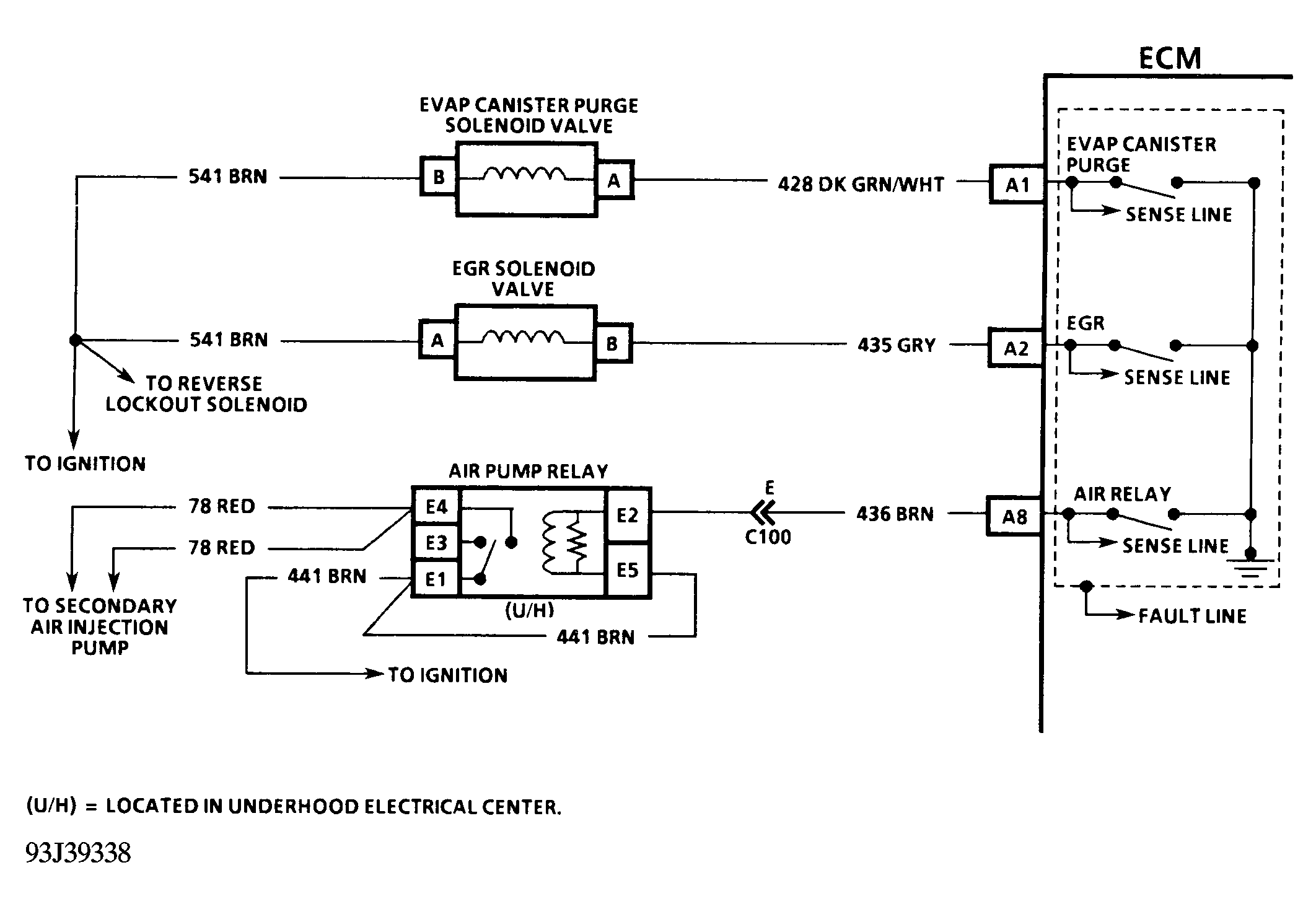

Fig 1: Code 26 Schematic (5.7L "F" Body) Quad-Driver No. 1 Error
G93J39338

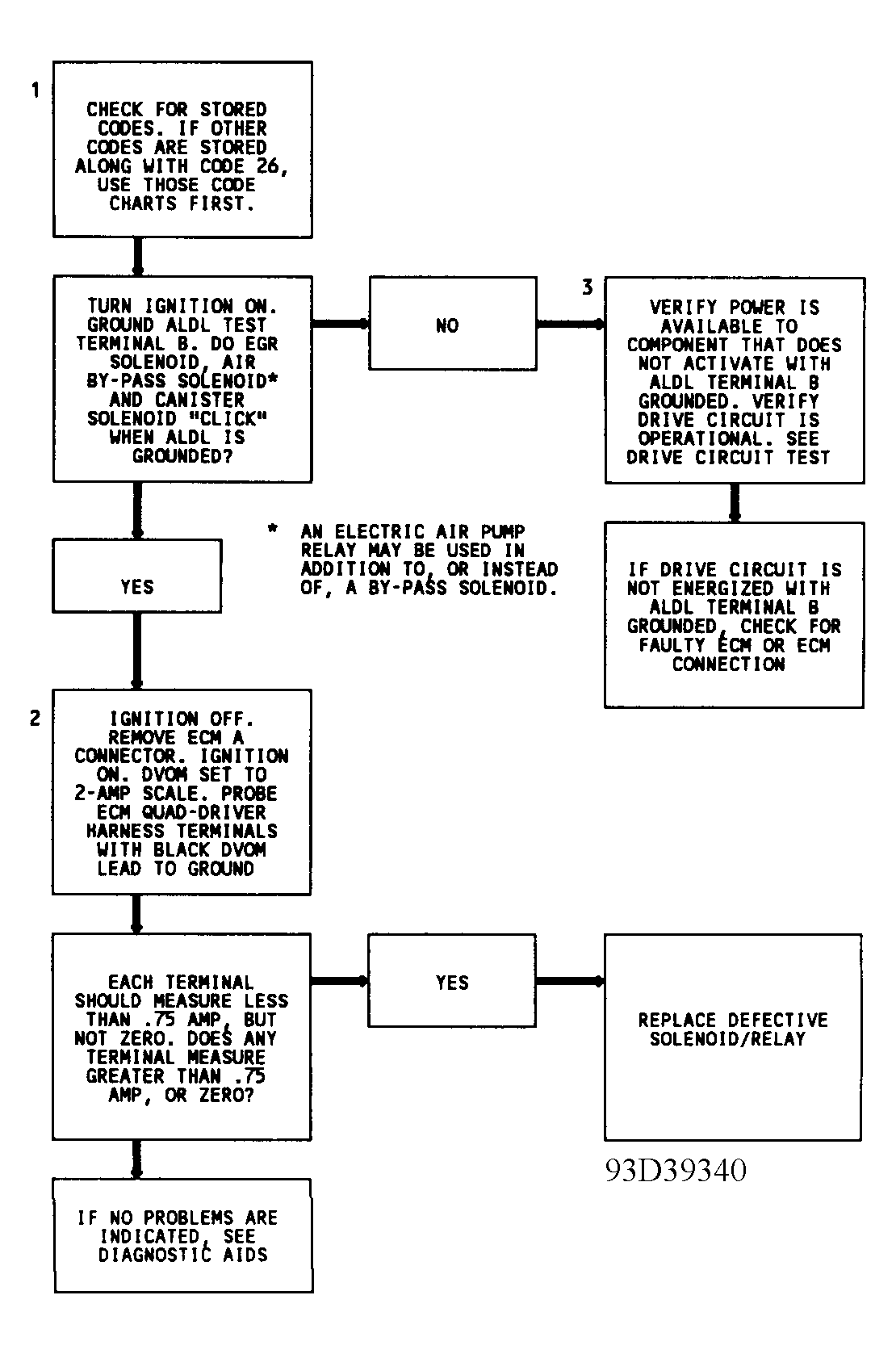

Fig 2: Code 26 Flow Chart (5.7L "F" Body) Quad-Driver No. 1 Error
G93D39340
