Caster Adjustment

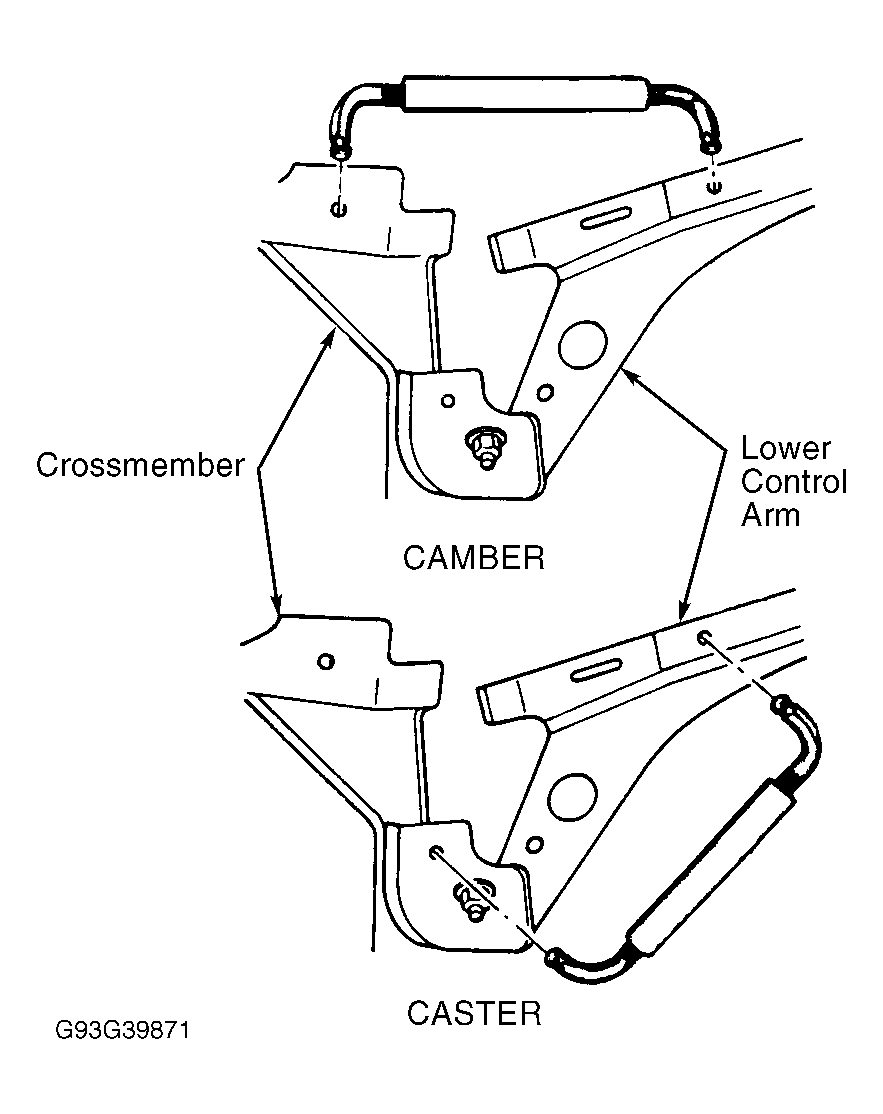

Loosen nuts on bolts securing lower control arm to crossmember. Attach Turnbuckle Adjuster (J-38658) to crossmember and lower control arm. See Figure . Rotate turnbuckle clockwise to increase caster or counterclockwise to decrease caster. Adjust caster to specification. See ALIGNMENT SPECIFICATIONS  table. Tighten nuts to specification. See TORQUE SPECIFICATIONS  . Remove adjuster.
