Torque Converter Clutch (TCC)

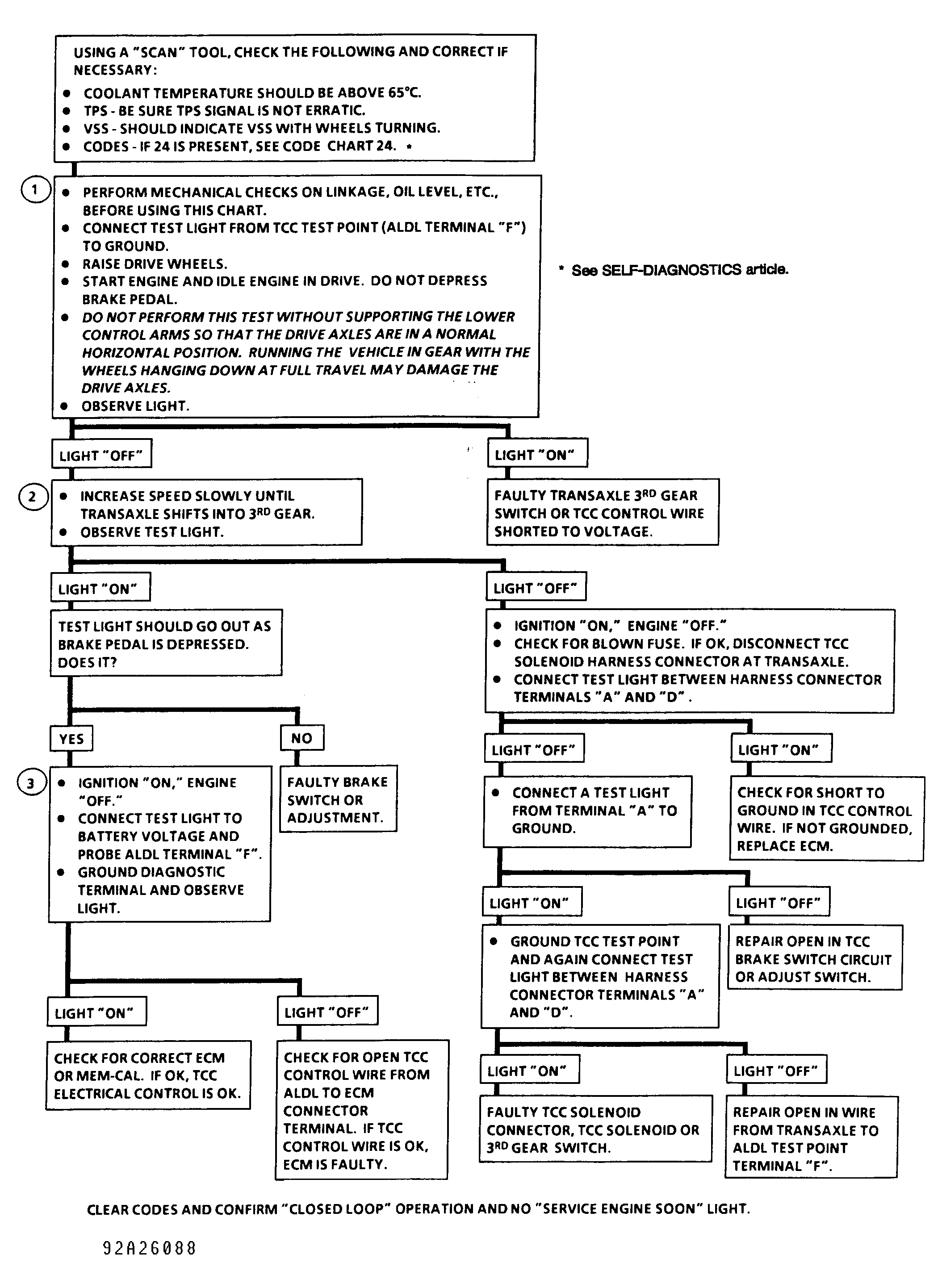

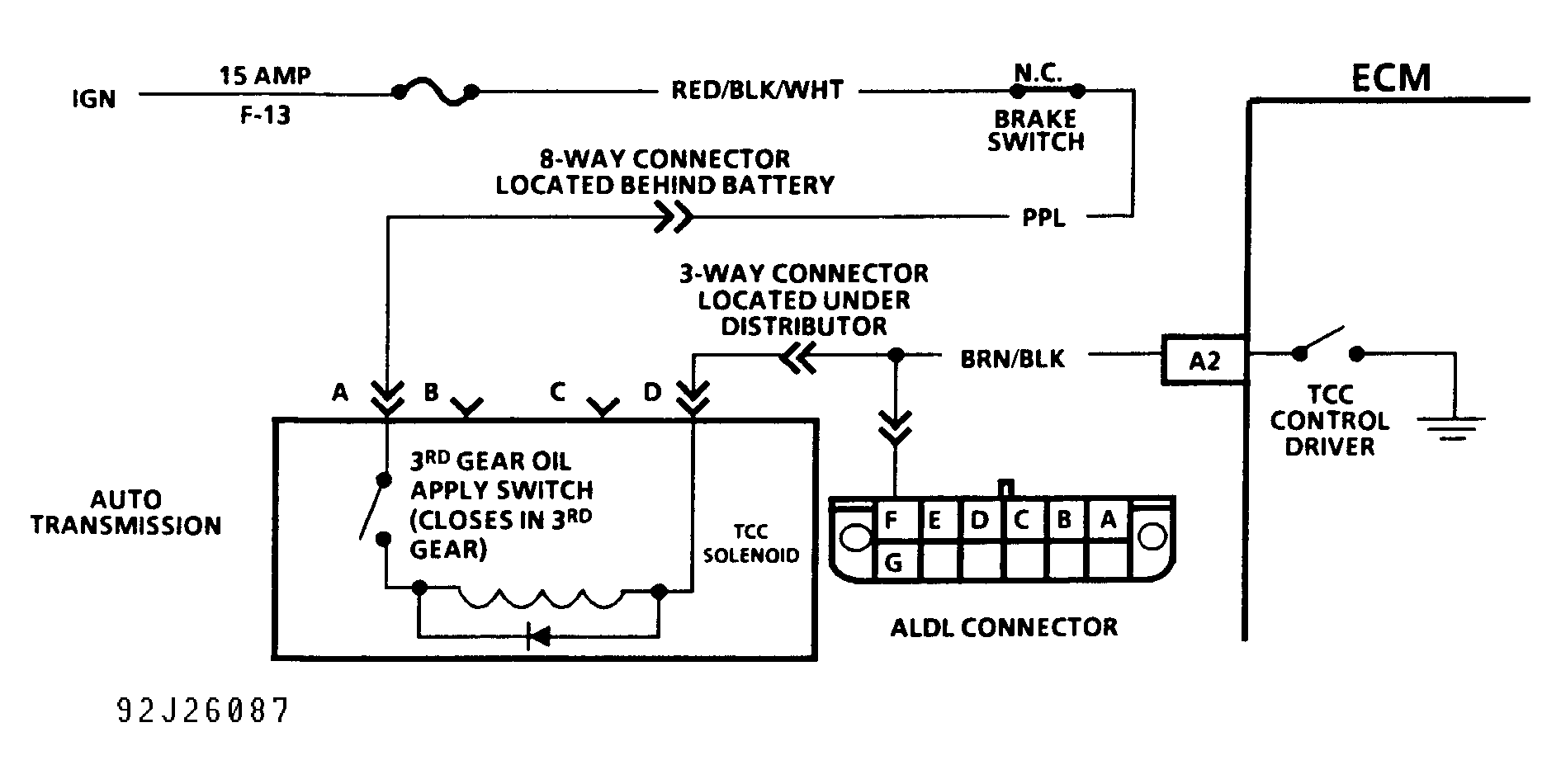

Use circuit wiring diagram and ELECTRICAL DIAGNOSIS CHART C-8A to service system faults. See Figure and Figure .
CAUTION:
DO NOT
perform TCC diagnosis without supporting the lower control arms so that the drive axles are in a normal horizontal position. Running the vehicle in gear with the wheels hanging down at full travel may damage the drive axles.
