Engine Cranks But Will Not Start

Check the following:

• Continuous Battery Fuse Or Fusible Link
• ECM Ignition Fuse Open
• Battery Feed To ECM Open
• Ignition Feed To ECM Open
• Poor Connection At ECM

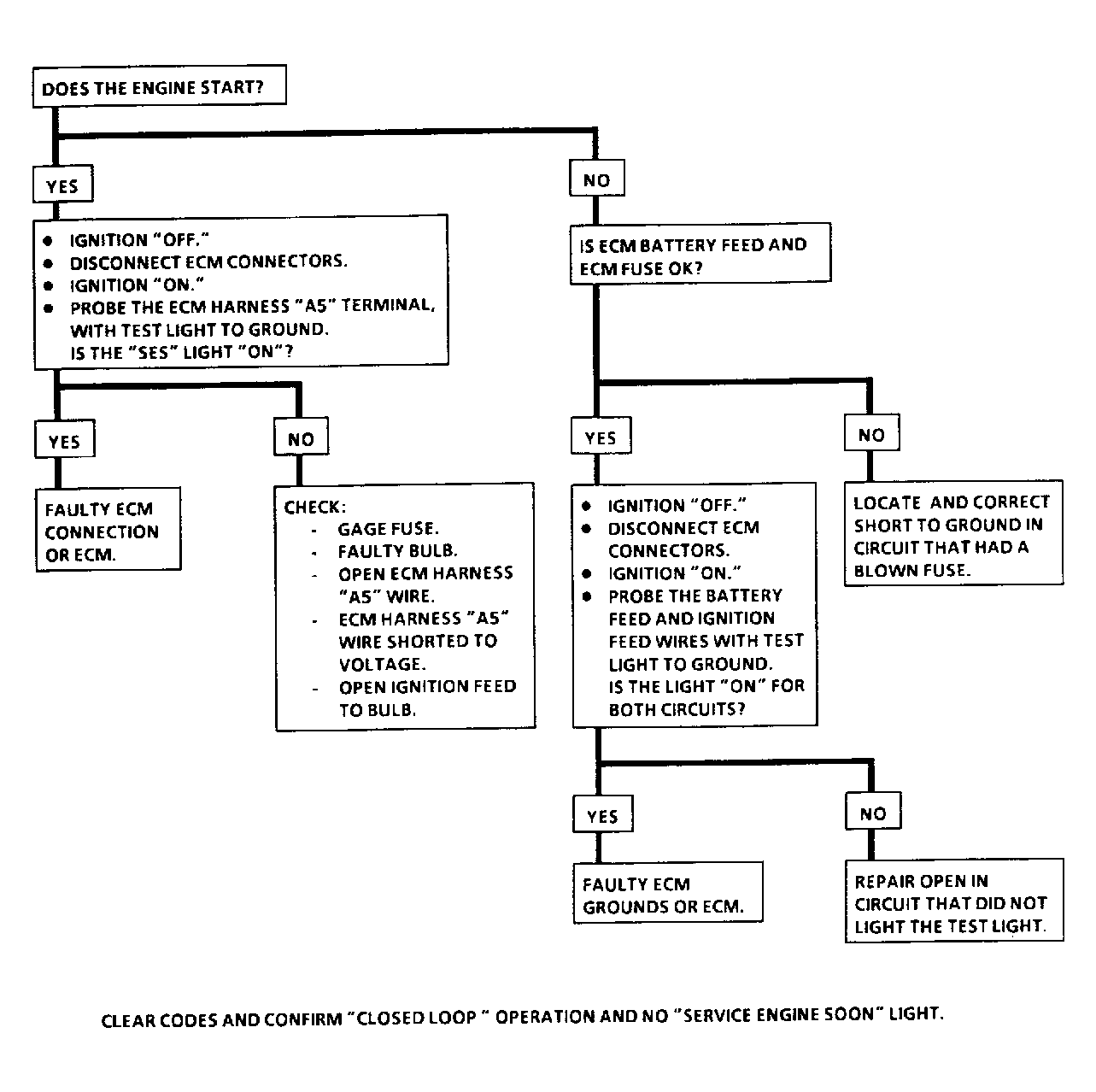

Fig 1: Chart A-1 Flow Chart - No Check Engine Light

Courtesy of GENERAL MOTORS CORP.
