Service Point Locations

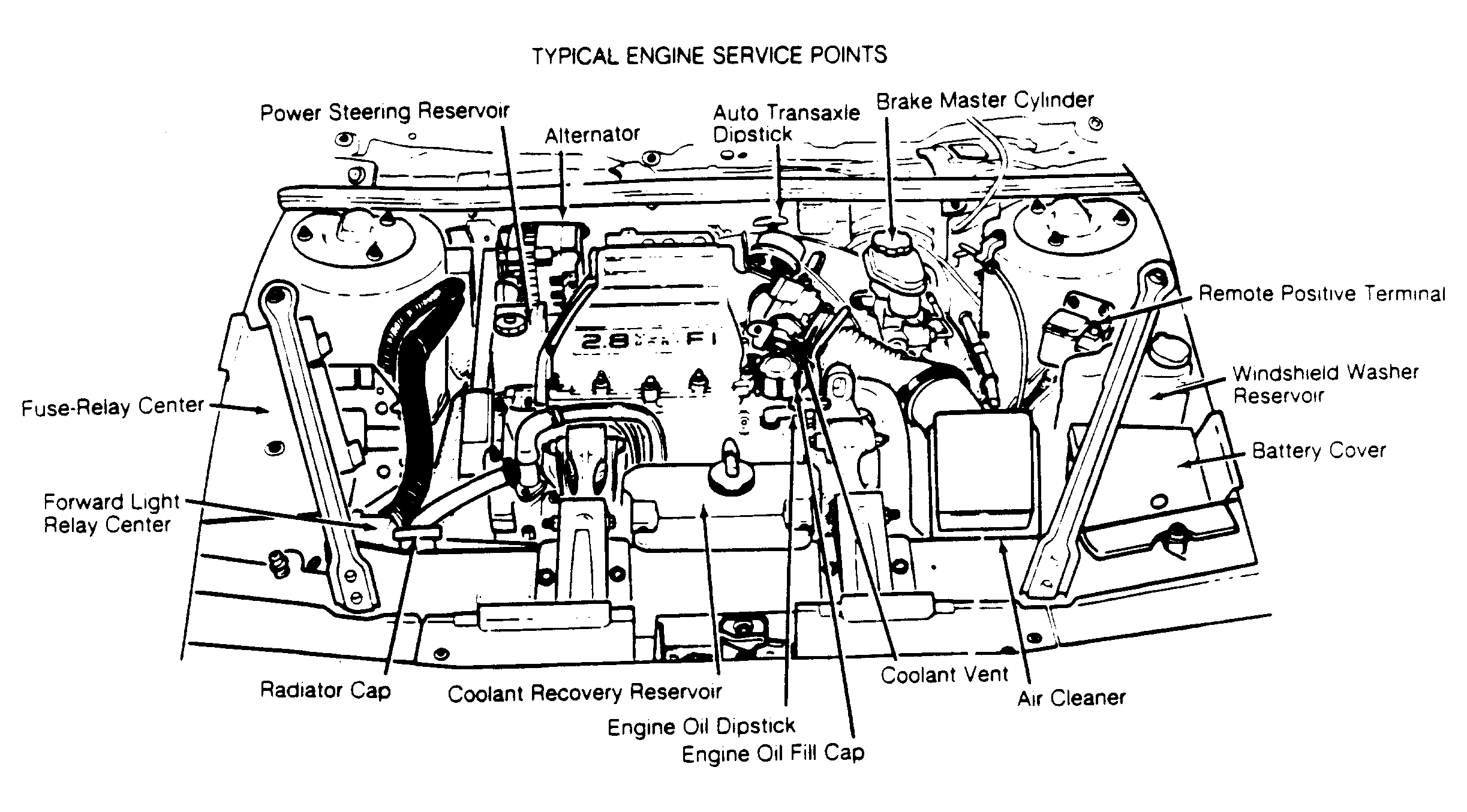

Fig 1: Service Point Locations (1988-89 2.8L V-6)

Courtesy of GENERAL MOTORS CORP.

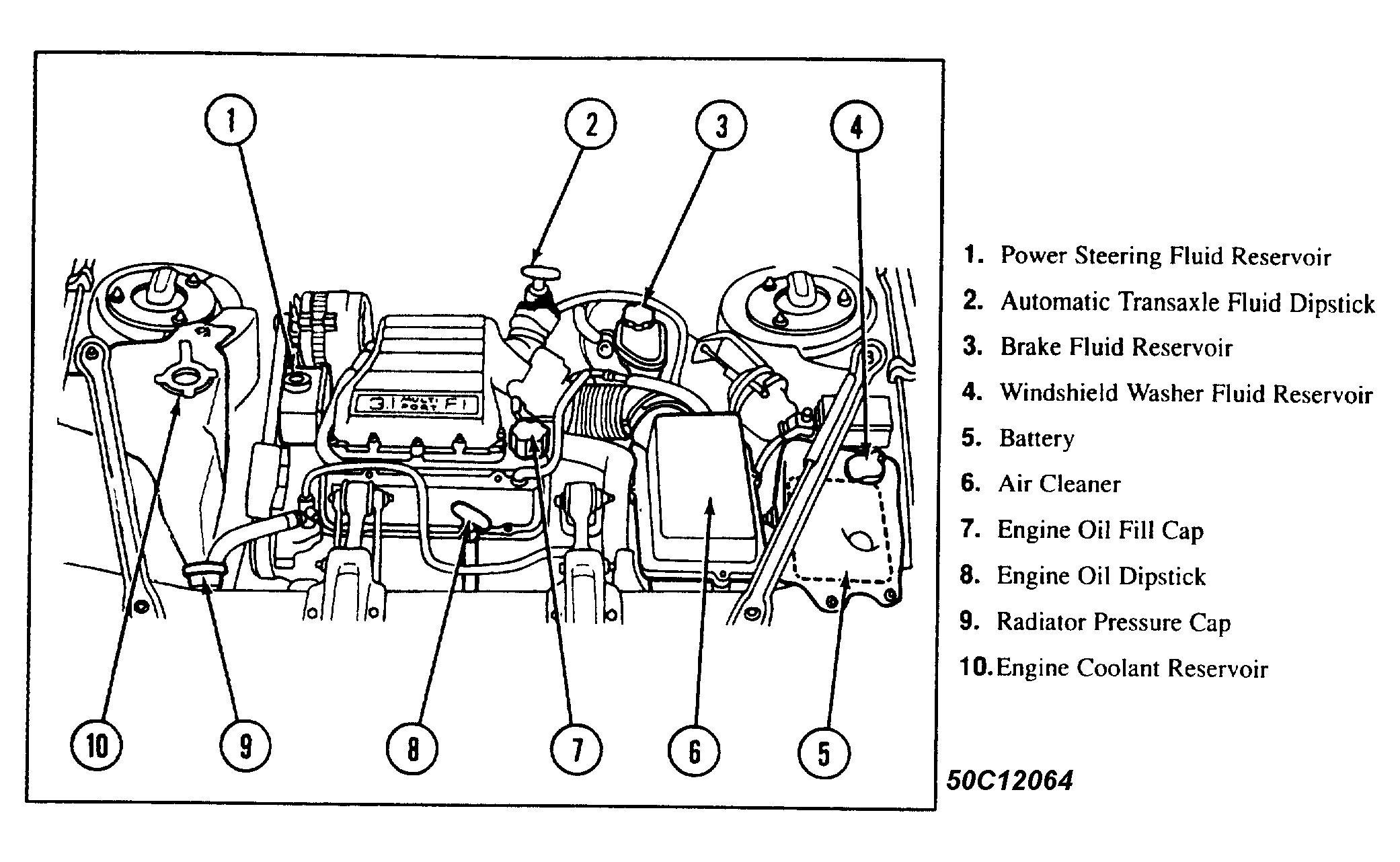

Fig 2: Service Point Locations (1989-93 3.1L V-6 Typical)

Courtesy of GENERAL MOTORS CORP.

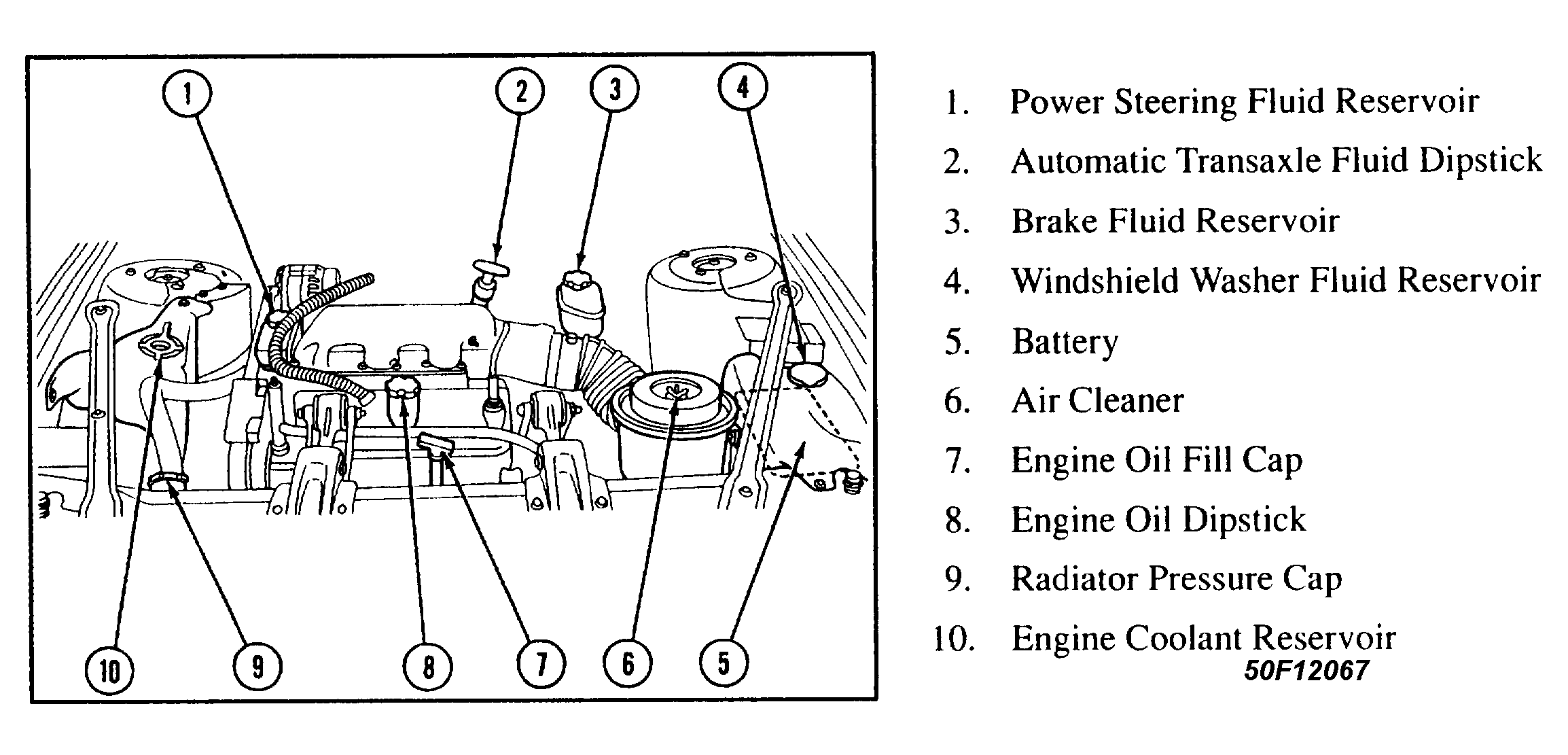

Fig 3: Service Point Locations (1994-96 3.1L V-6)

Courtesy of GENERAL MOTORS CORP.

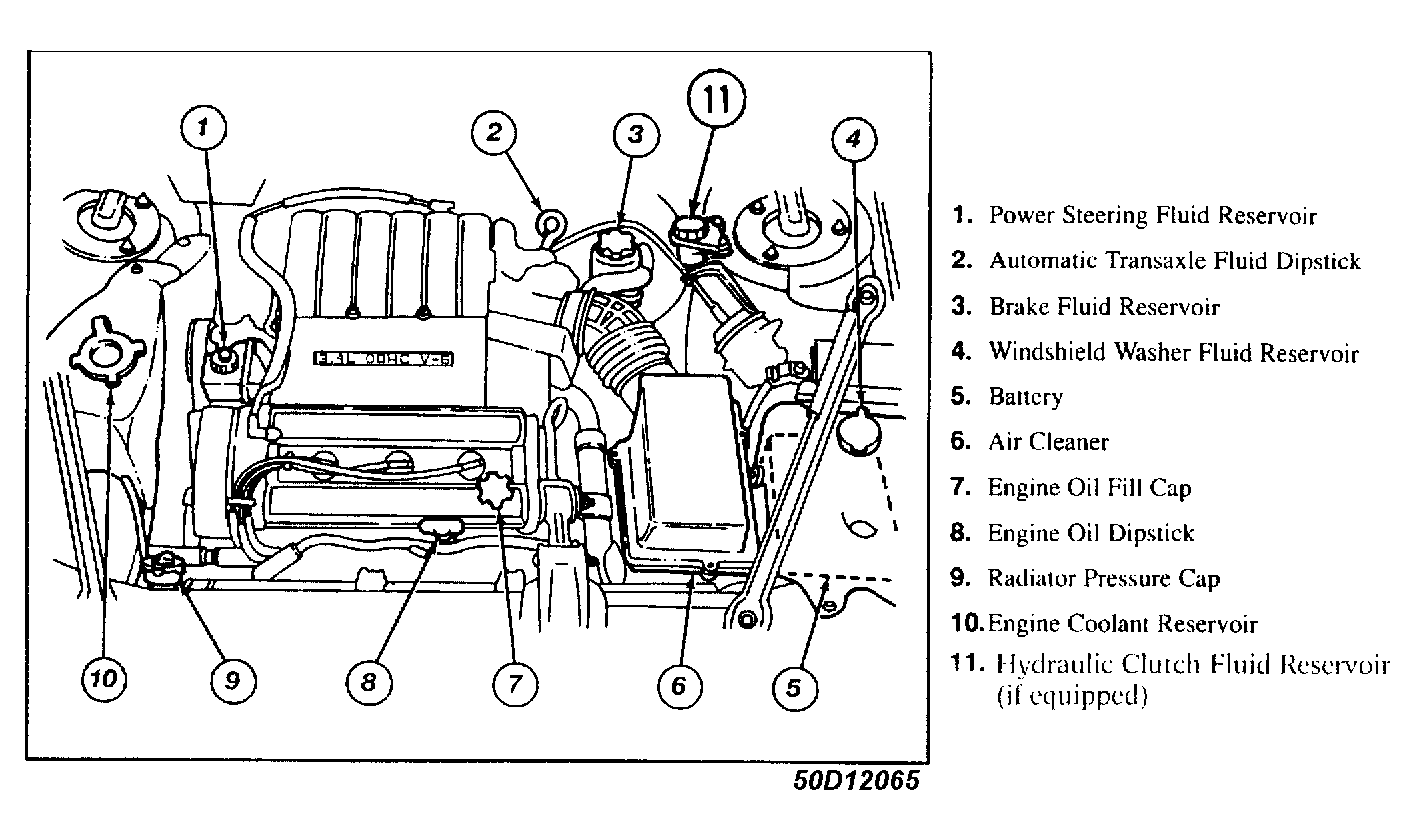

Fig 4: Service Point Locations (1991-96 3.4L V-6 DOHC)

Courtesy of GENERAL MOTORS CORP.

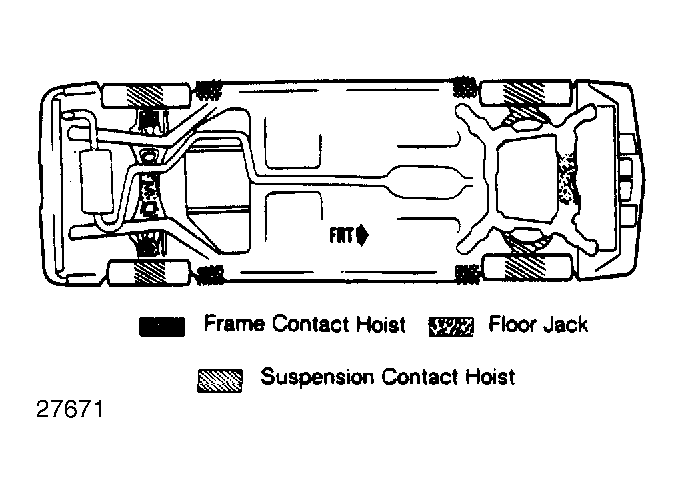

Fig 5: Lift Point Locations

Courtesy of GENERAL MOTORS CORP.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT section.
