Body Control Module (BCM) C2

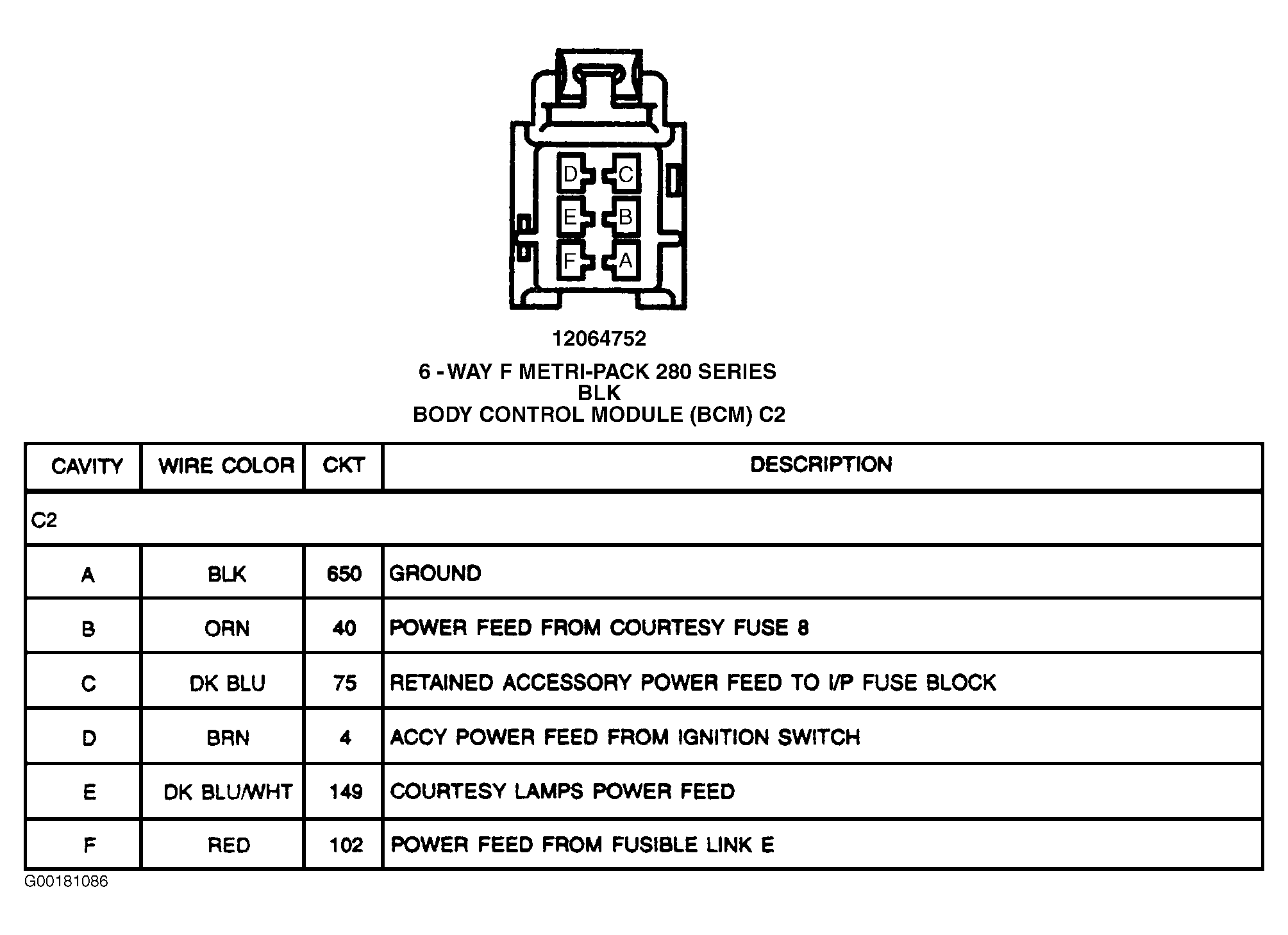

Fig 1: Body Control Module (BCM) C2 - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
