C100 To C405: C105

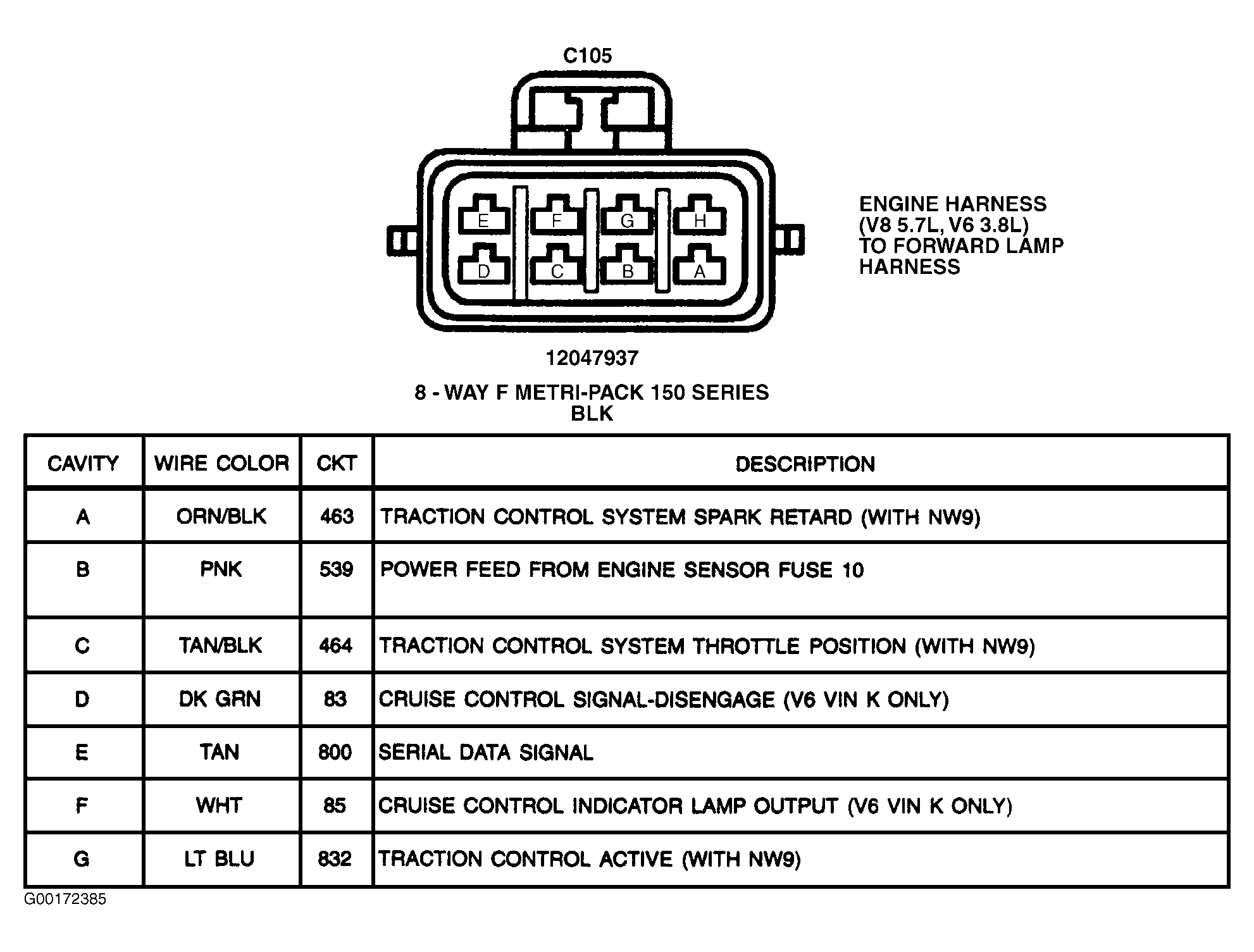

Fig 1: C105 - 8-Pin Connector (Black)

G00172385

Courtesy of GENERAL MOTORS CORP.
