C100 To C405: C215

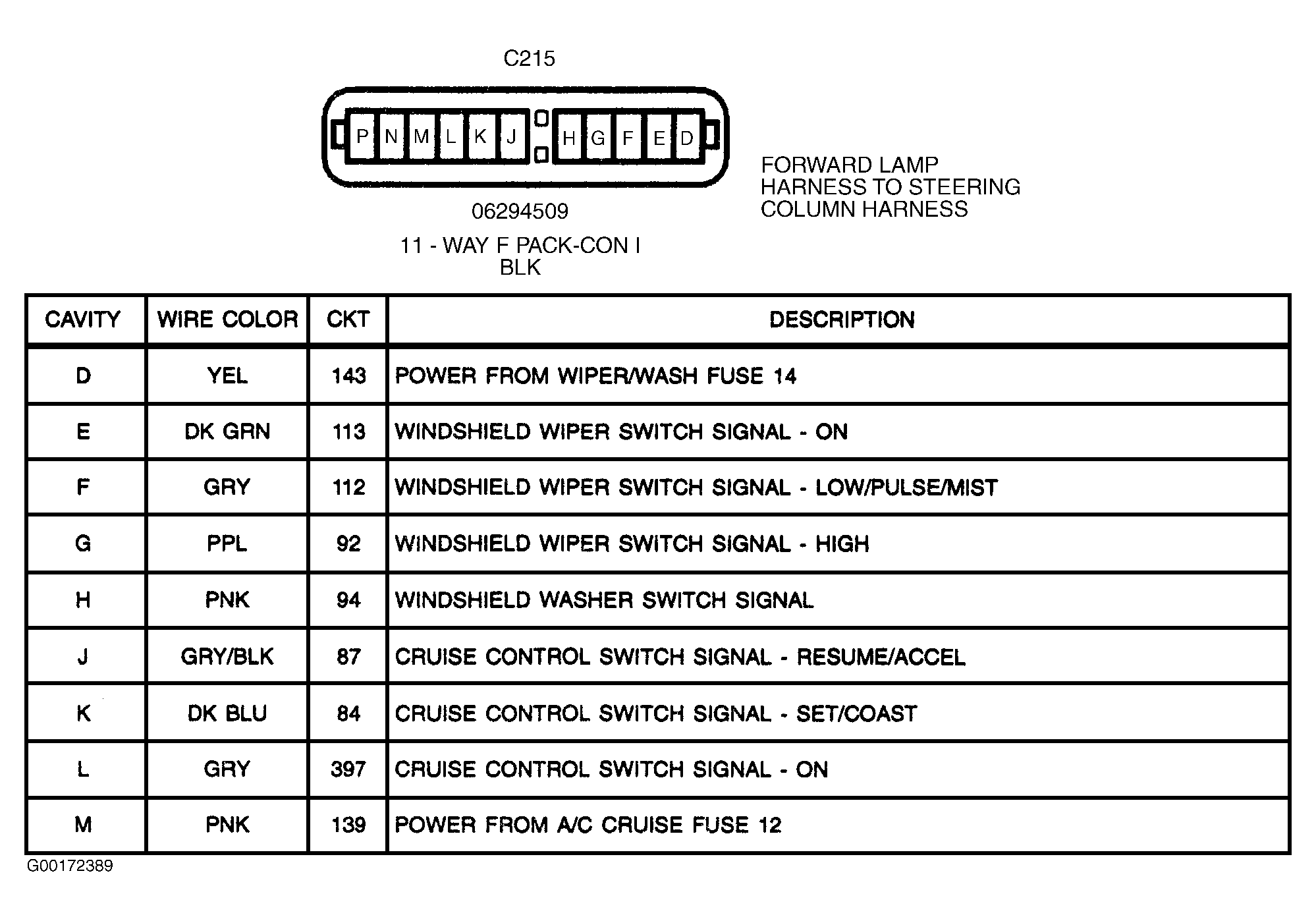

Fig 1: C215 - 11-Pin Connector (Black)

G00172389

Courtesy of GENERAL MOTORS CORP.
