C100 To C405: C230

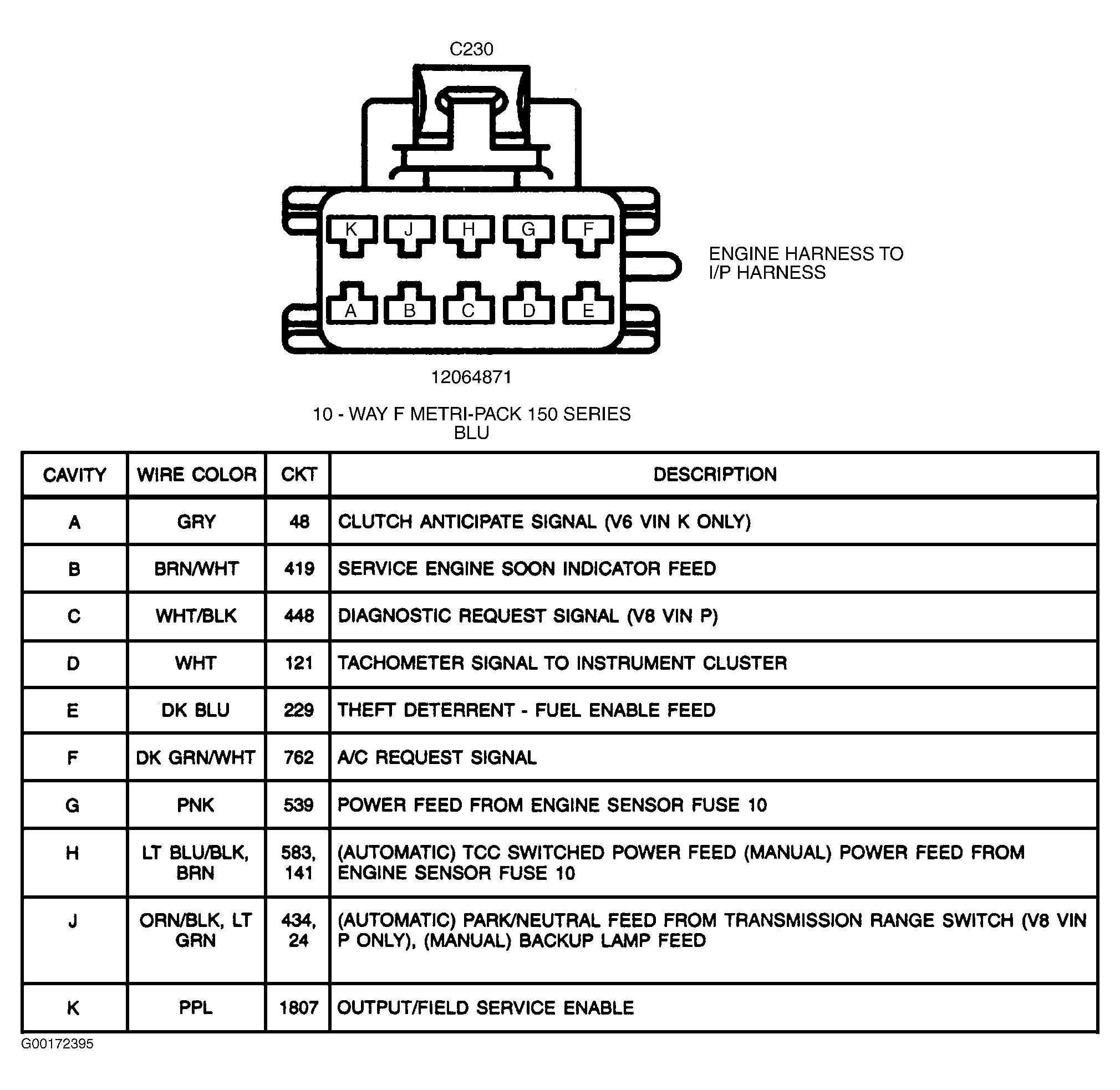

Fig 1: C230 - 10-Pin Connector (Blue)

G00172395

Courtesy of GENERAL MOTORS CORP.
