Electronic Brake Control Module (EBCM) C2 & Electronic Brake & Traction Control Module C2

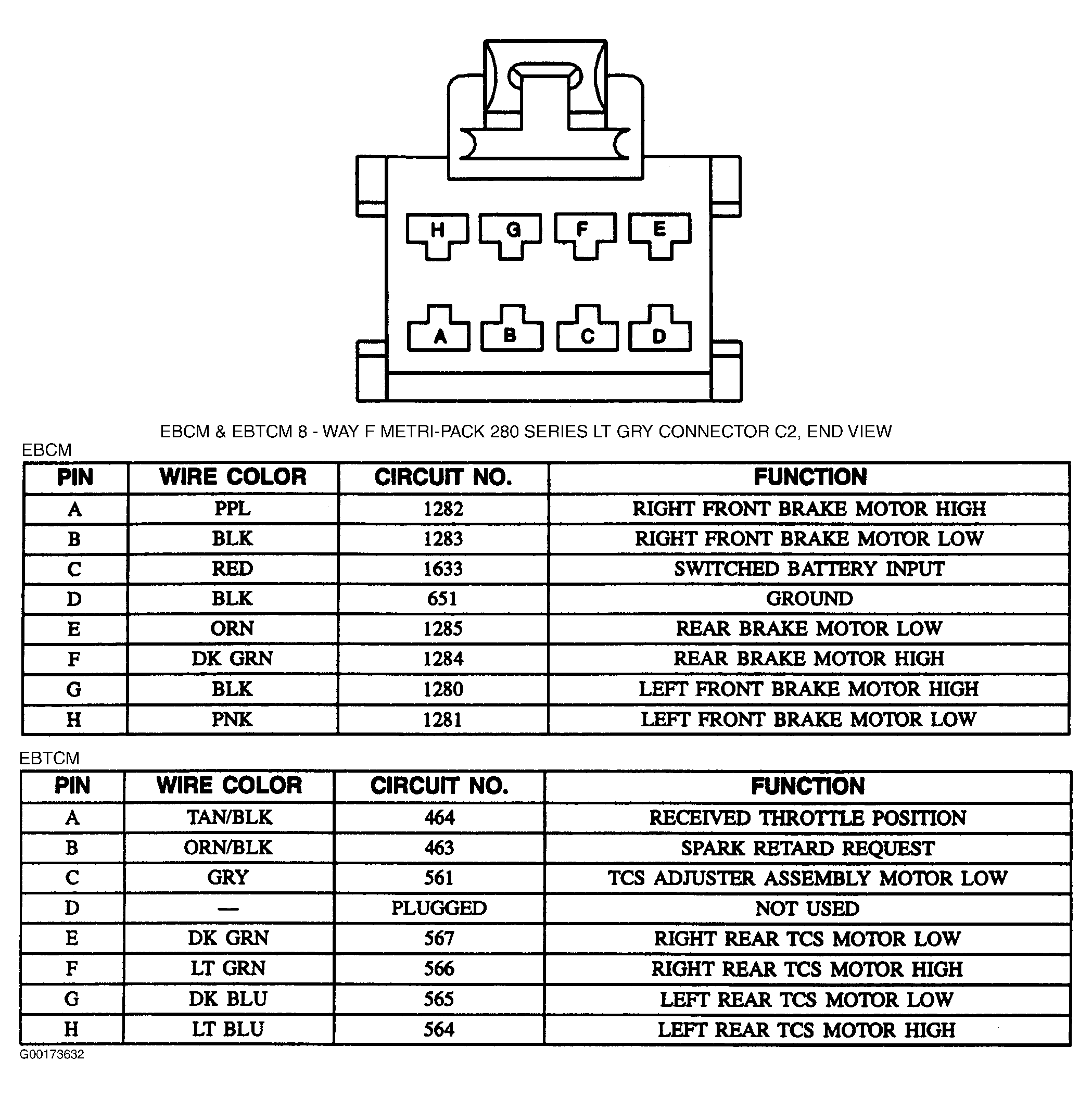

Fig 1: Electronic Brake Control Module (EBCM) C2 & Electronic Brake & Traction Control Module C2 - 8-Pin Connector (Light Gray) & 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
