Inflatable Restraint Diagnostic Energy Reserve Module (SDM)

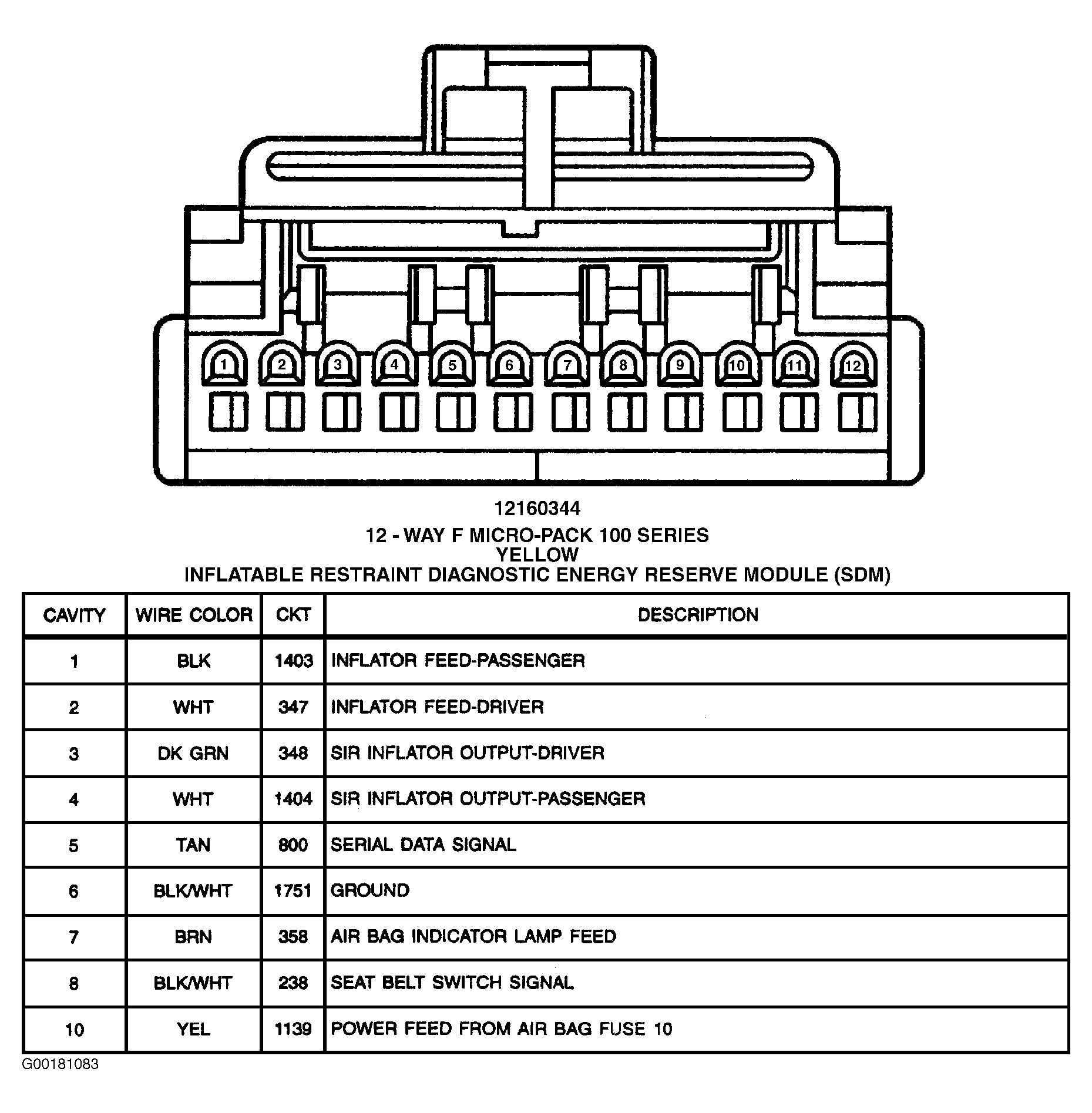

Fig 1: Inflatable Restraint Diagnostic Energy Reserve Module (SDM) - 10-Pin Connector (Yellow)
G00181083Courtesy of GENERAL MOTORS CORP.
